Anyone have the PCB pad layout (pin spacing) of a B9A Noval PCB-mount tube socket?

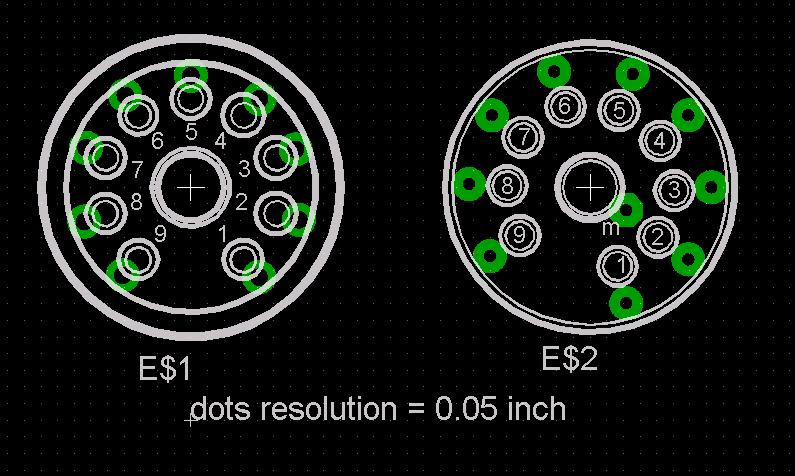

K Kashmire Member Joined 2003 2005-02-01 9:12 pm #1 2005-02-01 9:12 pm #1 Anyone have the PCB pad layout (pin spacing) of a B9A Noval PCB-mount tube socket? ••• More options Share moamps diyAudio Member Joined 2002 moxtone.com 2005-02-01 10:58 pm #2 2005-02-01 10:58 pm #2 Noval PCB layouts from Eagle: Attachments tube1.jpg 74.9 KB · Views: 448 ••• More options Share K Kashmire Member Joined 2003 2005-02-01 11:10 pm #3 2005-02-01 11:10 pm #3 Thanks. If anyone has the X-Y positions of the pads, I'd appreciate it. Otherwise, I'll start drawing X-Ys from the Eagle pads. ••• More options Share moamps diyAudio Member Joined 2002 moxtone.com 2005-02-01 11:49 pm #4 2005-02-01 11:49 pm #4 .. Attachments tube1.jpg 35.3 KB · Views: 369 ••• More options Share K Kashmire Member Joined 2003 2005-02-02 12:49 am #5 2005-02-02 12:49 am #5 YES! Many thanks to you. I appreciate your very fast response. ••• More options Share Show hidden low quality content Status This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button. Share: Facebook Twitter Reddit Pinterest Tumblr WhatsApp Email Share Link
