M morfeas Member Joined 2003 audio.dynatech.gr 2004-11-19 9:35 am #1 2004-11-19 9:35 am #1 Here is my new SE. I had to use a single PS that was left over from a previous implementation which didn't perform nice at all. Any comments welcome. This is my first design from scratch so be kind. The prototype measures close to the simulation. Attachments schem.jpg 60.3 KB · Views: 1,654 M morfeas Member Joined 2003 audio.dynatech.gr 2004-11-19 9:36 am #2 2004-11-19 9:36 am #2 Freq responce. The prototype measures better than the simulation at high frequences. Attachments freq.jpg 77.8 KB · Views: 1,157 M Mikael Abdellah Member Joined 2003 2004-11-19 10:54 am #3 2004-11-19 10:54 am #3 WOW! That looks really good. It would be interesting to measure my amp at home. Good work, morfeas! 🙂 Geek Member Joined 2004 2004-11-19 12:55 pm #4 2004-11-19 12:55 pm #4 Yay! A mu-gain-stage 😀 Awesome dude! 🙂 Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link

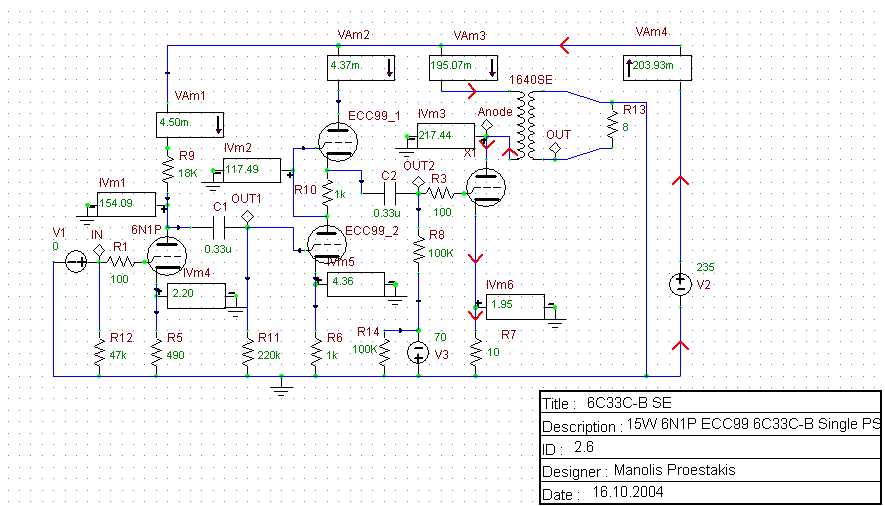

Here is my new SE. I had to use a single PS that was left over from a previous implementation which didn't perform nice at all. Any comments welcome. This is my first design from scratch so be kind. The prototype measures close to the simulation.

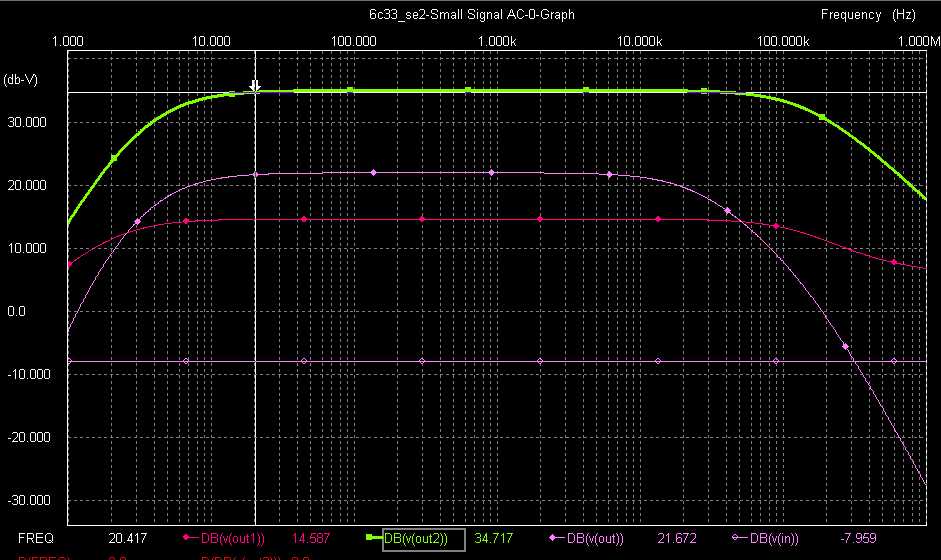

M morfeas Member Joined 2003 audio.dynatech.gr 2004-11-19 9:36 am #2 2004-11-19 9:36 am #2 Freq responce. The prototype measures better than the simulation at high frequences. Attachments freq.jpg 77.8 KB · Views: 1,157 M Mikael Abdellah Member Joined 2003 2004-11-19 10:54 am #3 2004-11-19 10:54 am #3 WOW! That looks really good. It would be interesting to measure my amp at home. Good work, morfeas! 🙂 Geek Member Joined 2004 2004-11-19 12:55 pm #4 2004-11-19 12:55 pm #4 Yay! A mu-gain-stage 😀 Awesome dude! 🙂 Status Not open for further replies. Share: Facebook X (Twitter) LinkedIn Reddit Pinterest Tumblr WhatsApp Email Link
M Mikael Abdellah Member Joined 2003 2004-11-19 10:54 am #3 2004-11-19 10:54 am #3 WOW! That looks really good. It would be interesting to measure my amp at home. Good work, morfeas! 🙂 Geek Member Joined 2004 2004-11-19 12:55 pm #4 2004-11-19 12:55 pm #4 Yay! A mu-gain-stage 😀 Awesome dude! 🙂 Status Not open for further replies.
WOW! That looks really good. It would be interesting to measure my amp at home. Good work, morfeas! 🙂
Geek Member Joined 2004 2004-11-19 12:55 pm #4 2004-11-19 12:55 pm #4 Yay! A mu-gain-stage 😀 Awesome dude! 🙂
