TDA2705(P):
1 WSAB Word select I2S input
2 CLAB Clock I2S input
3 DAAB Data I2S input
4 EFAB Error flag
5 FS44 Sampling frequency input
6 SCAB Subcode clock
7 SDAB Subcode data
8 Vss Ground
9 XIN Crystal oscillator input
10 XOUT Crystal oscillator output
11 XSYS System clock output
12 TESTB Test input
13 DOBM Digital audio output
14 DOEN Digital output enable
15 ATSB Attenuation
16 Vdd Power supply +5V
PCM 2705 is used in Grundig:
CD2
CD3
CLCD6
PCM 3522 is used in Philips:
CD624
CD824
CD850II
CD930
CD931
CD940
CD951
...
Again, that's all I have.
/Hugo🙂
1 WSAB Word select I2S input
2 CLAB Clock I2S input
3 DAAB Data I2S input
4 EFAB Error flag
5 FS44 Sampling frequency input
6 SCAB Subcode clock
7 SDAB Subcode data
8 Vss Ground
9 XIN Crystal oscillator input
10 XOUT Crystal oscillator output
11 XSYS System clock output
12 TESTB Test input
13 DOBM Digital audio output
14 DOEN Digital output enable
15 ATSB Attenuation
16 Vdd Power supply +5V
PCM 2705 is used in Grundig:
CD2
CD3
CLCD6
PCM 3522 is used in Philips:
CD624
CD824
CD850II
CD930
CD931
CD940
CD951
...
Again, that's all I have.
/Hugo🙂
purer said:
Hi
I have been looking for these a long time
There are no datasheets (anymore). I even contacted Philips Semiconductors (internally, I work at Philips).
I have some typical application scheme's, these may help together with the pinout given below.
I think the 2705 equals the 3523.
They are used in Marantz 10, for example. Also CDM12 uses it.
It generates SPDIF from I2S, often used together wioth SAA7310
A Crystal CS8402 can do the same, if I am right
best regards
Re: I want your typical application scheme's
Hello
Send me a mail (offline) with your address, I can send a hardcopy, or eventually scan the relevant parts of the Marantz circuit
regards
purer said:
Hello
Send me a mail (offline) with your address, I can send a hardcopy, or eventually scan the relevant parts of the Marantz circuit
regards
Hello
I have received the schematic.Do you have all schematics of that.I need the PHILIPS CD schematic just yet.
I have received the schematic.Do you have all schematics of that.I need the PHILIPS CD schematic just yet.
Re: Hello
Hi
This is all I have, it is just a typical example
PCF2705 has been used many times tohether with SAA7310. I think all the circuits are the same
What exactly is the problem with your DC player and which type do you have ?
purer said:
Hi
This is all I have, it is just a typical example
PCF2705 has been used many times tohether with SAA7310. I think all the circuits are the same
What exactly is the problem with your DC player and which type do you have ?
mdlover said:
Hi MDLover
This looks like you have a scan taken from a spec, do you have any more info from that same spec ?
Would love to receive a copy
all the best
Hi Guido,

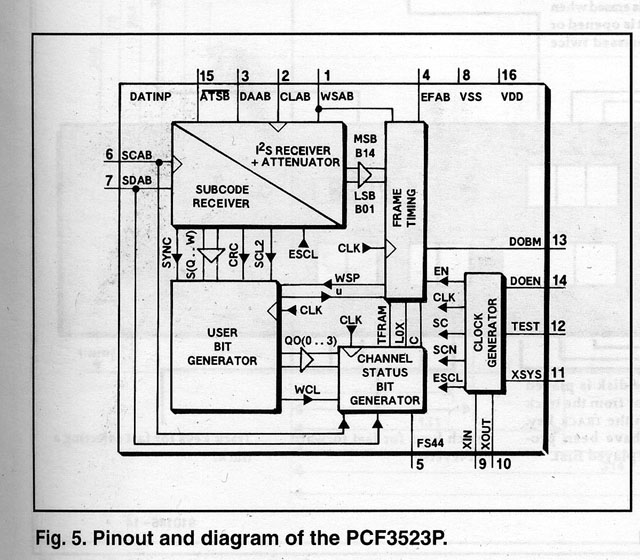

The pic was scanned from an article on "Elektor Electronics" published 1992.
The article was about modifying an Philips CD player (adding SPDIF digital output). That's all I have about this chip. 🙁
Cheers
The pic was scanned from an article on "Elektor Electronics" published 1992.
The article was about modifying an Philips CD player (adding SPDIF digital output). That's all I have about this chip. 🙁
Cheers
on a wide range of PCM decoders the internal parts of PCF2705P and PCF3523P to form a S/P-DIF (DOBM) protocol for an external digital output socket are integrated.
If in cd players are PCM decoders in use without this integrated logic parts (like SAA7310/SAA7210 e. g.), and a digital output was wanted, the above mentioned parts then additional necessary.
Philips CD608/618, Grundig CD35 and various other uses this S/P-DIF transmitter parts.
But I don't understand, why no detailed datasheets from Philips Components/NXP was published until now.
Check out also
Conversion from I2S and similar to DOBM - S/P-DIF Transmitter IC's: Overview wanted
If in cd players are PCM decoders in use without this integrated logic parts (like SAA7310/SAA7210 e. g.), and a digital output was wanted, the above mentioned parts then additional necessary.
Philips CD608/618, Grundig CD35 and various other uses this S/P-DIF transmitter parts.
But I don't understand, why no detailed datasheets from Philips Components/NXP was published until now.
Check out also
Conversion from I2S and similar to DOBM - S/P-DIF Transmitter IC's: Overview wanted
