Culprit : I was constantly bugging Papa about mostly everything , squeezing both question and answer of 42 ….

Consequence : so he in one moment (certainly desperate move ) came to idea that bribe is the way to cope with me ……..


(Fact: Papa is naive ; Do not tell him that simple e-mail addy block is more than sufficient to solve all his ZM related troubles…….. though if he really start using that , we’ll have mass suicide of DiyA Papaland members ……. sometimes I have an impression that e-mail traffic to Pa is almost big as regular posting on forum )


So – he asked me what do I want , from pretty extensive list of things , he’s working on lately;


As usual , I said – nuttin’ , frankly not needing anything , being 2 (3, 4, 5) years late in things obligated (from various reasons) to build for my self …..
But – after repeated reading of his proposition , greediness started getting better of me , and I asked him for few more words about DEFiSIT ; when he replied , I instantly had impression of (my absolutely fave) M2 , with heavy twist(s)
so ……..

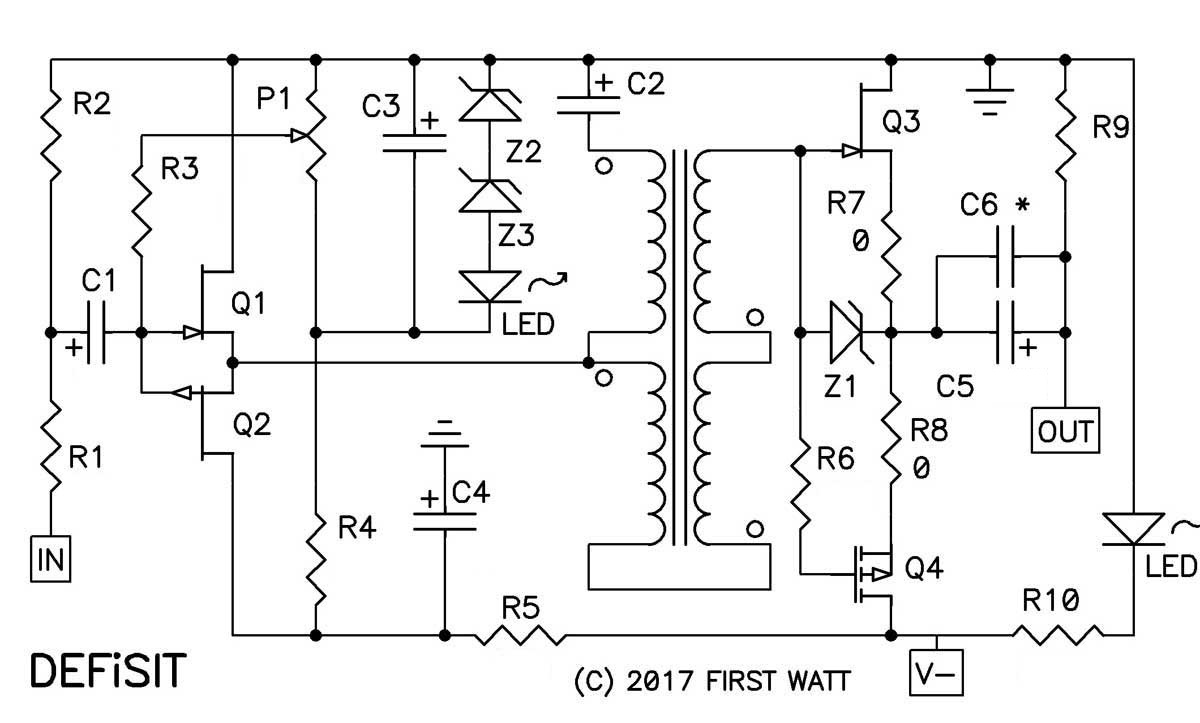

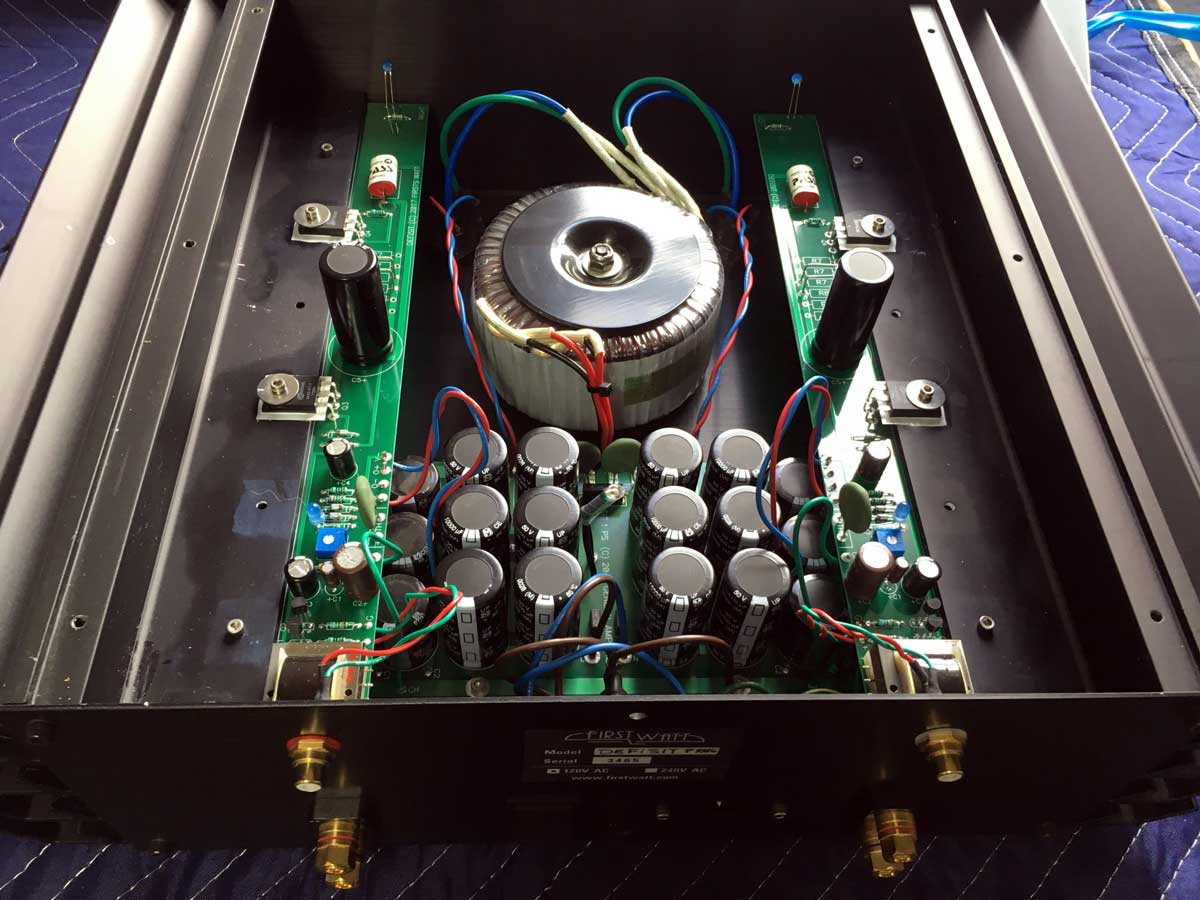

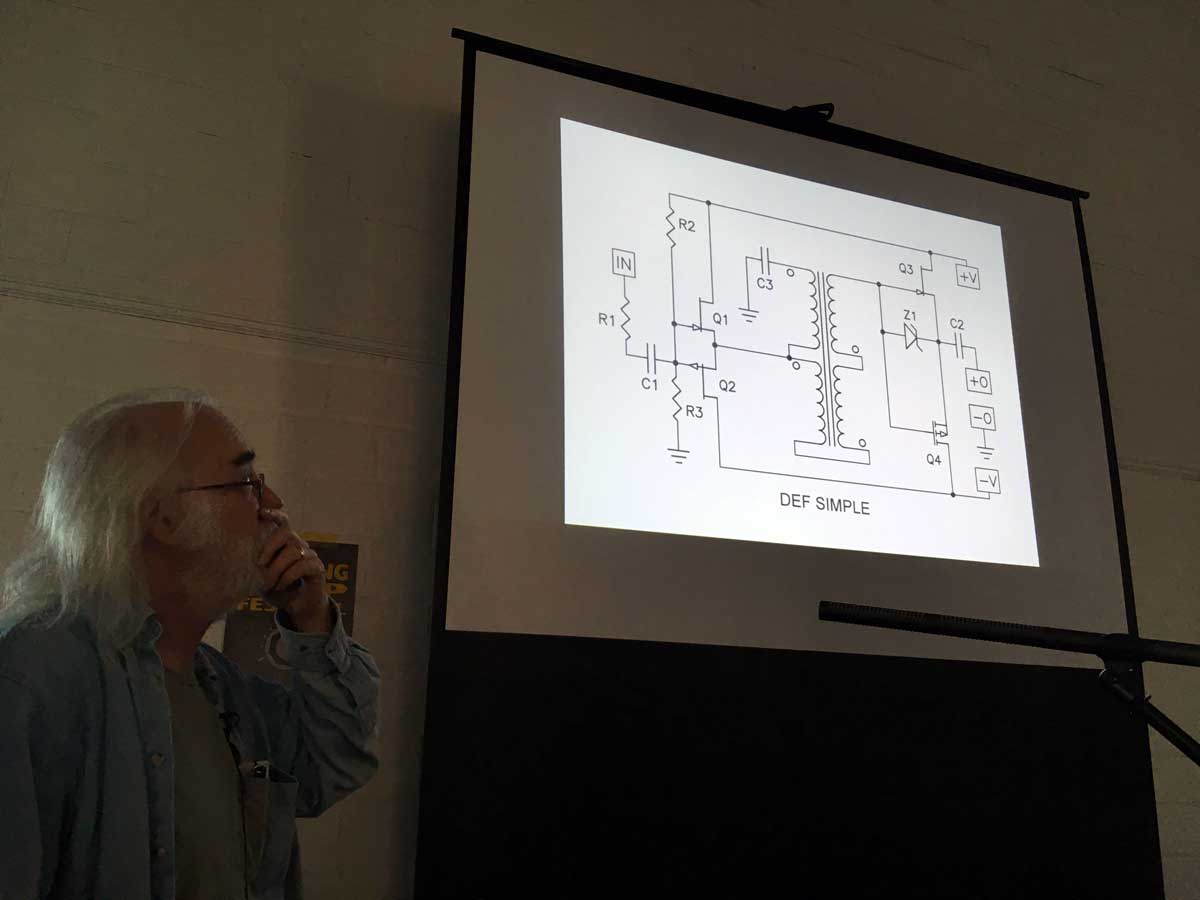

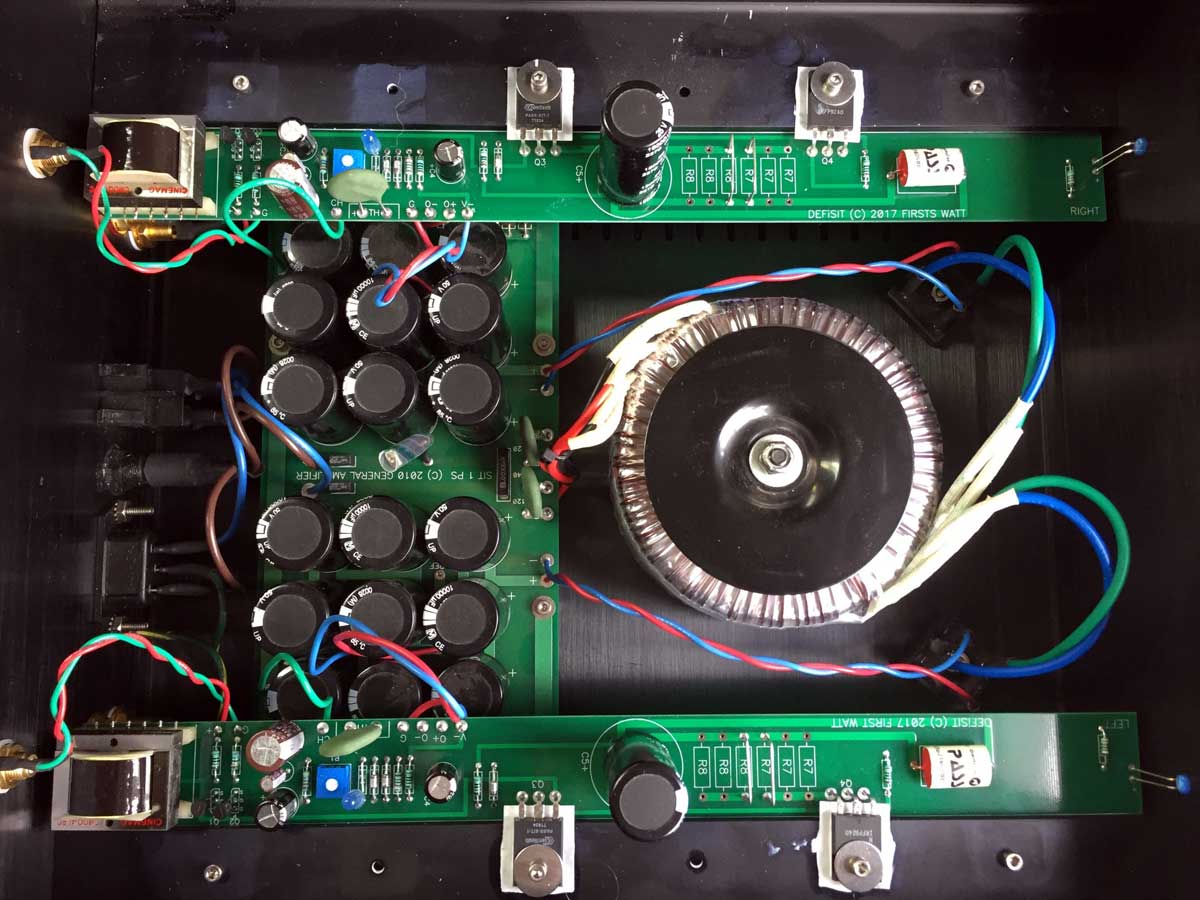

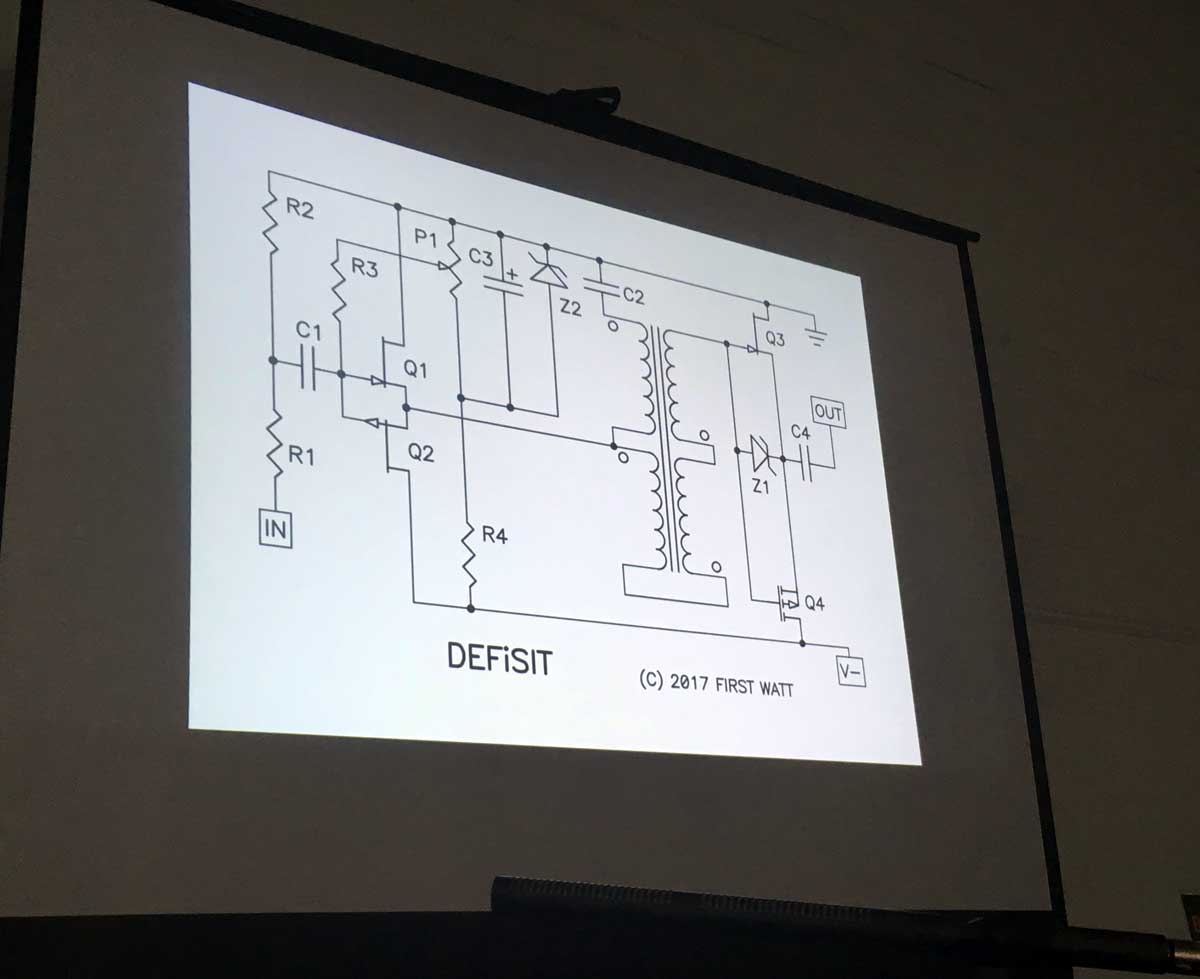

now – few pics from recent BAF....... Papalecture , DEFiSIT simple , DEFiSIT no values , Real MCKay one and two , little more detailed schm.


Attachments

  • 001a.Papa BAF 2017 DEFiSIT 1.jpg
    001a.Papa BAF 2017 DEFiSIT 1.jpg
    40.4 KB · Views: 5,204
  • 001b.Papa BAF 2017 DEFiSIT 2.jpg
    001b.Papa BAF 2017 DEFiSIT 2.jpg
    43.3 KB · Views: 5,126
  • 001c.origigi1.jpg
    112.1 KB · Views: 5,146
  • 001d.origigi2.jpg
    119.7 KB · Views: 5,097
  • defisitschm.jpg
    119.8 KB · Views: 7,403
Official Court Jester
Joined 2003
Paid Member
Aha ....

Lucky me ..... crystallization moment of entire ( taking advantage of naive gift giver) operation , was when I realized that I had opportunity of my personal Pony Express executive being in USA and soon going home …… with possibility to fill some space in luggage ;

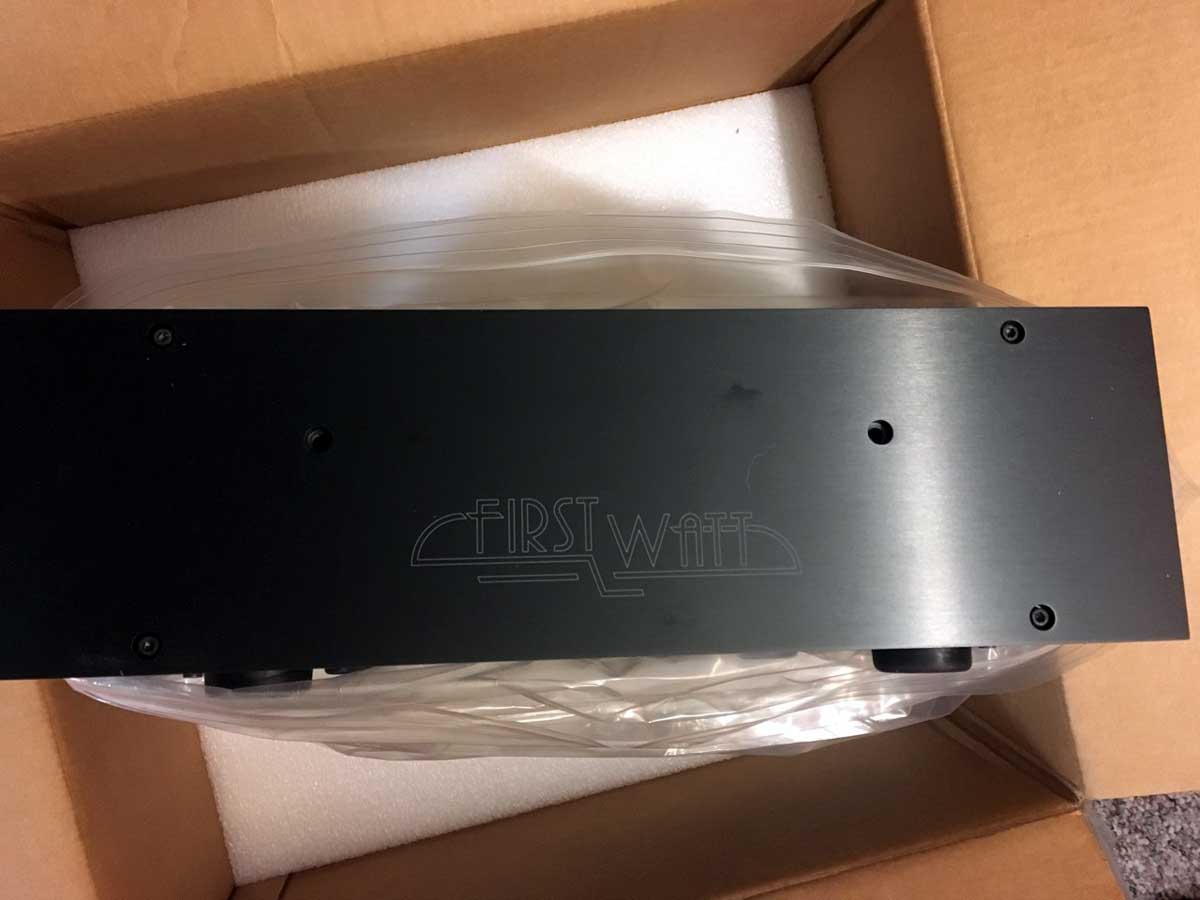

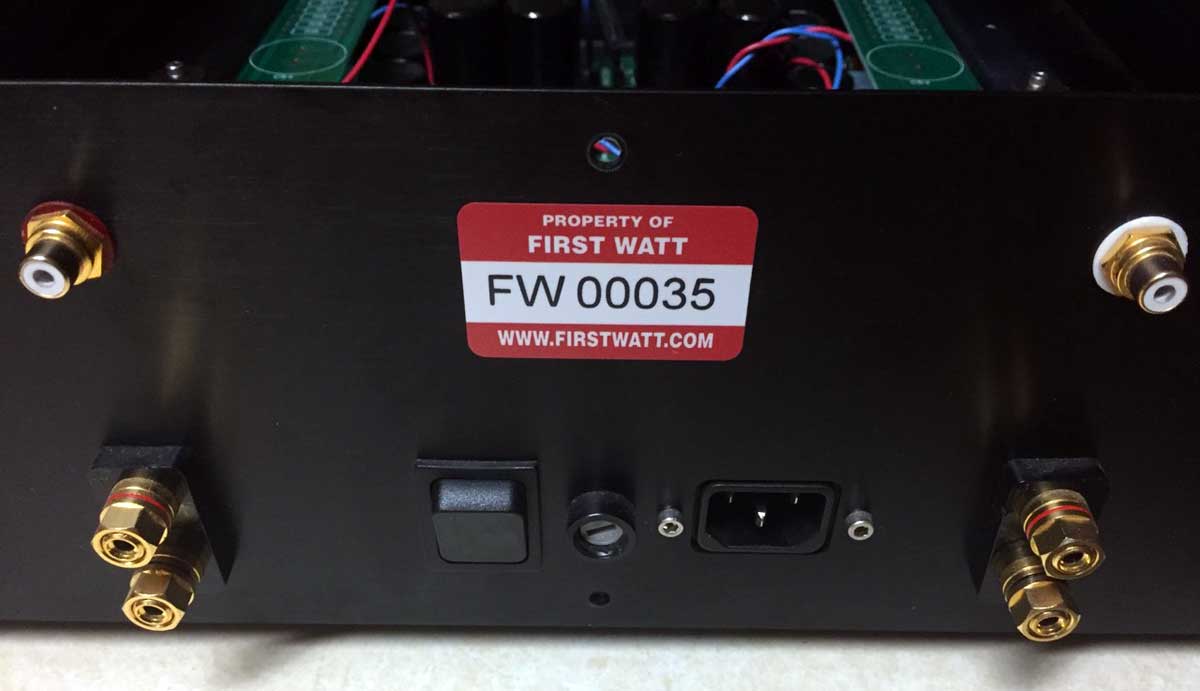

So , I got finger (not that one !) , pulled entire arm ,and result is - nice FW box , arriving at Pony Express rider temporary address :


Attachments

  • 02.jpg
    38.6 KB · Views: 1,613
  • 01.jpg
    46.5 KB · Views: 3,184
  • Like
Reactions: 1 user
Official Court Jester
Joined 2003
Paid Member
as agreed ....... what was really agreed is DEFiSIT kit , in most beaten FW case , as we know that Papa is using them for all sort of prototyping .....

well , he tricked me - case isn't beaten at all ..... :mad:

:D

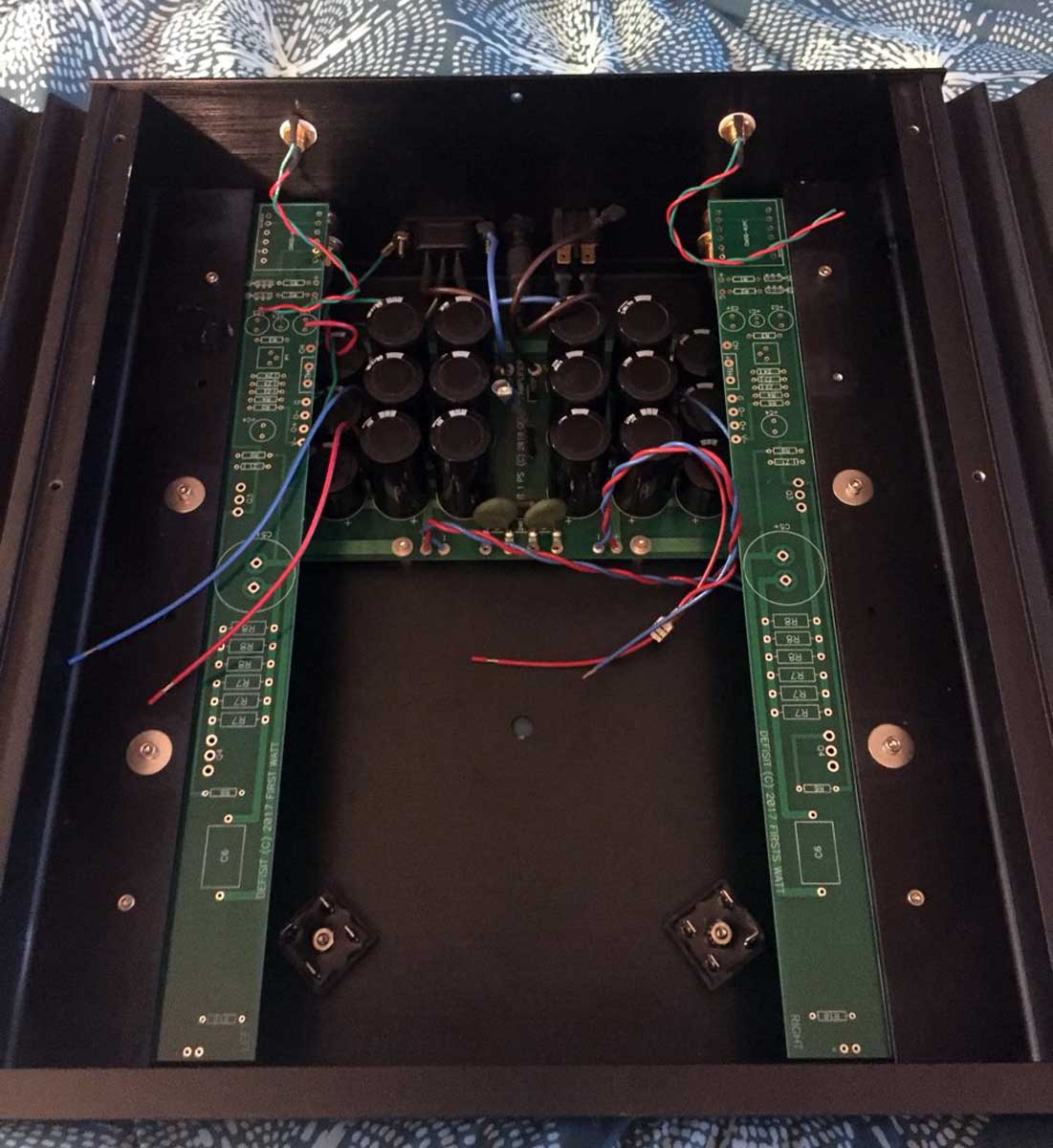

with lid opened (Pony Express rider is handy with Allen keys ) and itsybitsies in bubblie


Attachments

  • 03.jpg
    104.5 KB · Views: 2,129
  • 04.jpg
    75.1 KB · Views: 2,011
Official Court Jester
Joined 2003
Paid Member

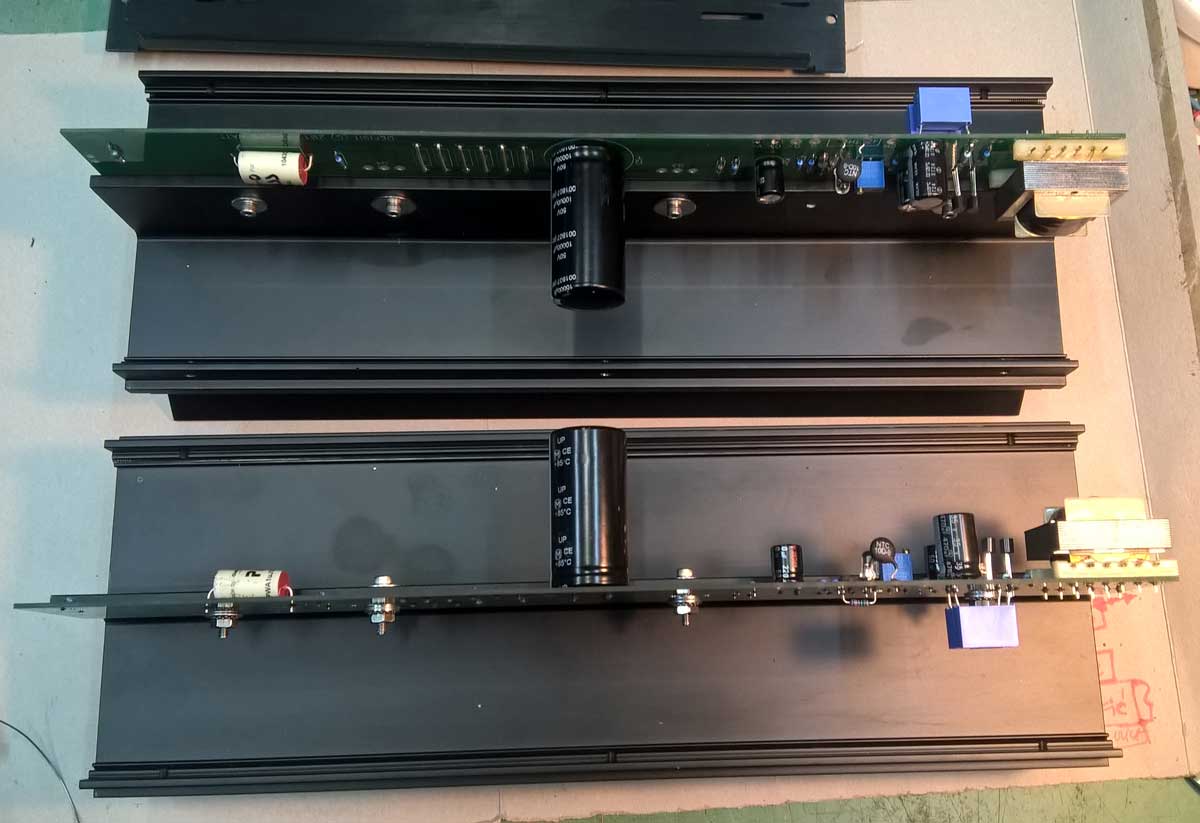

as I said - Kiddoe is handy with Allen key ;

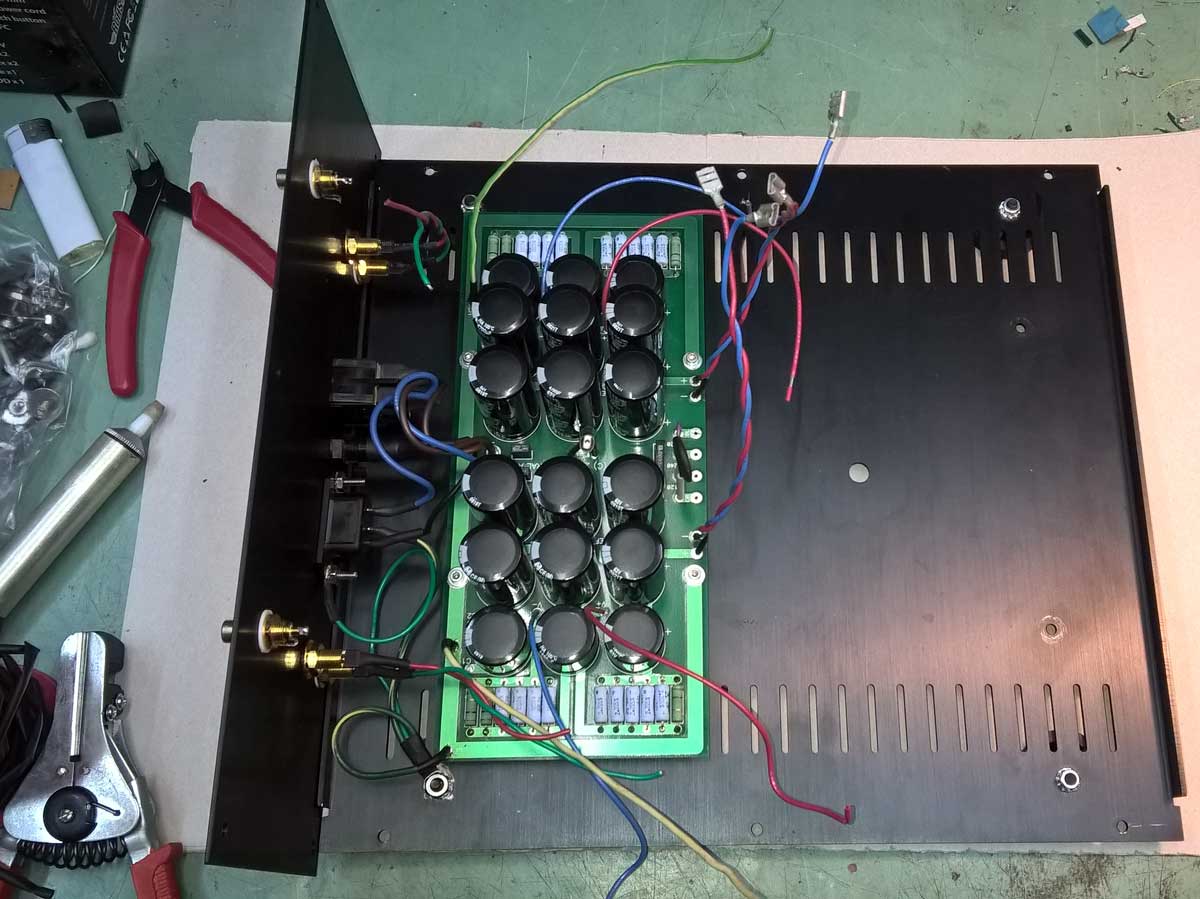

per my instructions - everything is dissmantled in pieces , for better usage of suitcase space and for lesser amount of Customs curiosity , at arrival home ;

approach resulted fruitfully - Roentgen in Customs is still cleverer than operators :)

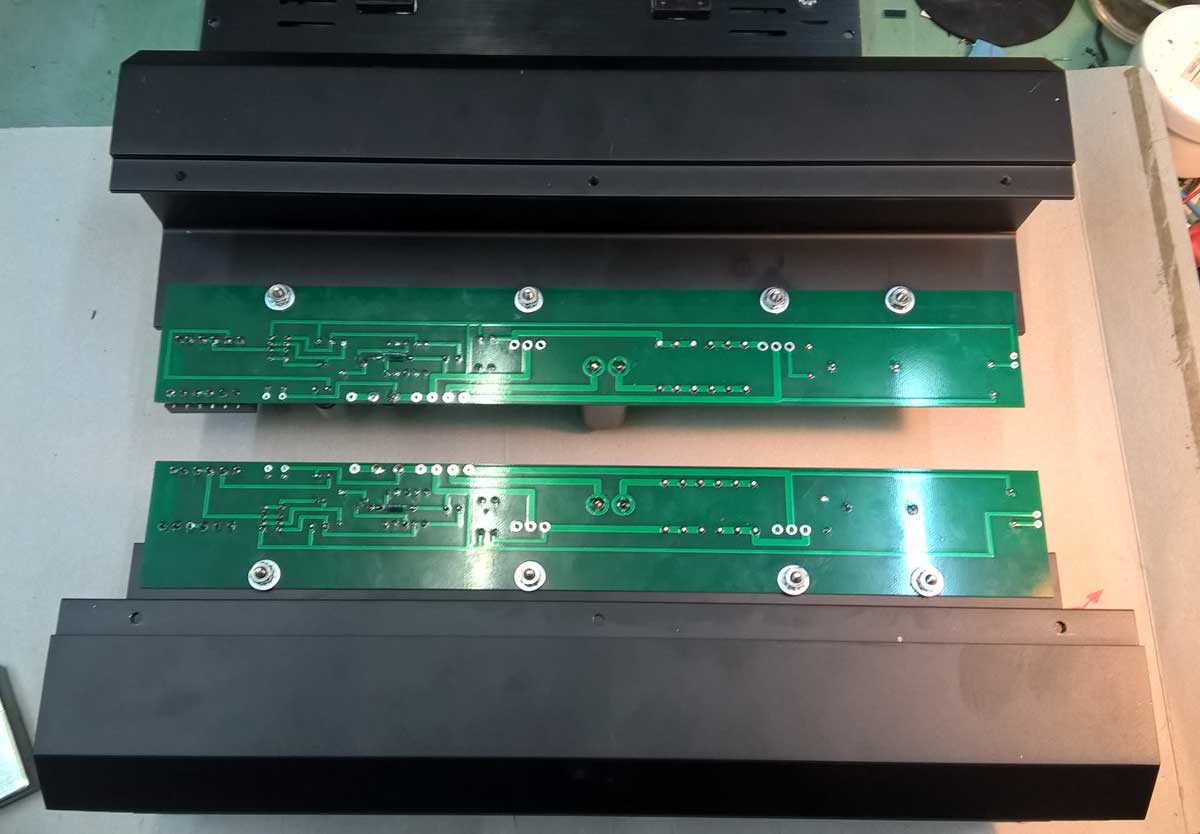

few days ago I started assembly/disassembly/assembly ;

Reminder : Assembly of Japanese bicycle require great peace of mind.

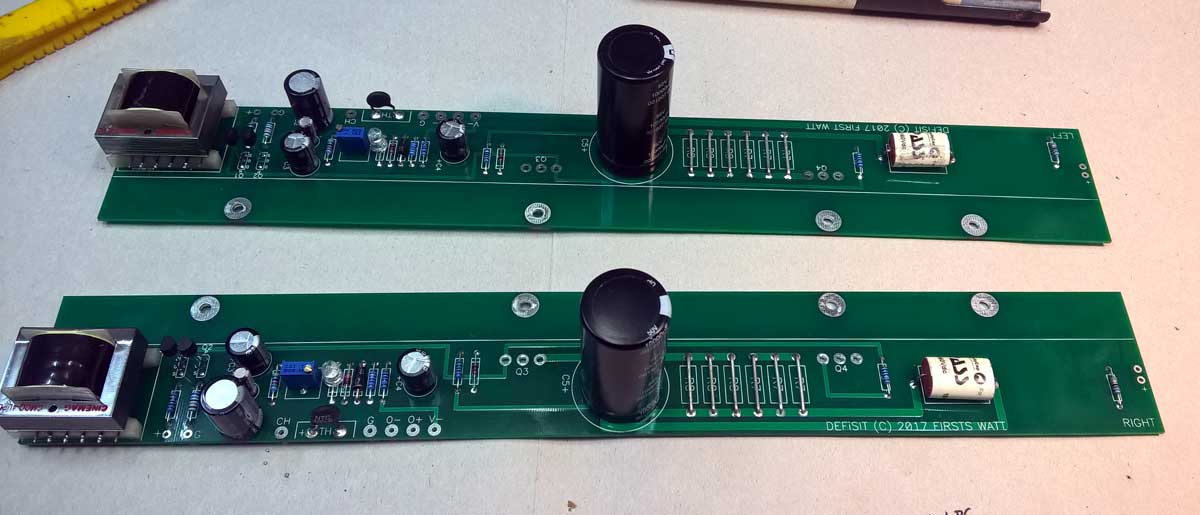

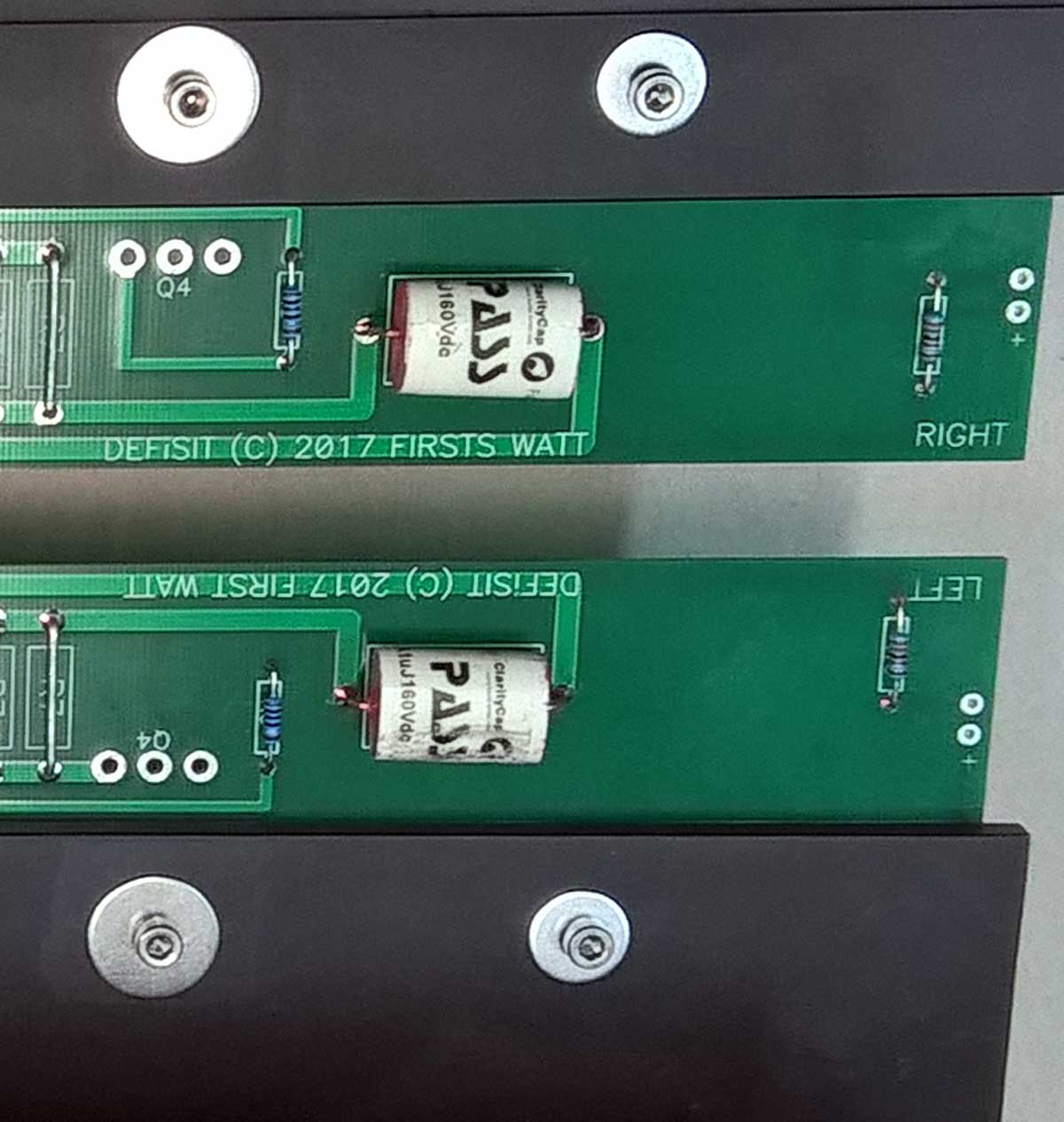

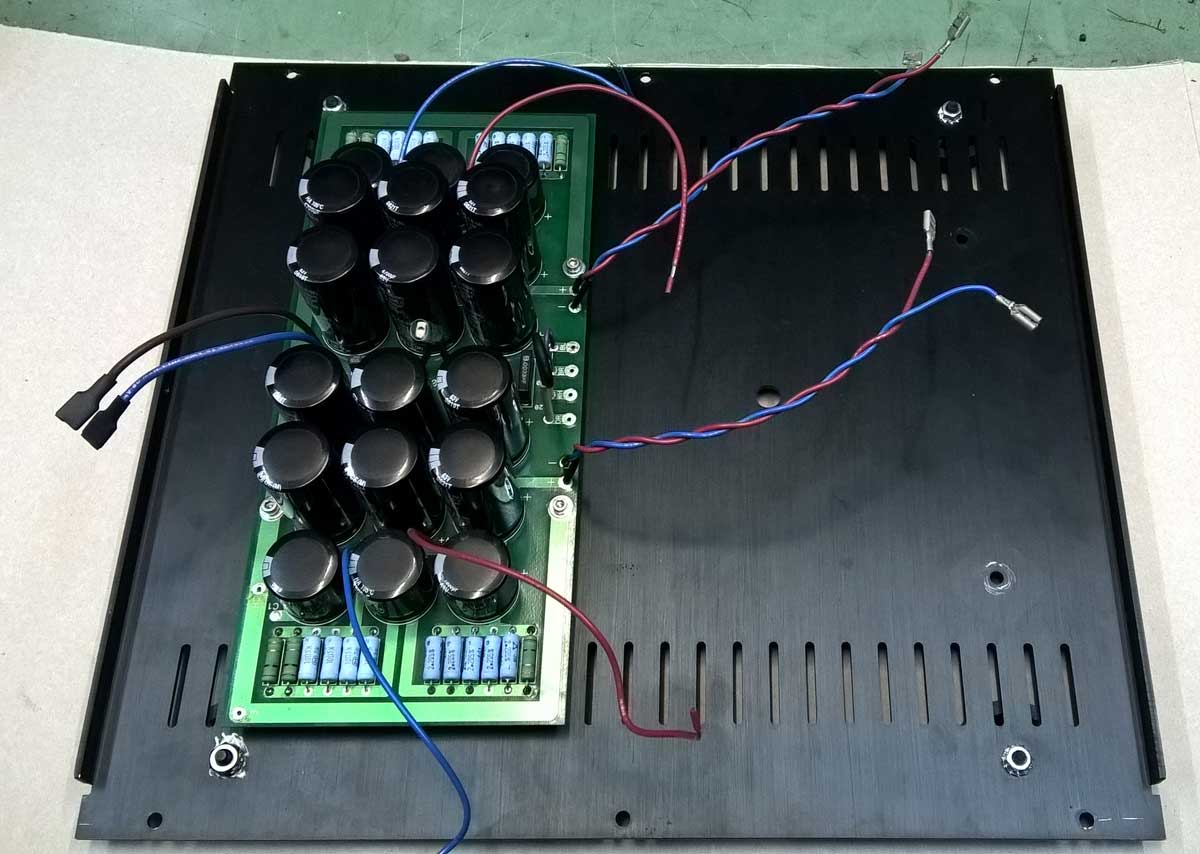

PSU pcb is obviously (same as in BAF specimen) from (early?) testing/production of SIT-1 ; and - Pa obviously used that pcb for some tests , and few power resistors in CRCRC are not same in channels (yup , dual mono PSU) ...... lucky me (again) , if not brain , I have great piece of mind , so I spotted that ...... also one cap per channel used in other purposes , now connected to other ones


Attachments

  • 06.jpg
    106.6 KB · Views: 1,377
  • 05.jpg
    91.3 KB · Views: 1,724
Official Court Jester
Joined 2003
Paid Member

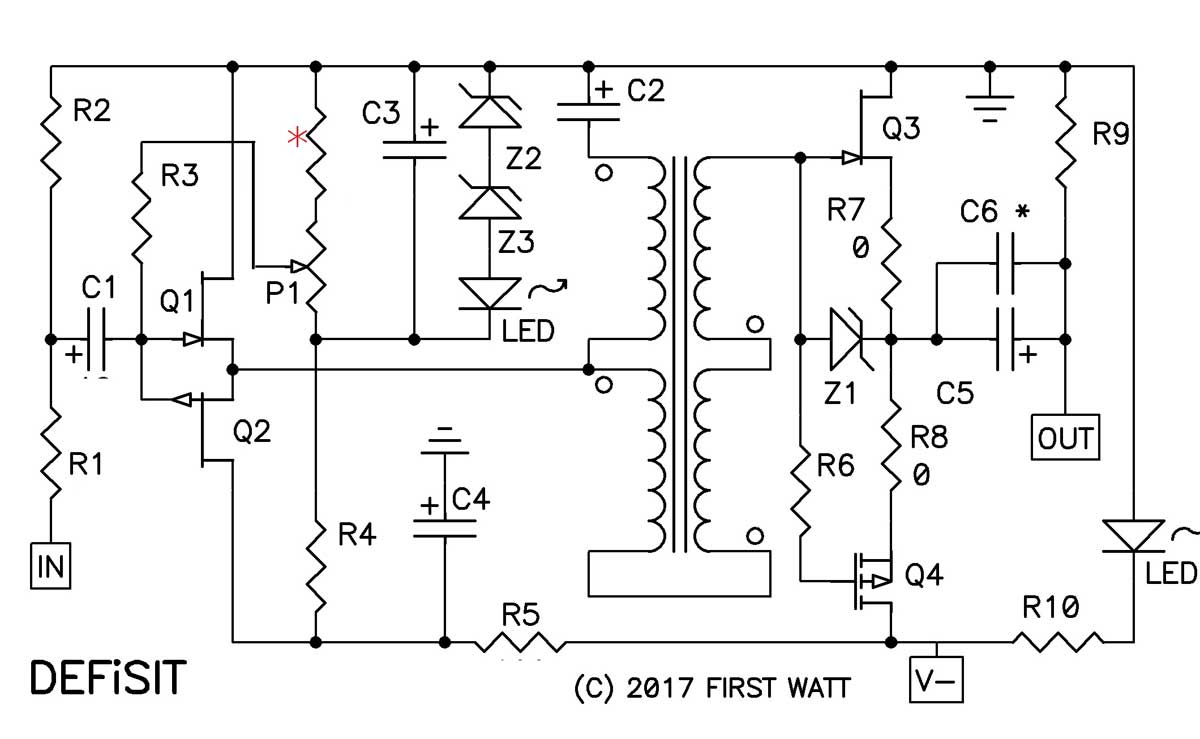

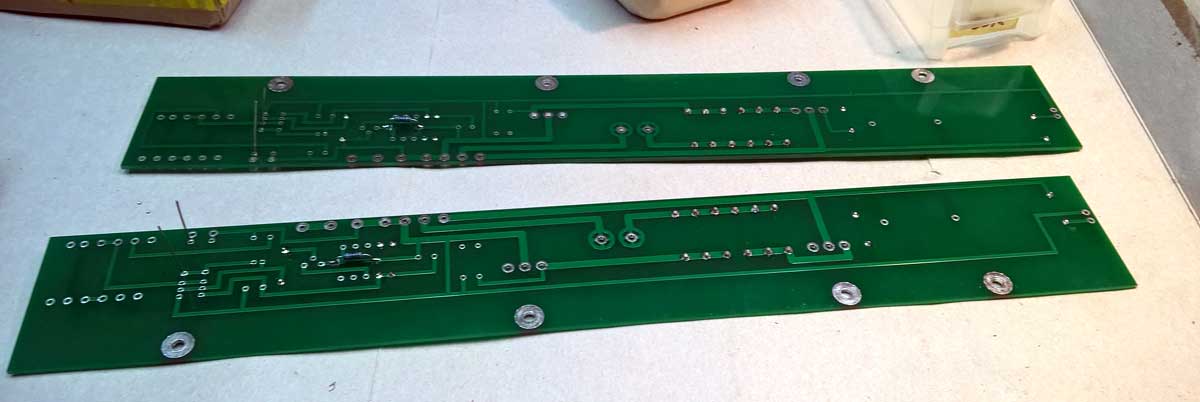

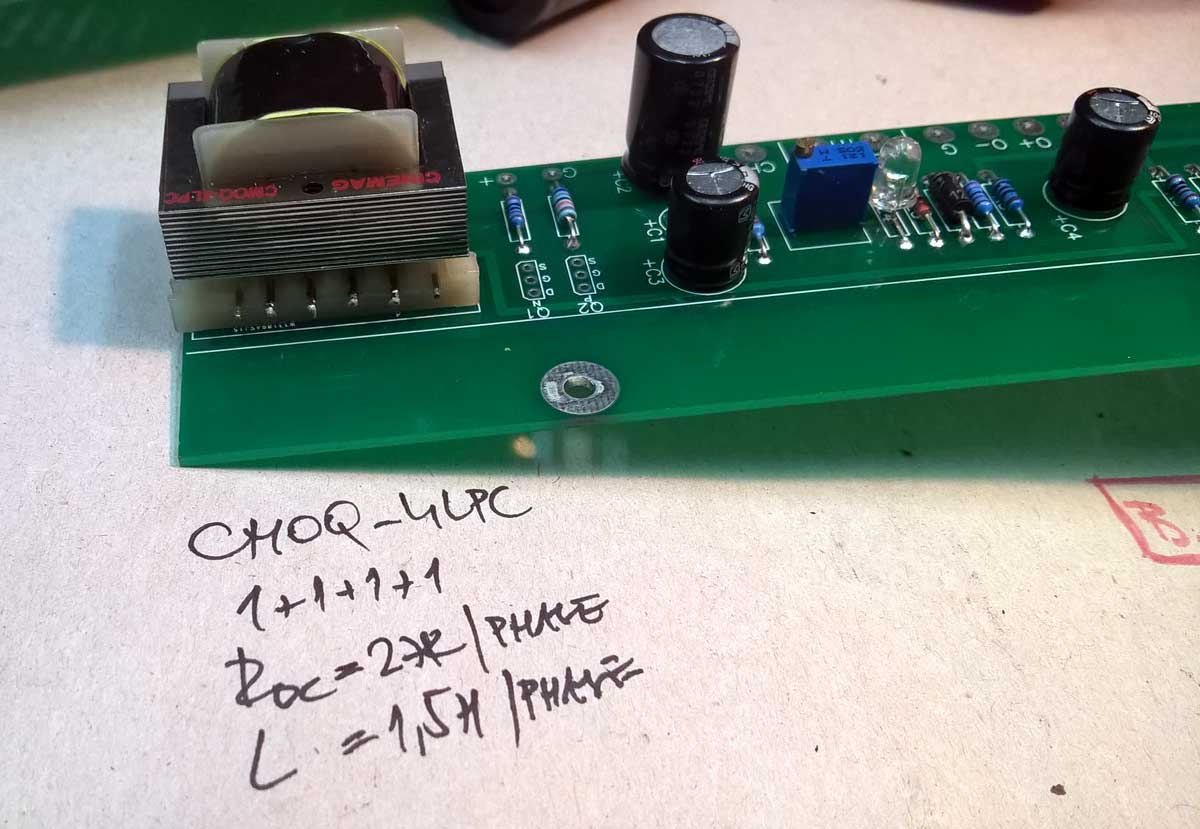

I'm not Fearless Amplifier Builder , as Papa certainly is ..... and I'm anyway used to make unnecessary changes to his circuits , so some trace cuttin' and one additional resistor , change of trimpot value , multiturn just because I'm Chicken :D


Attachments

  • 08.jpg
    53.7 KB · Views: 1,336
  • 07.jpg
    40 KB · Views: 937
  • defisitschm.jpg
    119.8 KB · Views: 1,887
  • defisitschmZM.jpg
    62.4 KB · Views: 1,946
Official Court Jester
Joined 2003
Paid Member

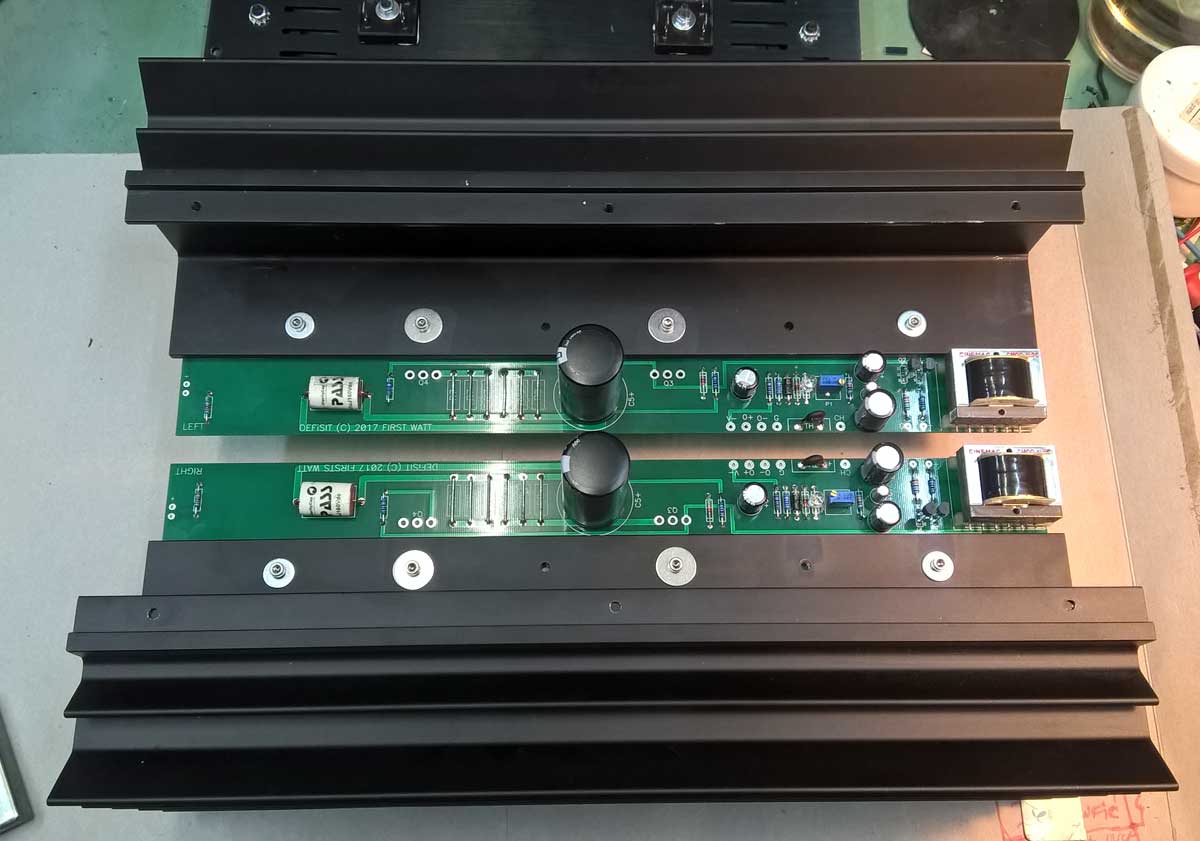

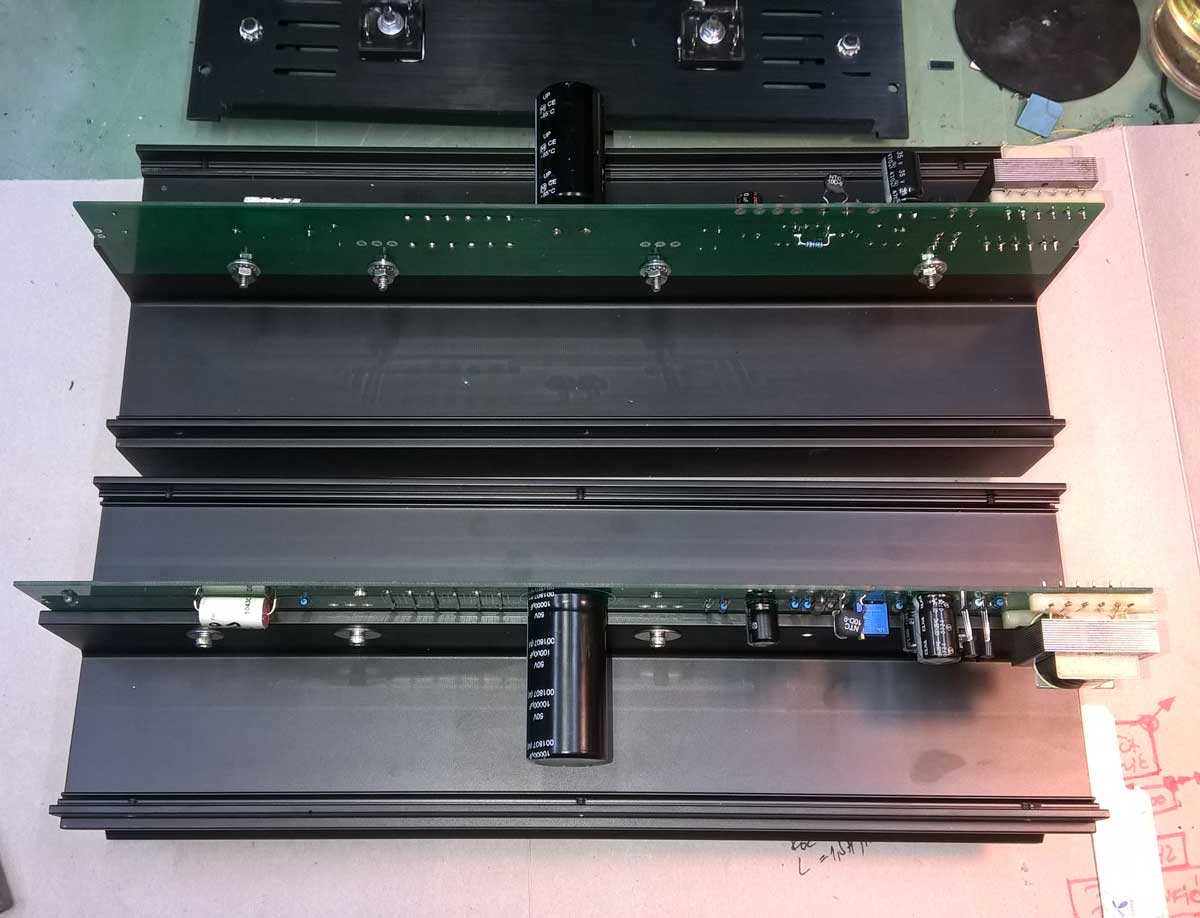

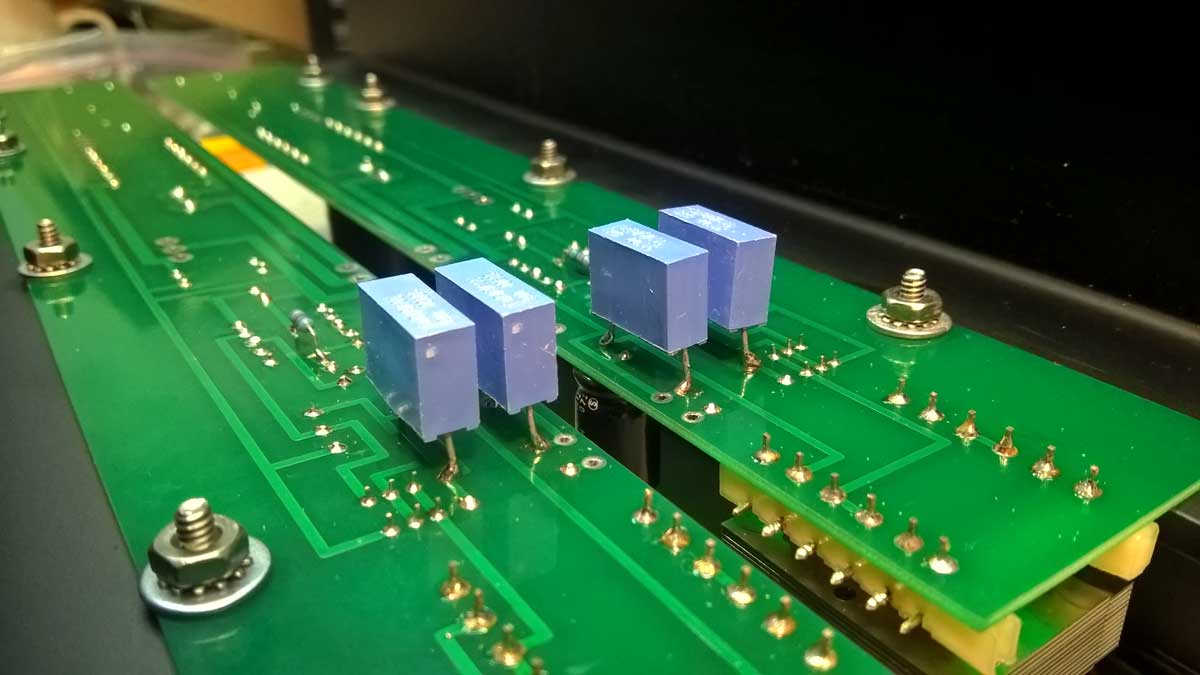

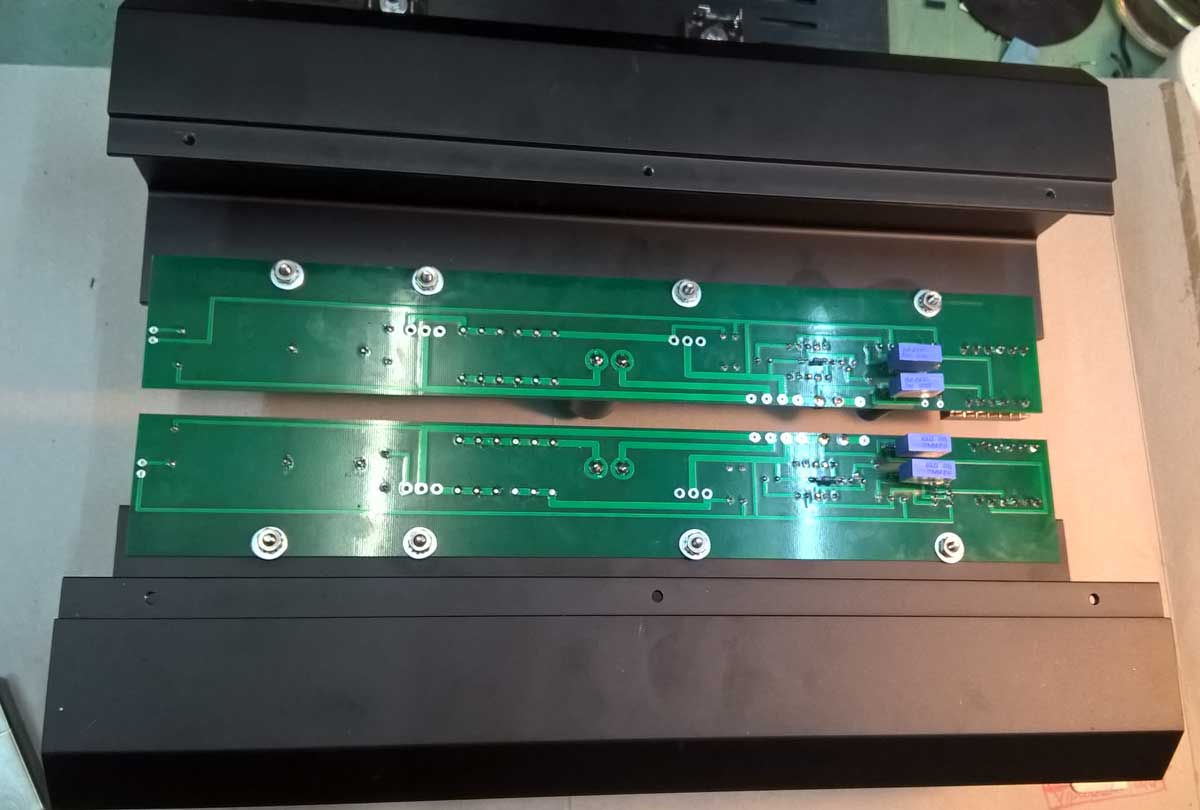

just from habit - my fave Philips 1uF MKC , as bypass on C1 and C2 position

did I wrote that Papa sent all caps in bubblie ?
....... more precisely - all parts , except small metal films :hypno1:

I also changed C2 to (also) my fave (125C , so industrial?) ELNA 470uF/35V


Attachments

  • 14.jpg
    59.8 KB · Views: 1,212
  • 15.jpg
    56.7 KB · Views: 1,096
  • 16.jpg
    72.6 KB · Views: 896
Official Court Jester
Joined 2003
Paid Member
Ok , Donut time ;
He sent me schmtc , but he didn't wrote about rails value ; after several emails (yup, me bugging again) , I finally got that name of the game is PapaSit's sweet spot ...... so set voltage and SIT will sit in proper current

:rofl:

Donuts- I have them zillion years , never had some use for them , until now

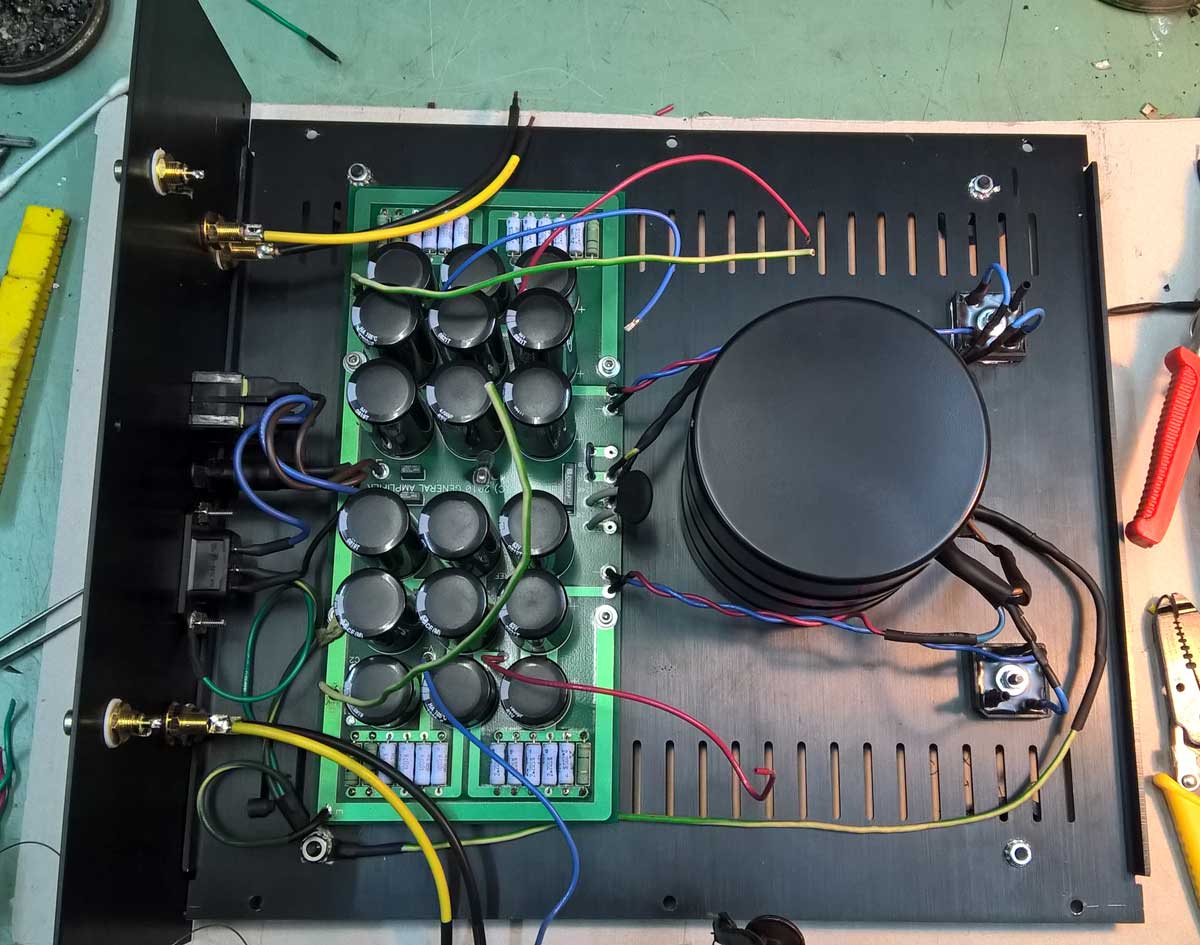

potted , shielded ; had to drill bottom Donut all through (careful with that Axe, Eugene .... it's easy to make a short , so drill bigger hole in shield pan on top)

50Vct , so CT going to GND on PSU pcb , while start and end of secondary are connected to just two diodes of Graetz bridge , routing neg to neg PSU input


Attachments

  • 18.jpg
    122.8 KB · Views: 2,465
Official Court Jester
Joined 2003
Paid Member
gene/dummy load/CRO routine done , everything as prescribed

nothing unusual , so no pics of that

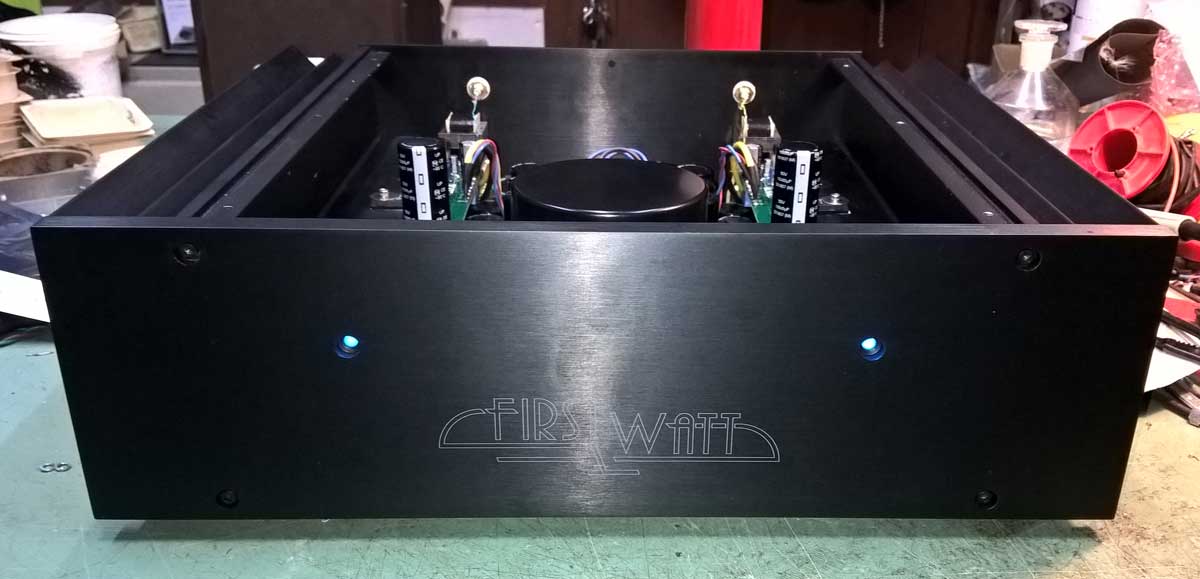

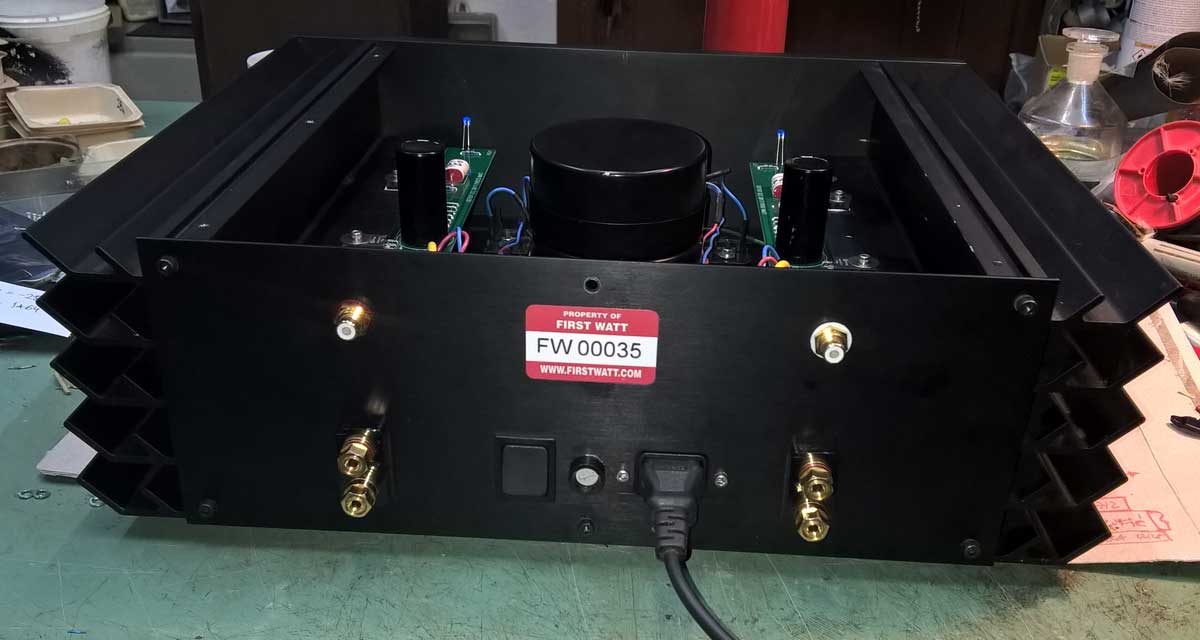

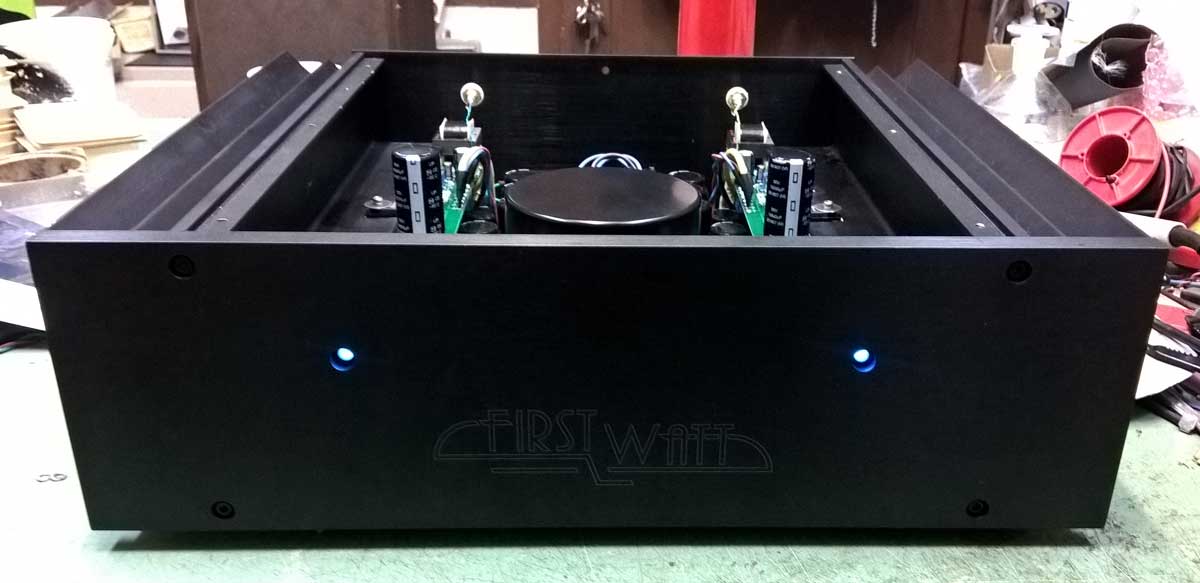

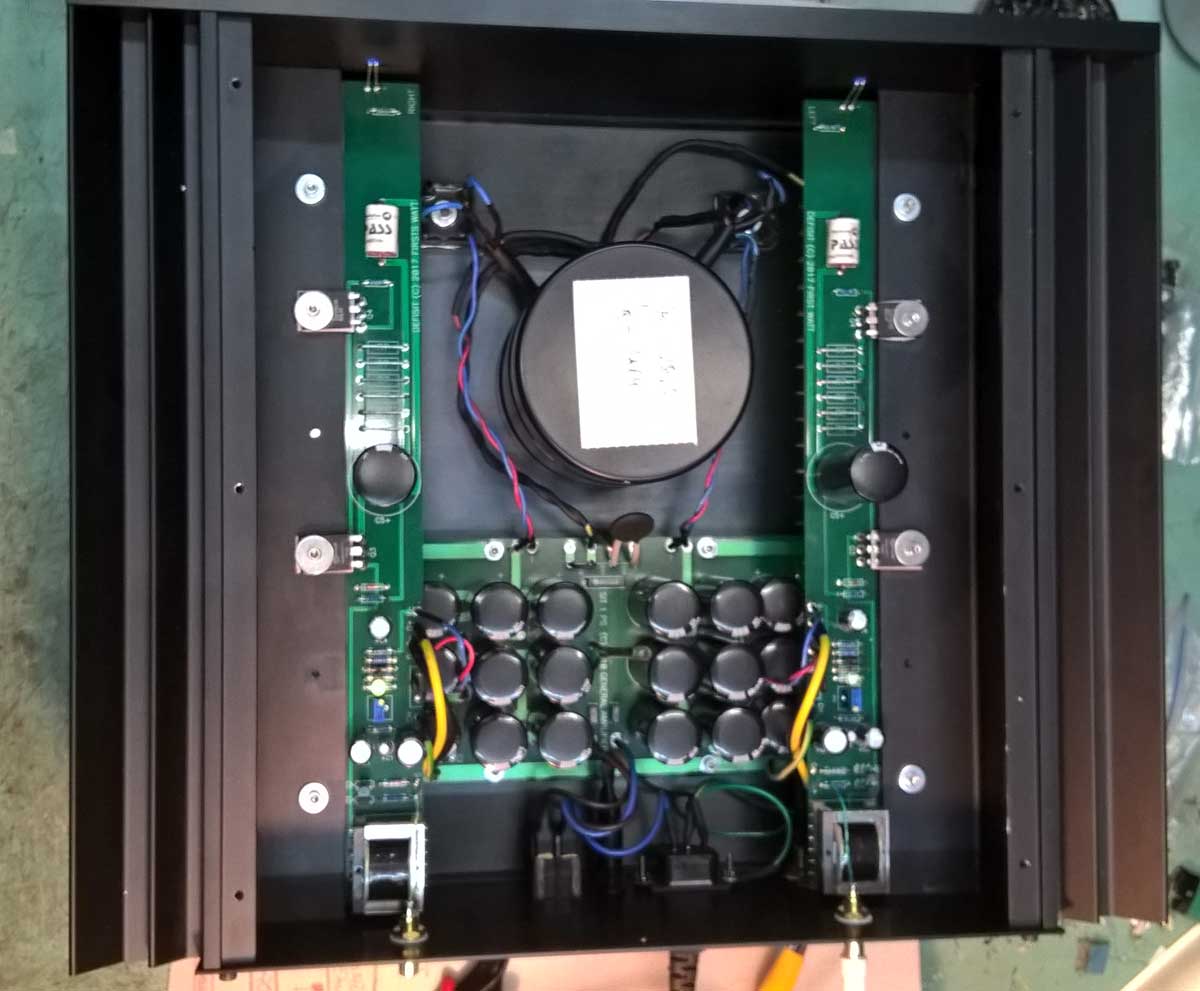

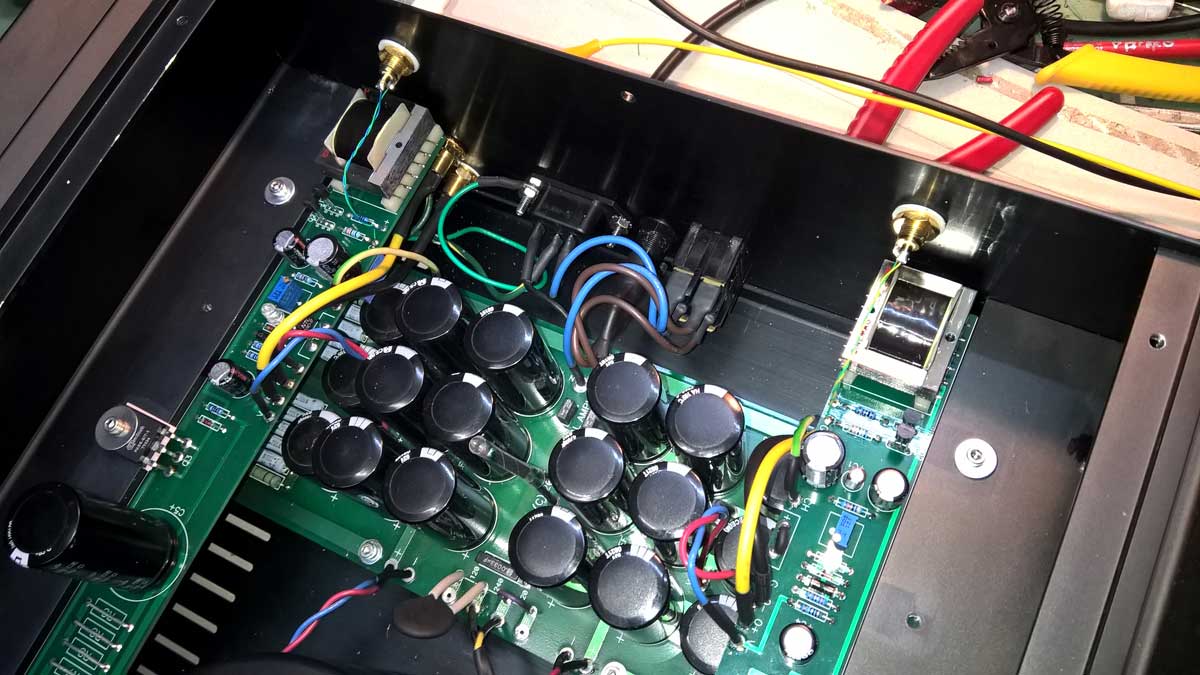

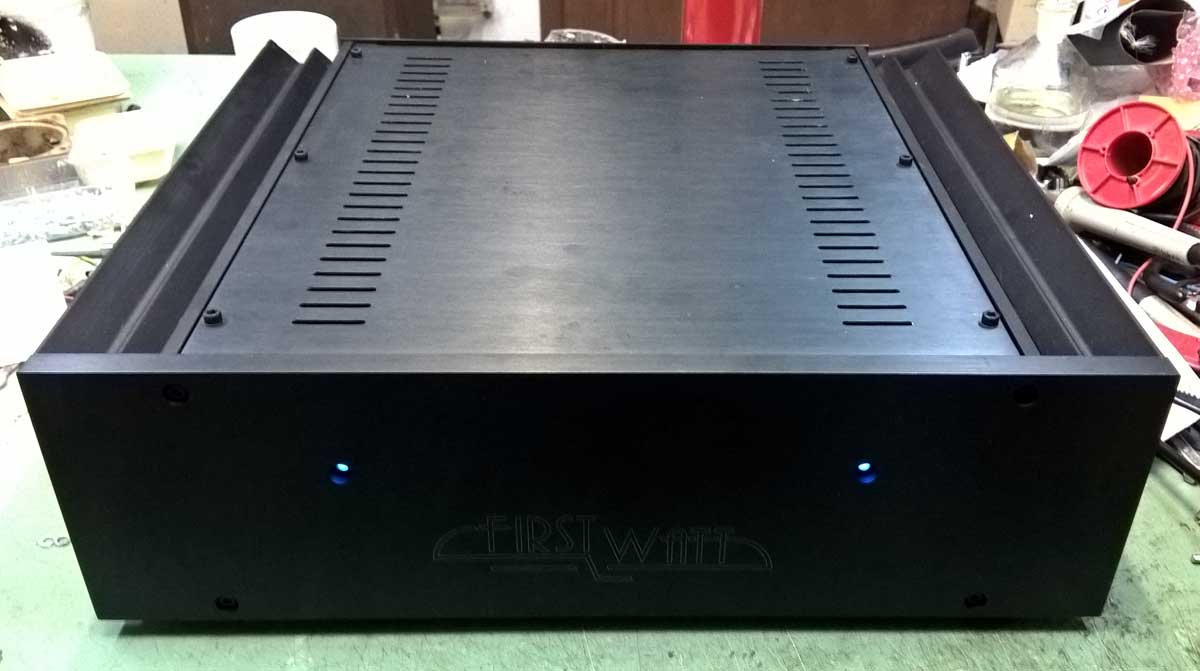

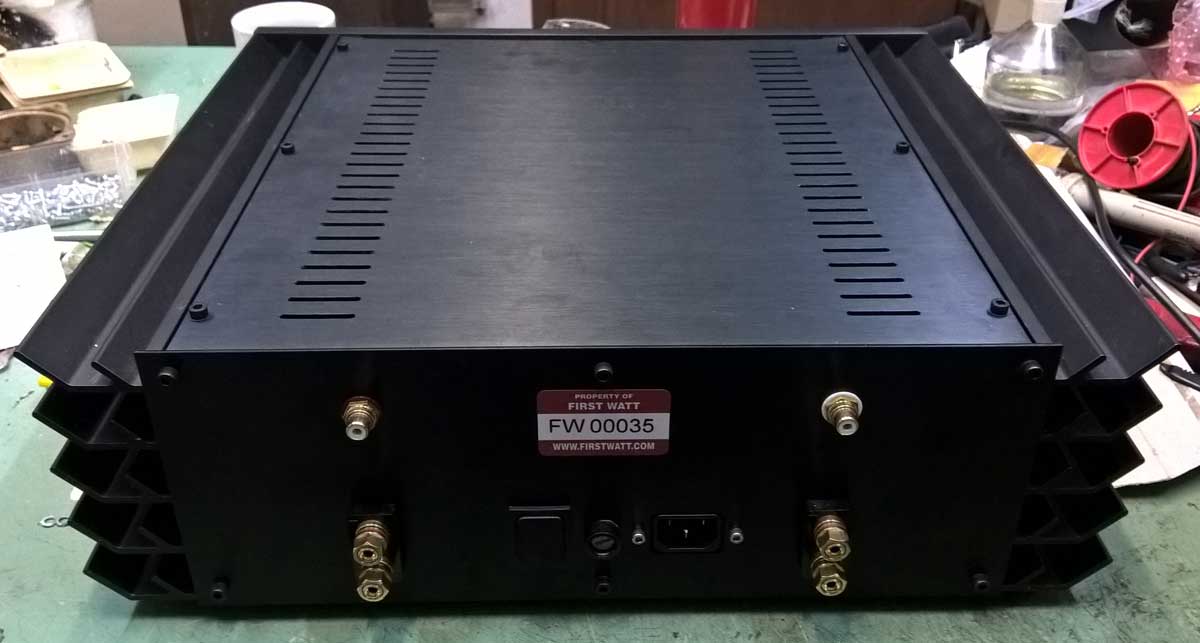

cooking time , final pics

tomorrow first listening hours :)


Attachments

  • 22.jpg
    55.6 KB · Views: 2,090
  • 23.jpg
    55.3 KB · Views: 1,918
  • 24.jpg
    52.2 KB · Views: 739
  • 25.jpg
    53.9 KB · Views: 657
  • 26.jpg
    52.9 KB · Views: 573
Official Court Jester
Joined 2003
Paid Member

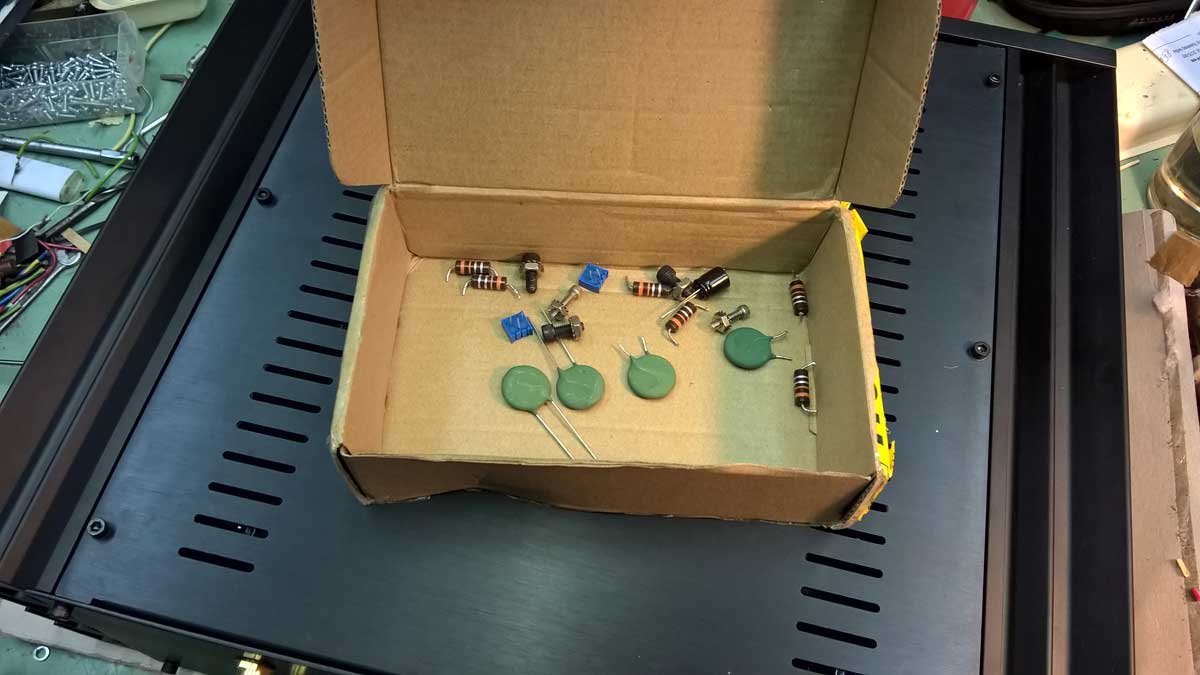

I'm always having some leftovers :)

public disclaimer - I'll never ever use phone to take pictures .... due to my lazyness , every second one is blurred ...... and these things are not happening when I'm using proper camera

:rofl:


and yes ...... Papa is definitely Most Uber Jester Boy .


Attachments

  • 27.jpg
    64.7 KB · Views: 1,460
