siliconray 15th November 2011 12:43 AM

6p3p tube amplifier kit
Hello all

Our partner developed a high quality low cost 6P3P SE kit for DIYers,

Features and spec:
5Z4P tube rectifier
6N1 preamplifier
6P3P power amplifier
Output Power 7Wx2
Load: 4Ohm or 8Ohm
Silkscreen stainless steel + wood enclosure

Part List
Power supply transformer 260v*2 6.3v 5v 3.15v*2
Output transformer 3.5k: 4 8 *2
Power supply choke coil 5H*1
Enclosure *1
Enclosure foot *4
RCA connector for input *2
Output connector *6
Power jack *1
Power cable *1
Power switch *1
Potentiometer 100K*1
Voice knob *1
Shuguang 5z4p new in stock *1
Shuguang 6n1 new in stock *1
Shuguang 6p3p new in stock *2
8Pin tube socket *3
9pin tube socket *1
47uf/400v *1
330uf/450v *1
22uf/400v *1
470uf/50v *2
0.22uf/160 *2
1k *2
47k *2
330 *2
470k *2
22k *1
220k *1
Shielded cable 30cm
Cannula 15cm
Soldering cable 3m
3mm 4mm screw 16set each
Schematic 1
Instruction Manual 1

The link:
6P3P Single Ended Tube Amplifier Kit

110V and 220V are both available


Price: $136 for retail. PM for multiple orders or group buy. Package weight about 9-10kg, the more the order, the lower average shipping cost.

siliconray 15th November 2011 01:10 AM


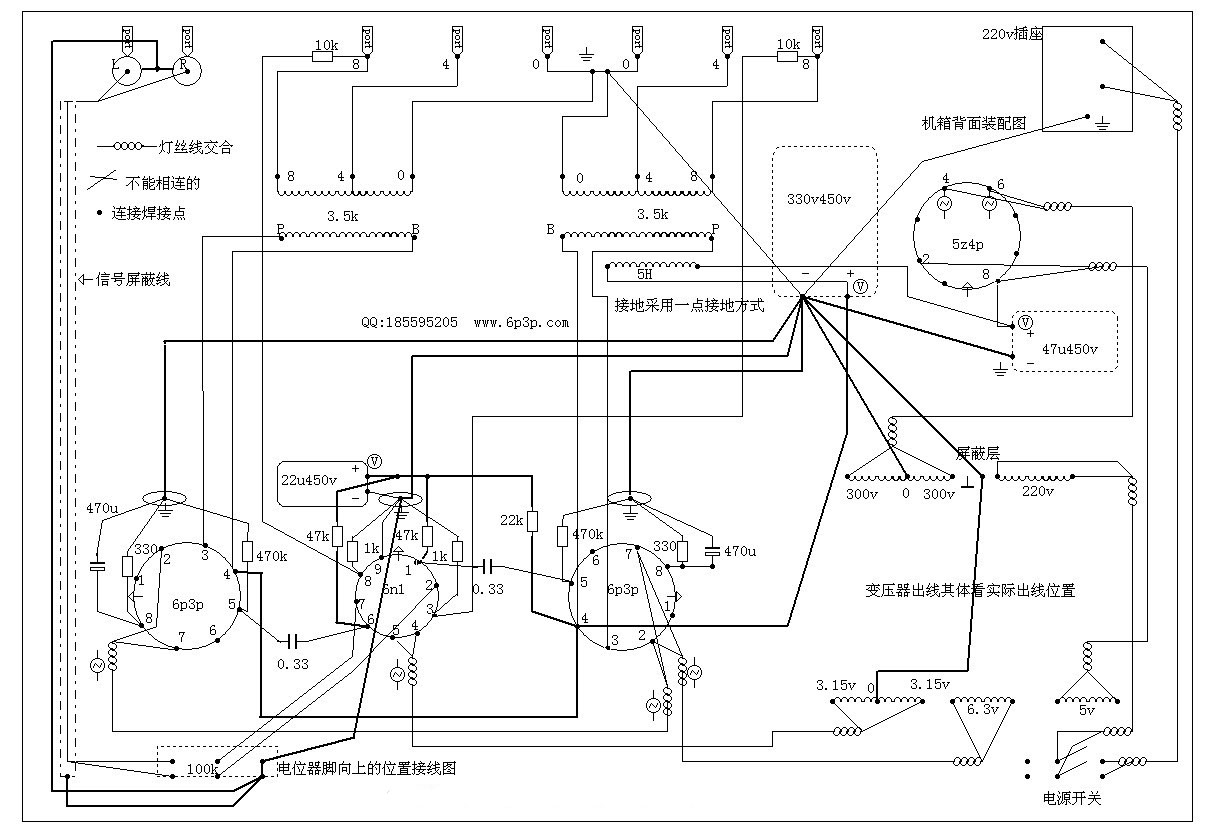

Assembly instruction:
1. Assemble valve socket, audio input socket, audio output socket, power socket and power switch.
2. Install power transformer and output transformer.
3. Check assorted resistor and capacitor .Test whether audio input socket, audio output socket, power socket, power switch, power transformer and output transformer are shorted with chassis.
4. Connect valve filament line of power transformer and output transformer with relevant sockets.
5. Install resistor and capacitor of power-amplifier after installation of resistor and capacitor of preamplifier.
6. After soldering, check whether each solder point and connection of circuit is the same with graphic expression in electrical schematic diagram.
7. Test whether the voltage of power output and valve filament is right. (It is normal that no-load voltage is higher.)
8. Plug in rectifying tube, and then check whether power is the same with graphic expression in electrical schematic diagram. (It is normal that no-load voltage is higher.)
9. Check whether complete machine connects with valve socket. (It is normal that no-load voltage is higher.)
10. Plug in power amplifier when voltage of valve filament is right. Check whether cathode voltage is the same with graphic expression in electrical schematic diagram.
11. Then plug in preamplifier valve, and test whether working point is familiar with graphic expression in electrical schematic diagram. If it is ok, signal can be inputted to test the sound.

neob 15th November 2011 01:41 PM


These amps seem pretty nice and easy to be made for a newbie like me.
I hope the package from you, quickly arrived.
I am curious about the sound when paired with my uFonken.

Thank you

siliconray 15th November 2011 11:55 PM

Hi Neob

Thank you for your order. Hope it won't take too long for the box to arrive. These amps has great sound with proper wiring. Please feel free to let me know if any question.

siliconray 16th November 2011 12:58 AM

Marks of transformer
1 Attachment(s)

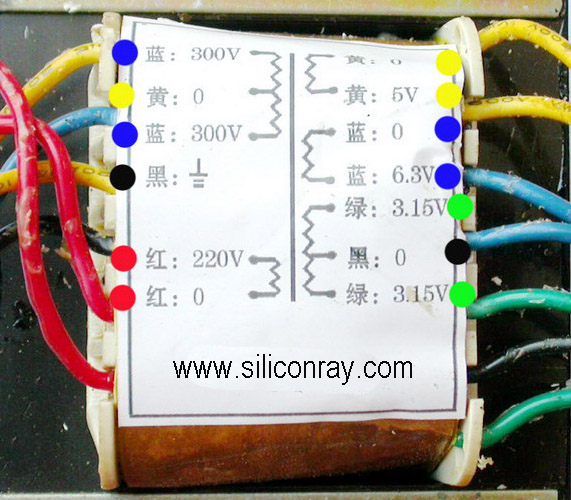

The power transformer are marked with Chinese. Here's a picture that marked with color dot for the cables, for your reference.

hrudu 16th November 2011 04:16 AM

Are the 6P3P tubes equivalent to the 6L6's?


siliconray 16th November 2011 05:32 AM

Yes it can be replaced with 6n3c, 6L6, 5881, KT66, EL34 without (or with minor) modifications The sound can be improved with EL34 and KT66 as my experience. Haven't tried other tubes yet. 6L6 should have the same sound quality with 6P3P.

siliconray 21st November 2011 04:29 AM

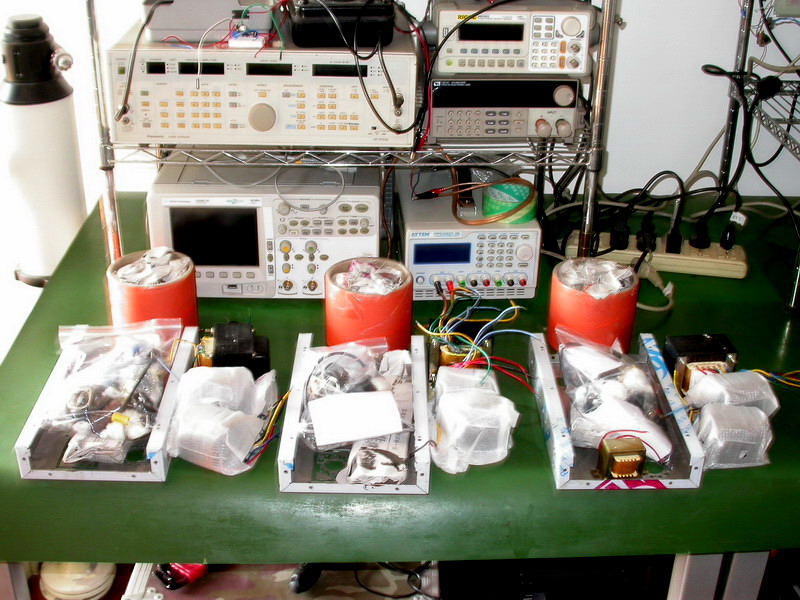

A lot of kits are ready for shipping
1 Attachment(s)
A lot of kits are ready for shipping

siliconray 9th December 2011 04:25 AM

Very important notice
I discussed with a Denmark customer all night long about his 6P3P kit. He finished soldering the kit but the speaker is crazy shouting. At first I told him to check all the connections, groundings and values of components. He worked for a few hours and sure that everything is OK, but the amp is still shouting.

Finally I realized that the problem may be caused by the feedback loop. Maybe he wiring the wrong polarize of the transformer. I asked him about the polarise of the output transformer, he seems to be very surprising: "Does that important?" OK, you can imagine what happens next. Now his amp is working perfect.

Well, the polarize of the output transformer does matter, or the negative feedback will become positive and the speaker will shouting.

There're marks on the transformer which marked with P, B, 0, 4Ω, 8Ω, and the color are red, blue, black, yellow, green. P must be connected to plate of 6P3P, B connected to power supply, 0 connected to ground, 8Ω to feedback resistors. Please take special care when you are building your amps.

silicontube 13th December 2011 01:41 AM

Oh, great, looks great to the force, I have here some of the 6P3P of the tube, do not know can not make such an effect, continue to pay attention!
