25W with 2xEL86(6CW5)!

[davorin]

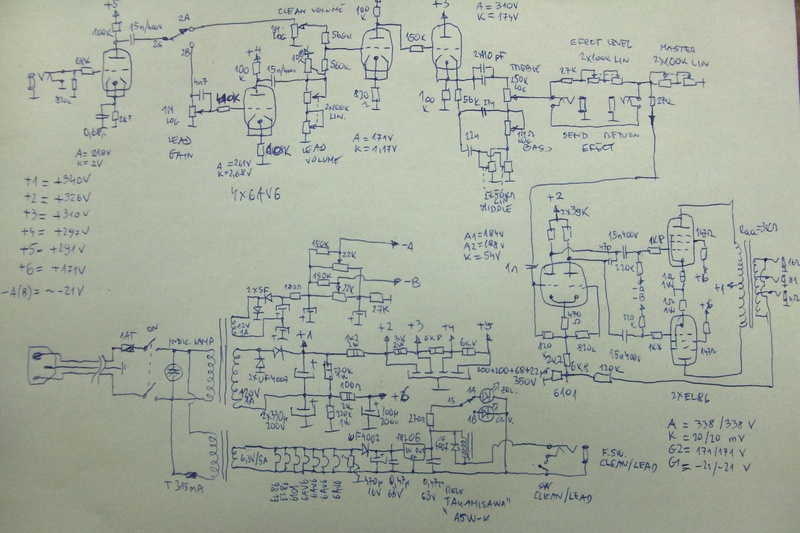

Small, but very powerful guitar amplifier with 2xEL86 output tubes! More than 25W before clipping, and more than 30W at maximum!



[davorin]

Unusual input tubes, but very cheep!



[davorin]

Sound is like old Marshall-JMP, and Marshall-JCM with (foot)switch remote.



[davorin]

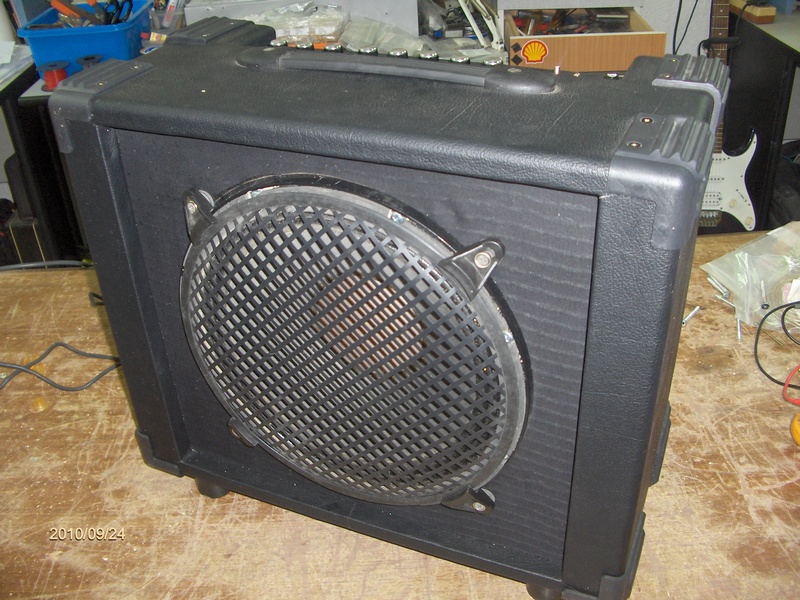

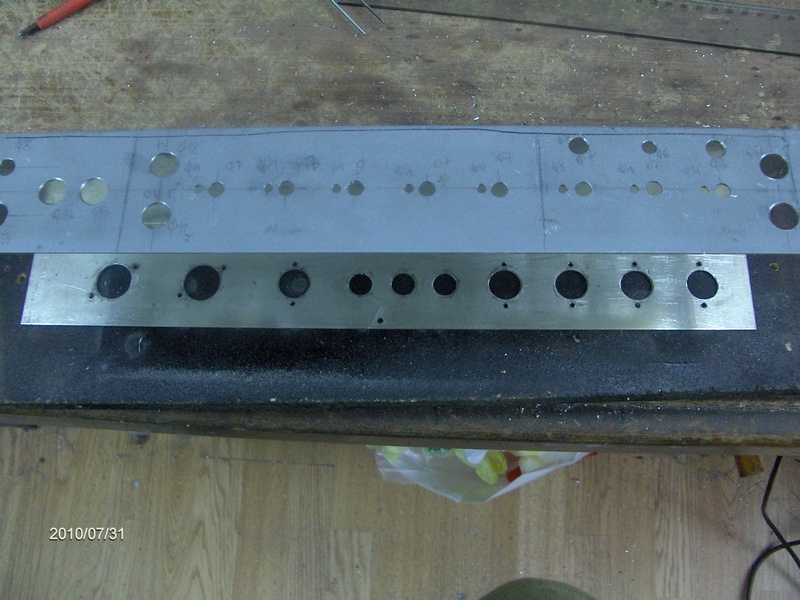

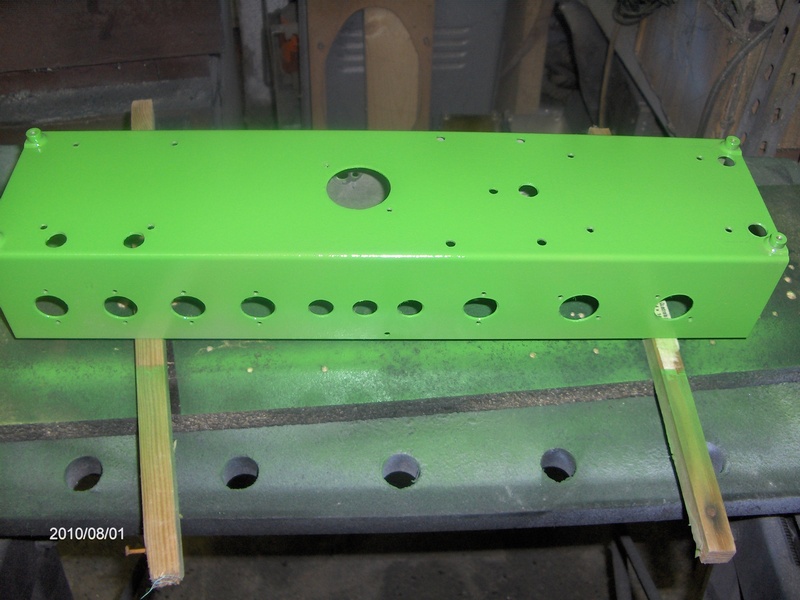

Finally!



[davorin]

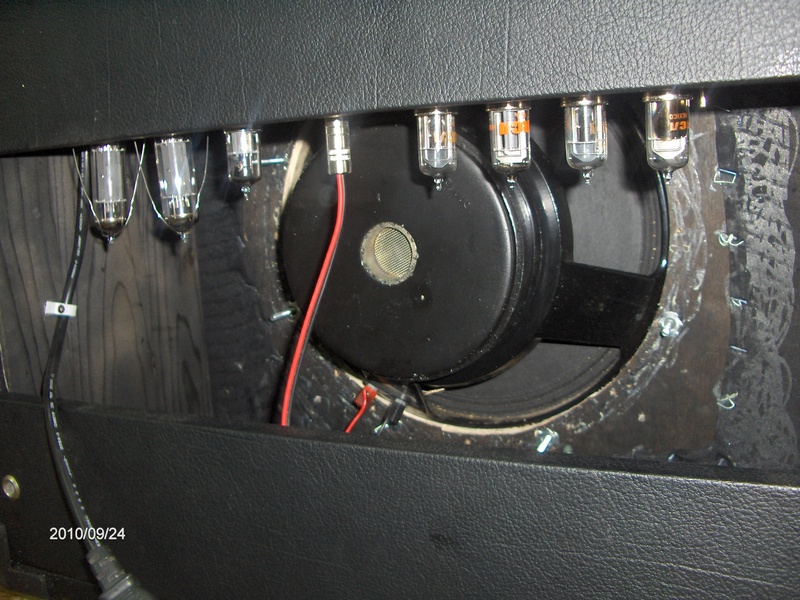

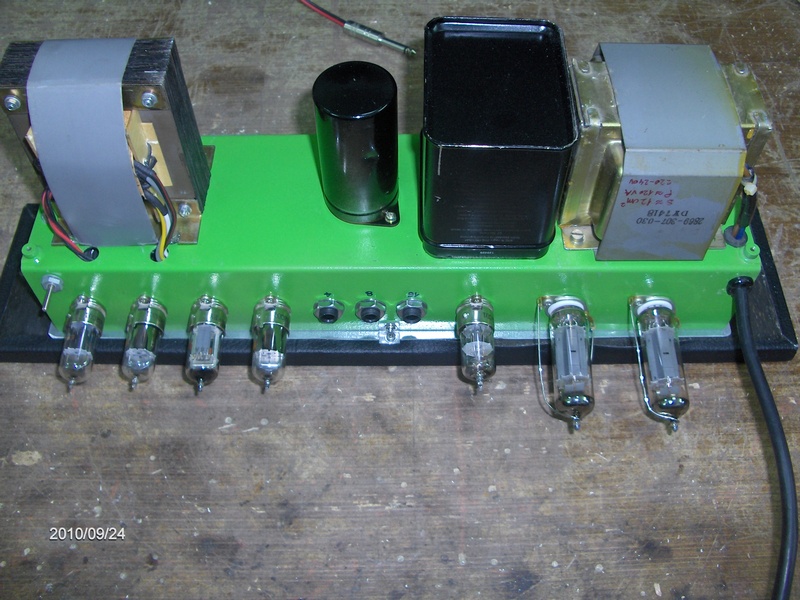

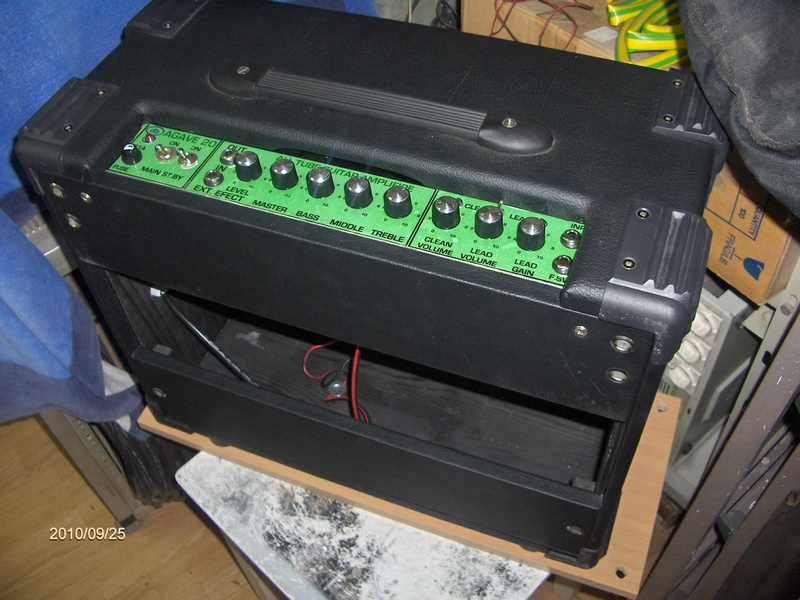

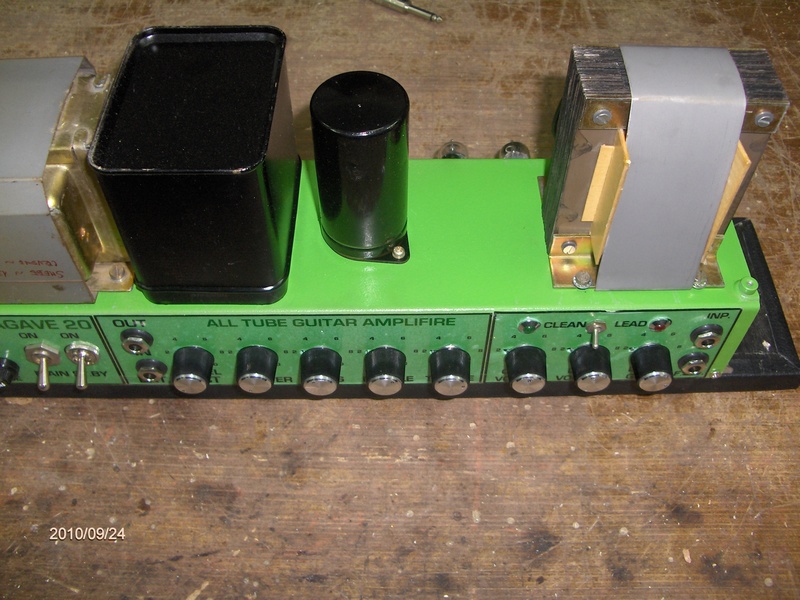

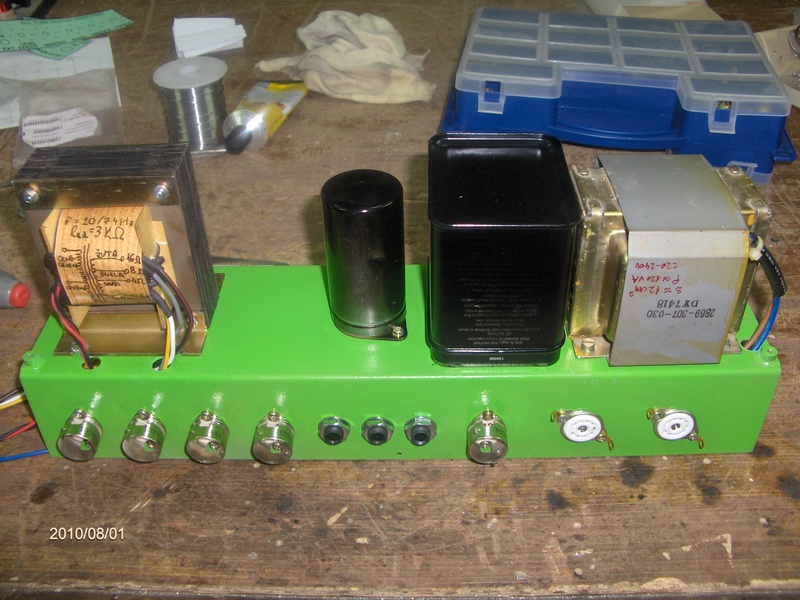

Top view!



[vinylkid58]

Very nice! The green chassis is a real eye-catcher.

jeff



[lazzer408]

How do you do the lettering on the front panel?



[Bigun]

Looks superb ! - and I can see that you put a lot of work into that, it looks nicely done indeed.



[davorin]

How do you do the lettering on the front panel?

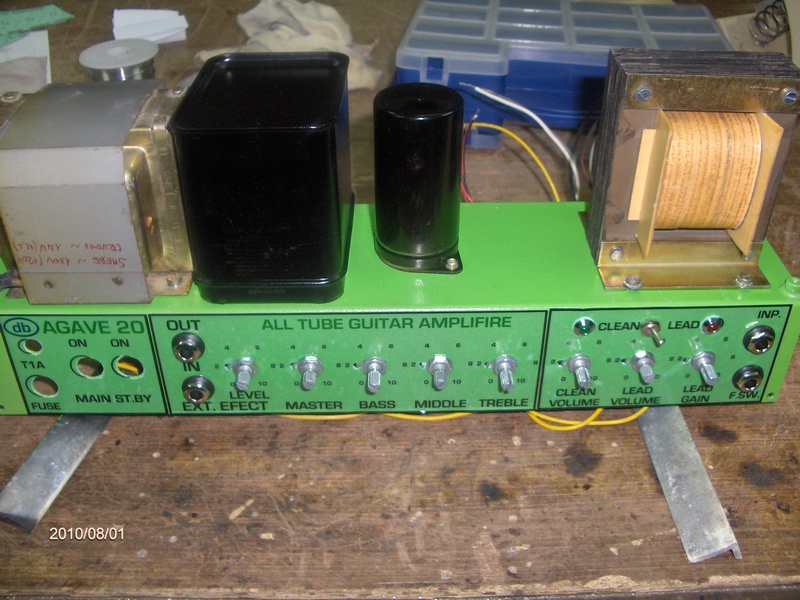

Faceplate was created with "Card Maker 2.0("Zweckform"-program), and printed with HP-DJ970Cxi (ink-jet) on common office paper (80gr.). Glue was transparent spray lacquer on chassis first, than on paper for protect color and printing.



[costis_n]

Do Croatians wear Crocs?



[davorin]

Do Croatians wear Crocs?

??



[costis_n]

??

I just saw your foot in a photo, that's all.



[davorin]

Hi!
Good isolator to prevent electric shock!
Sorry for my amateur photos!



[Test Electrix]

Great looking amp and looks really well built! Do you have any sound clips of it working? It's just that the pre-amp uses valves different from the ubiquitous commercial use of ECC81 and ECC81s and I'm interested to hear the results



[davorin]

No, amp is now testing at my friend (much better guitar player than me!), but I'll tray record some clips when amp back to me.



[jjman]

Cool amp.

Can you explain the effect level control. It looks like it actually adjusts a parallel "dry" path? I employed a parallel loop in my amp but could not find any schematics. I used a "blend" control to combine the paths after the loop (and a boosting stage immediately after the effects.)

Is there a standard name for the approach you are using for the loop and it's adjustment? Is it based on a particular amp? Is the signal it sends out to the effects unit too strong if the preamp is set high?



[davorin]

Effect level control simple shorting cut more or less any signal from effect input to output. Works good with any line level (or higher level signal) effect.



[costis_n]

The photos may not be the best quality, but your building skills are inspirational. You managed to make all this almost without a pcb! Do you have a sketched layout? I am also starting to make a small push-pull guitar amplifier.



[davorin]

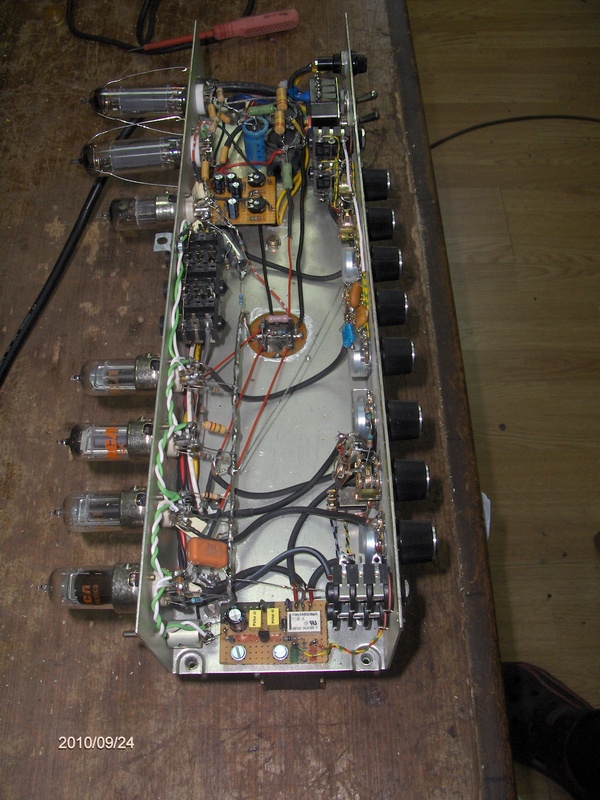

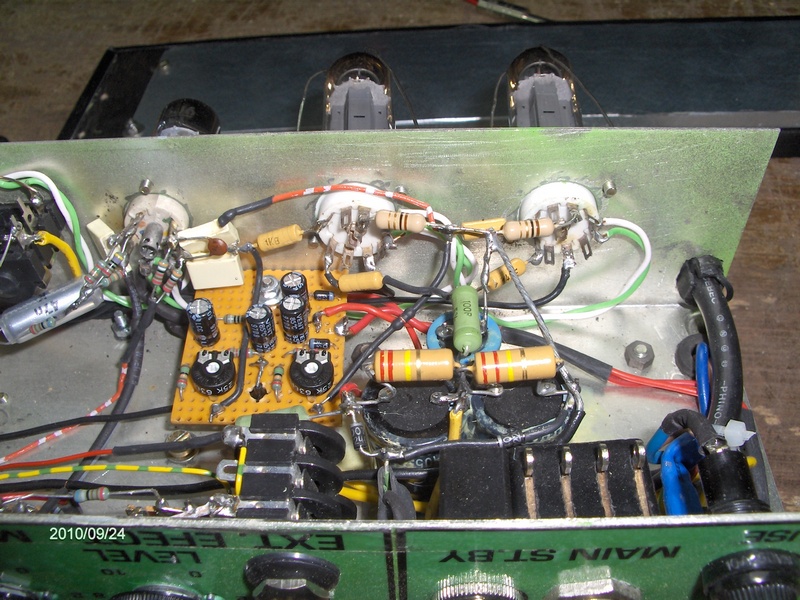

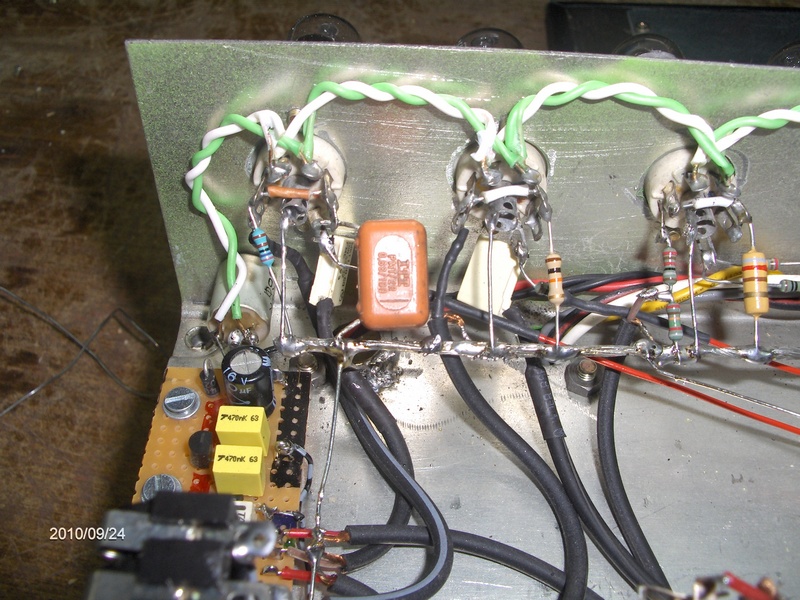

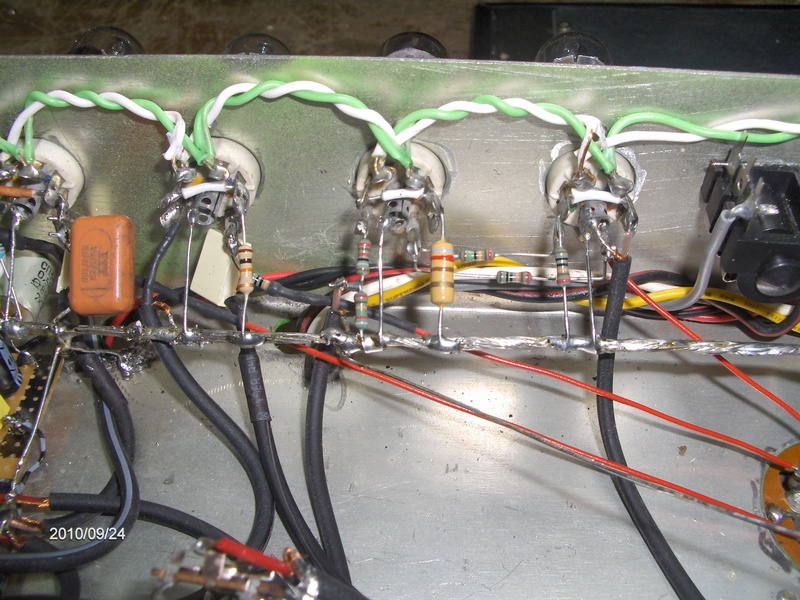

No, I did not sketched layout. 2 small board in amp are not PCB, only board with hole raster. Parts on the boards are soldered and connect with wires.



[taj]

Cool amp.

Can you explain the effect level control.

That's "Efect". gotta use the lingo, man!

..Todd
