DC Servo MOSFET Amplifier

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.

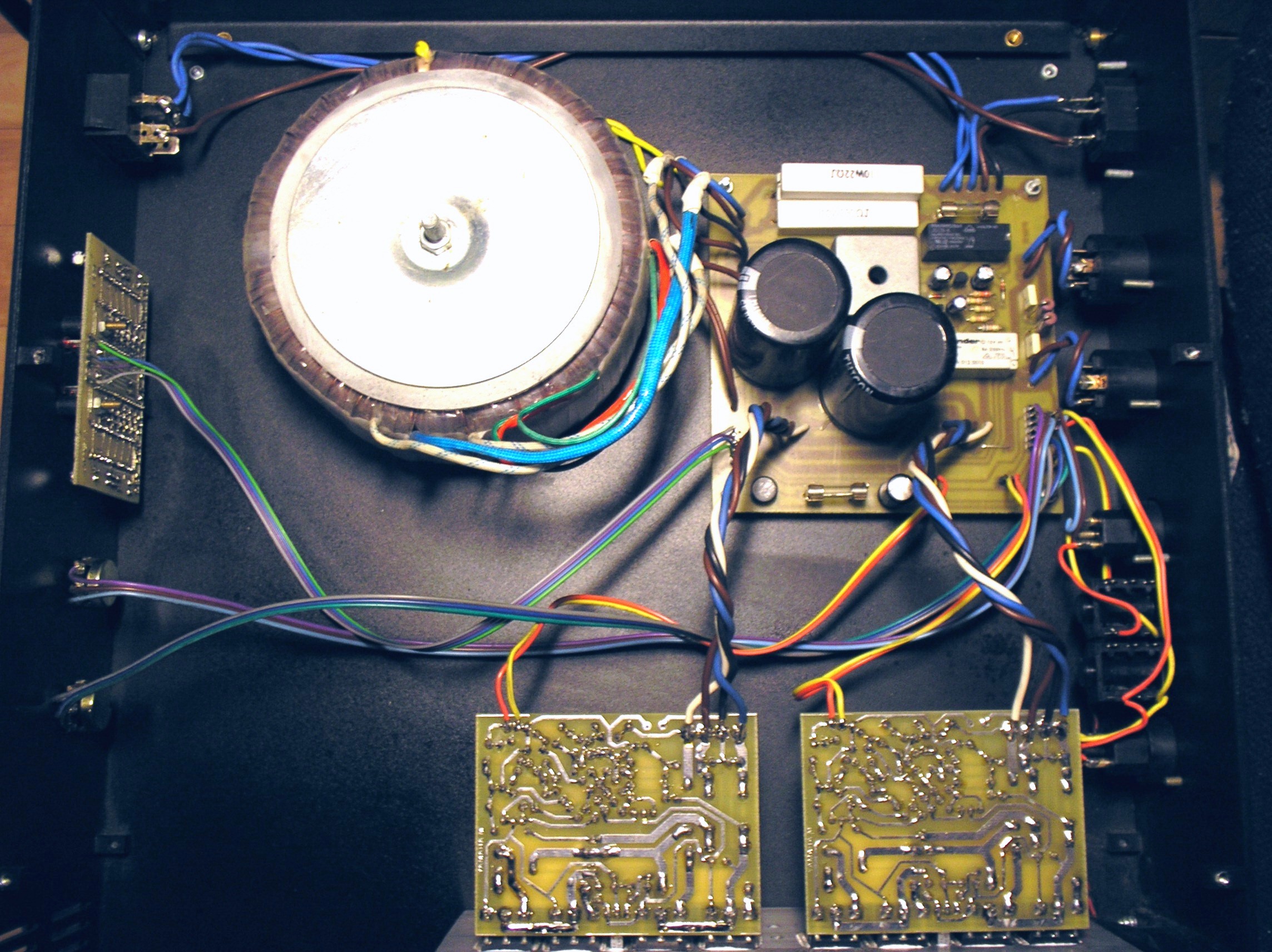

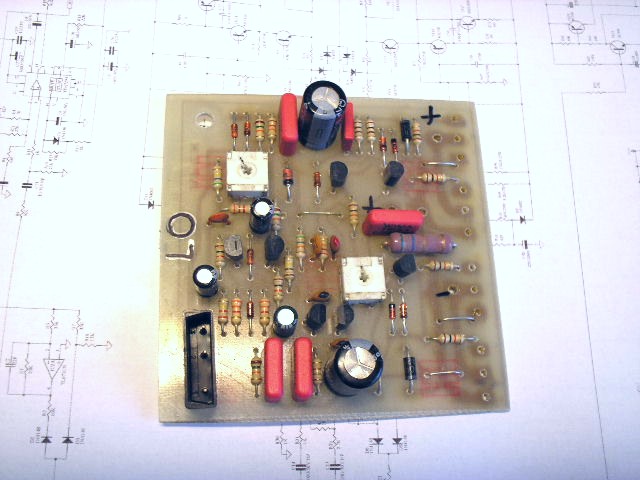

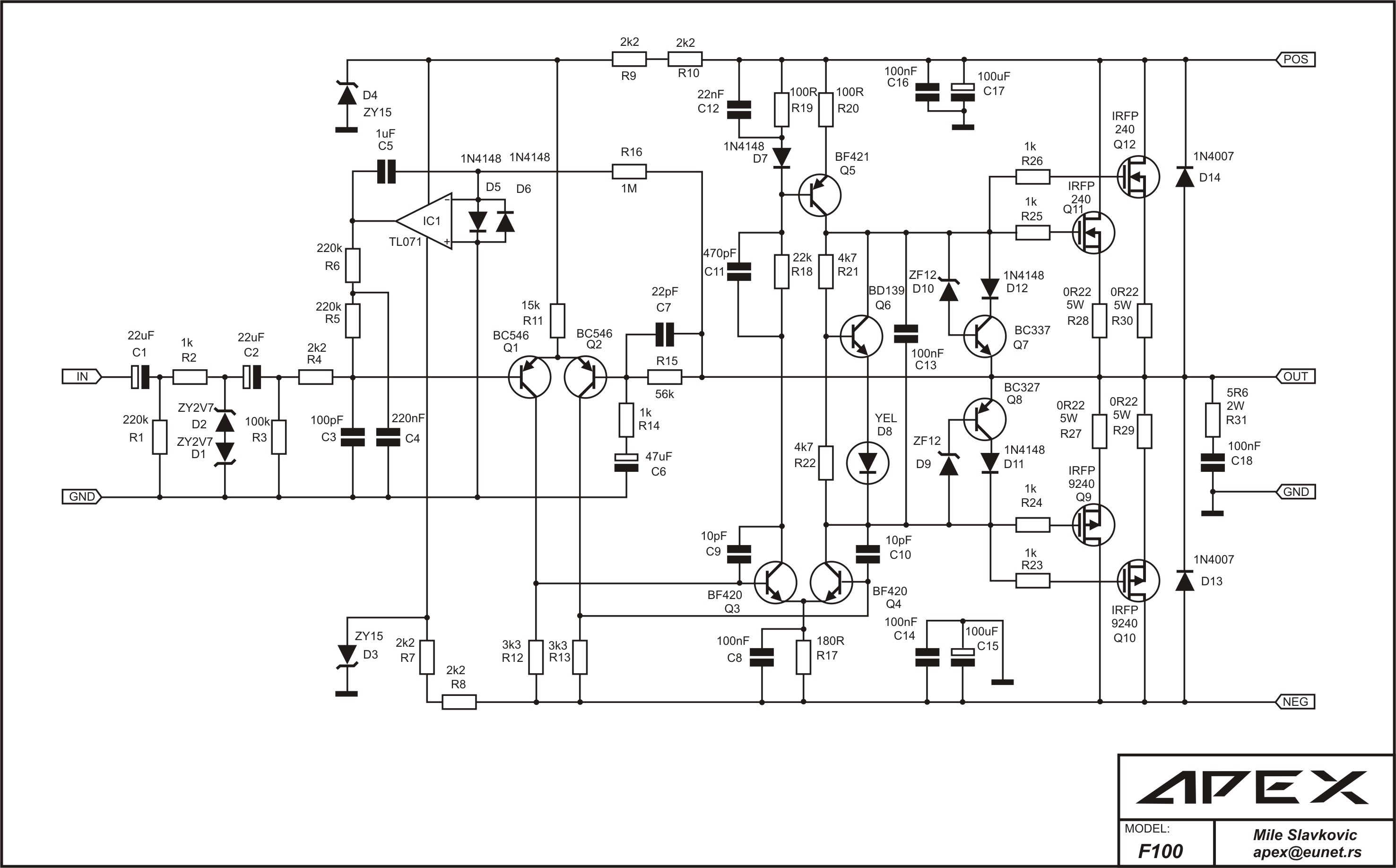

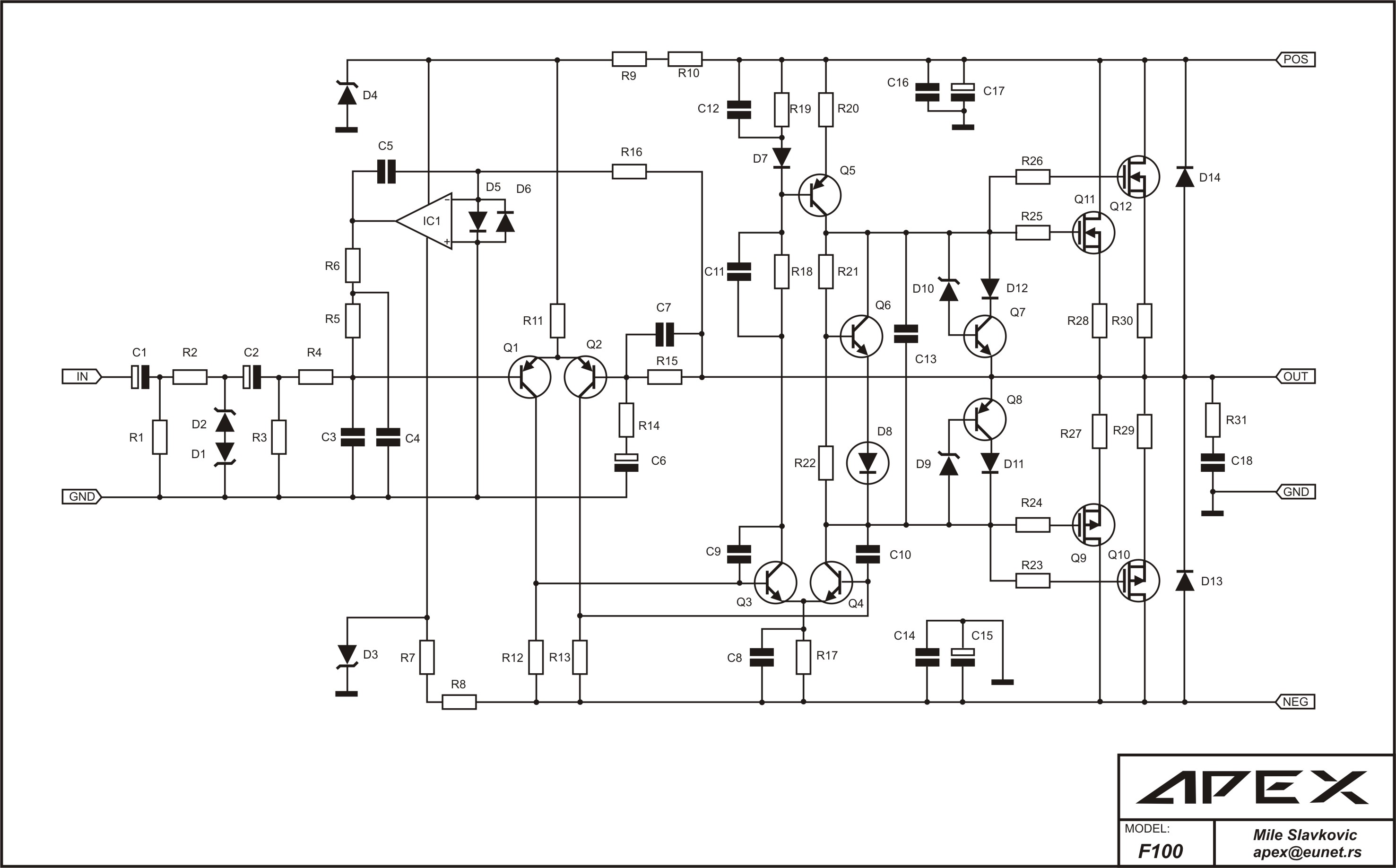

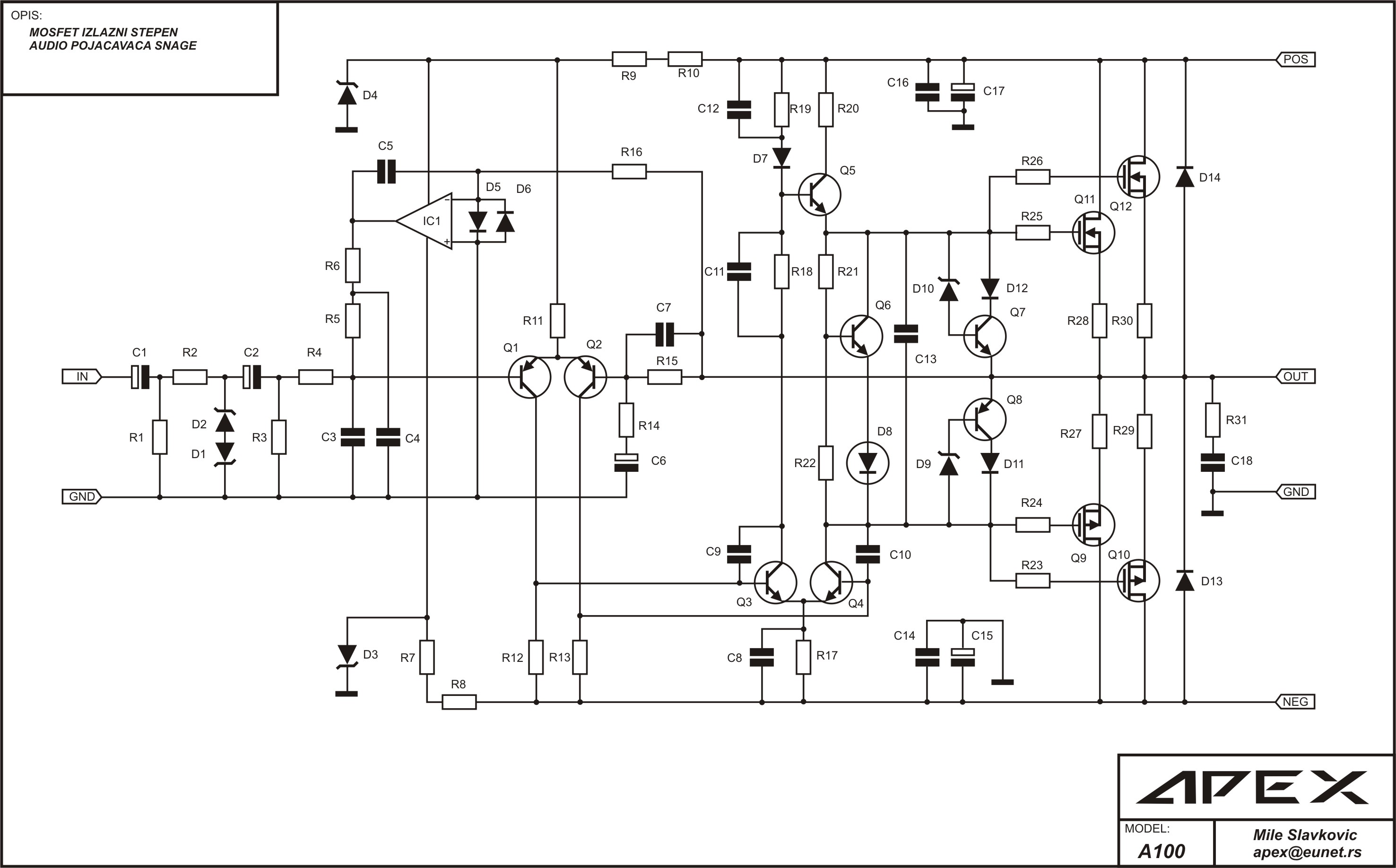

Amplifier with no adjust (offset, bias) +/-60V. Simple to build, no oscilation, hum and noise. Praktik, usuful and good sound.


Attachments

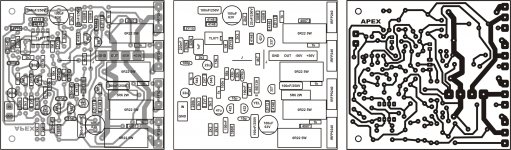

  • HarissonDC.jpg
    303.6 KB · Views: 14,568
  • Miniharisonsch.jpg
    298.1 KB · Views: 14,723
Member
Joined 2009
Paid Member
Basic 20 years old simple design, but:

Can't do without BIAS adjustment.... Unless you want pure class B :)

Q5 should be PNP.
Drop Q7 & Q8, need just zener and diode in series.

And either:

A) drop the DC servo (just ensure Q1/Q2 get matched bias current) or
B) drop all the electrolytic capacitors in the signal chain


Soren

Member
Joined 2009
Paid Member

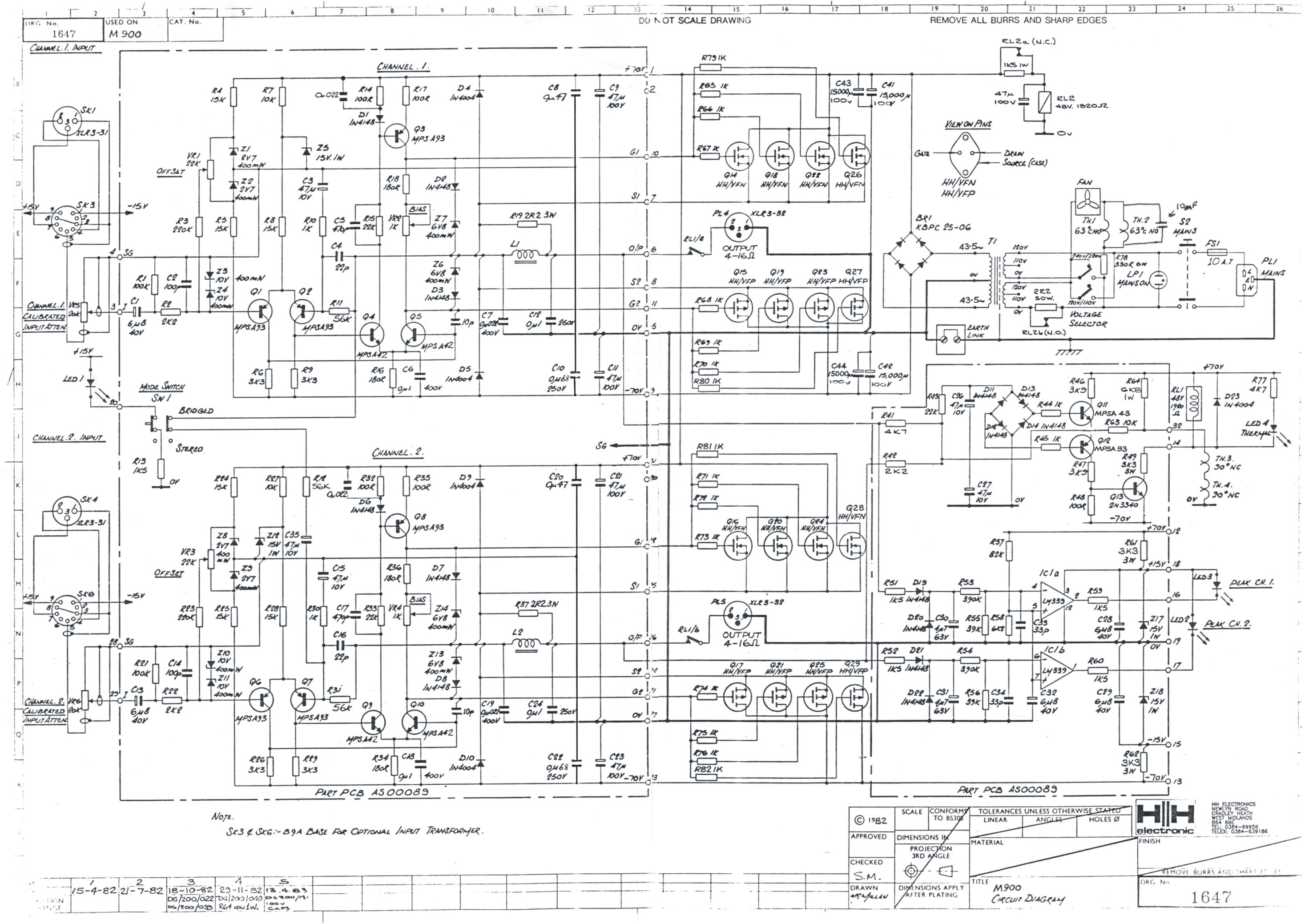

Q7 and Q8 using HH and Harisson in similar design, give beter protection.

No, their function would be minimal, if you want better protection put in a proper VI current limiter.

Amplifier work in class B but there is 3V on gate and no crossover distorzion.

Incorrect. YOU might not be able to measure it, or YOU might not be able to hear it if just driving the bass speakers.... But I would never want to listen to it.

DC servo just subsitute trimpot for manuel offset adjust.

A correct designed transistor input stage with no DC gain (as when having those capacitors in the signal chain) will have very low offset voltage needing no trim, so the DC servo would basically be waste of parts....

You only really need a DC serve if the amplifier is DC coupled.

Soren

Just one question
Why do you bother posting amplifier design with wrong schematic? Just to complicate normal diy-ers life?
There is nothing I hate more than a published design with intentionally WRONG schematic or PCB. You know how they say "you want it you buy it".
If you dont want people to recreate the design just keep it private.
I have a friend that designs amplifiers and he does the same thing....puts mistakes on the schematics....often he accidentally send me the WRONG schematic....what a pain in the "head".
Now every time I try something new I have to ask experts "is it ok?"
I've seen you posted a lot of designs and I appreciate your effort but please try to post correct schematic and pcb from beginning. It would help all new guys that want to build an amplifier after your design.
I was thinking to make your mosfet(the one with 4 pairs) design but seeing so many "mistakes" on your postings made me reconsider.

Last edited:
This schematics is for example, give ideas and information for experts, this are not DIY project or KIT-s. If you want to use something for your own project I give you all information and help, and no mistake. This old schematics was change at the time to time, and redraw mistake are accidentaly.
Sorry if this schematics are confuse you, just ask me I explain to you.
Regards

Auto offset

When you have a capacitor (C6) that shouldn't be there if the servo works at all?? The point of a servo is to eliminate the dreaded bipolar (usually) 'lytic cap in the feedback path, IMHO.

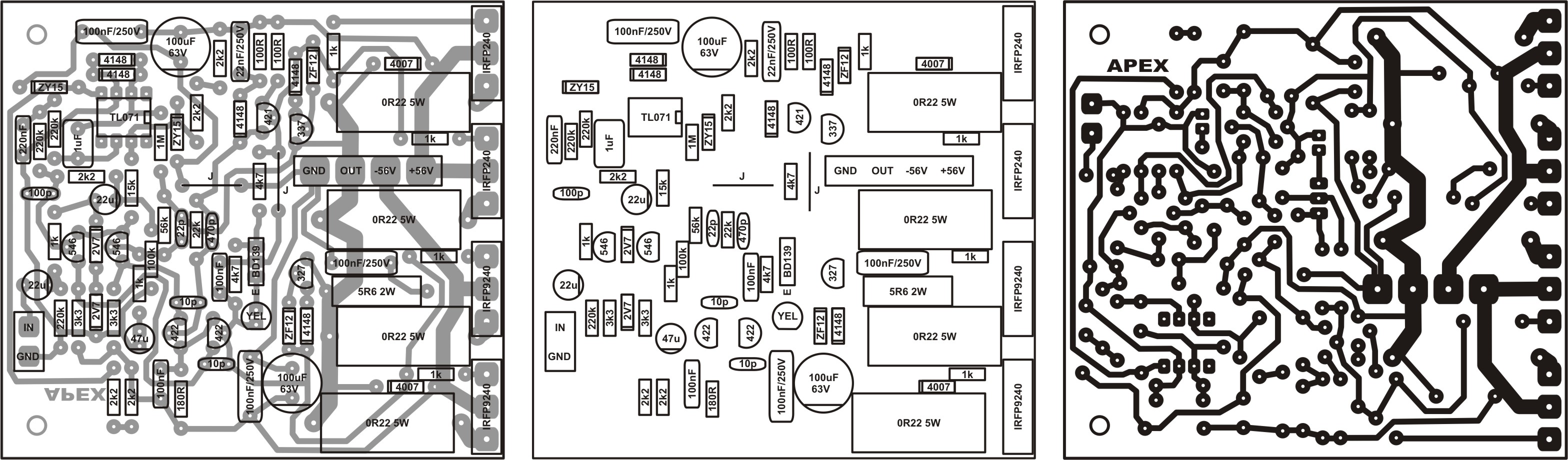

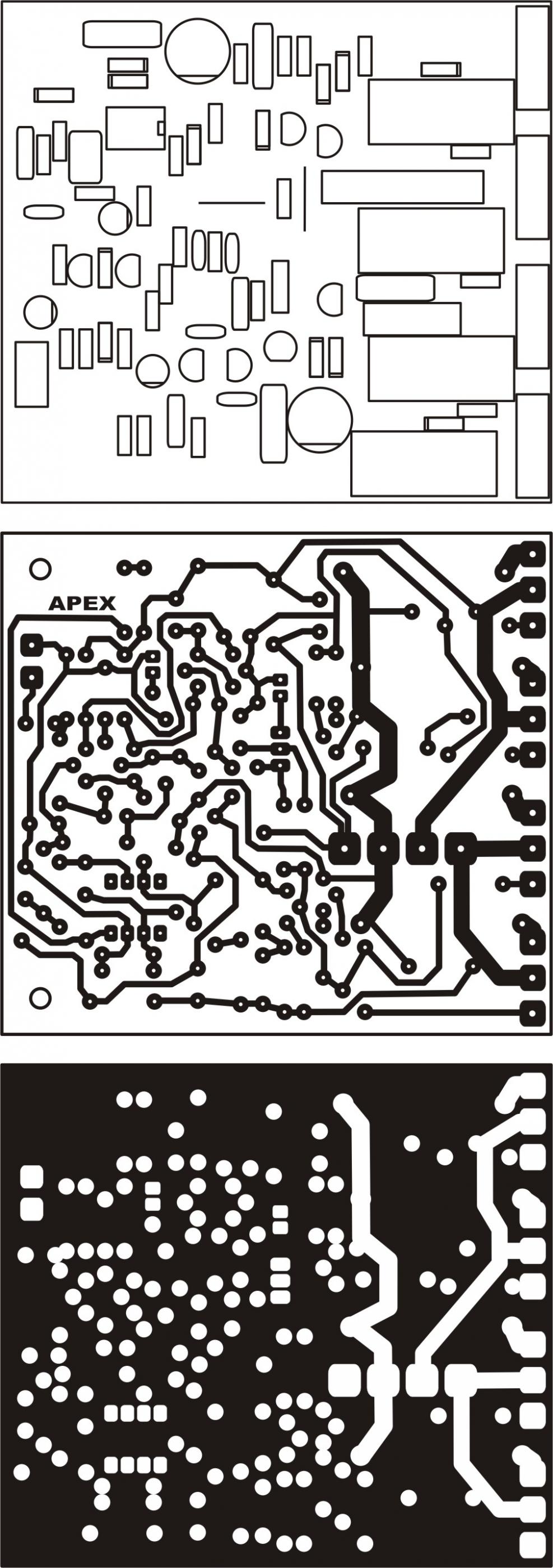

I give wrong name, let it be Auto offset. For home aplication R1,R2,C1,D1,D2 can be removed, and BD139 put on heatsink for AB setup. Bias can adjust with variable resistans of R22. PCB can be used for similar circuit... DIY is a hobby, have fun.

Hi ApexAudio,
I have to admit I totally agree with butch_vlad.
Here you say "this are not DIY project or KIT-s" and then you say "This amp is for beginer and for hobby" and "DIY is a hobby, have fun".
The number of "wrong" and amended schematics/pcb's s to big to have a DIY ever complete one of your proposed amps.
Better to start the header with "Experimental and not ready".
But I do appreciate the effort in bringing so much up.
A bit more care and we all enjoy your contributions.
Cheers,

Nothing is " Experimental " all project which I share was my old project 100% functional. I made every of this amplifier for many years. Many shematics was lost at the time, but PCBs layout have no mistake. If you are interesting for any of my project be sure that I explane you, just ask me what you interesting. I not sell you a KIT, you must cooperate if you want DIY something.
Regards

Last edited:
