Arrow EAMP08 RC headphone amplifier. TPA6120 based.

Hello all,

Some times ago, i have designed a little headphone amplifier for me and some of my audio enthusiast friends. It's name is EAMP08.
A that time, i was thinking built some others but i had never find the time to finish them.
So now, i have many bare PCB of this project and also all parts for about ten.
I precise that this is not a commercial project.

The main features are :
_Texas Instruments TPA6120 headphone output driver.
_Analog Devices AD8599 input buffer.
_Cirrus Logic CS3310 digital volume control.
_RC5 programmable remote control for mute and volume.
_115 or 230Vac input voltage.
_Line and line out (to control volume of power amplifier).

Below, some documents and photos of this project.
EHAMP08 functional synoptic.
EHAMP08 Schematic.
EHAMP08 Manual.

The printed circuits board.
Click the image to open in full size.

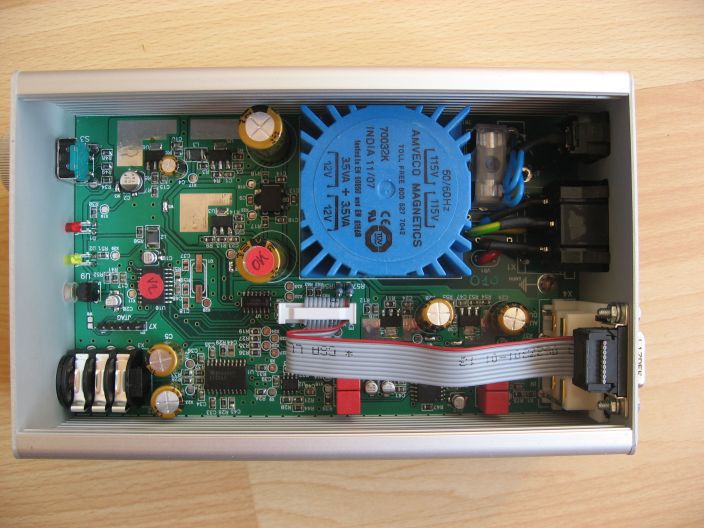

The Amplifier internal view.
Click the image to open in full size.

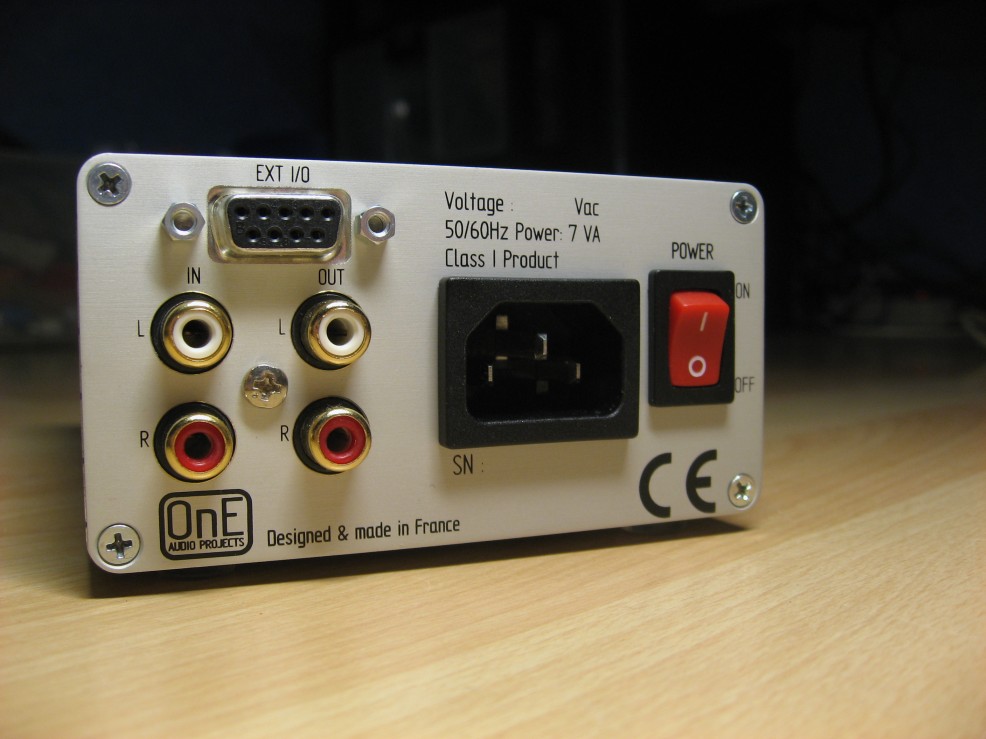

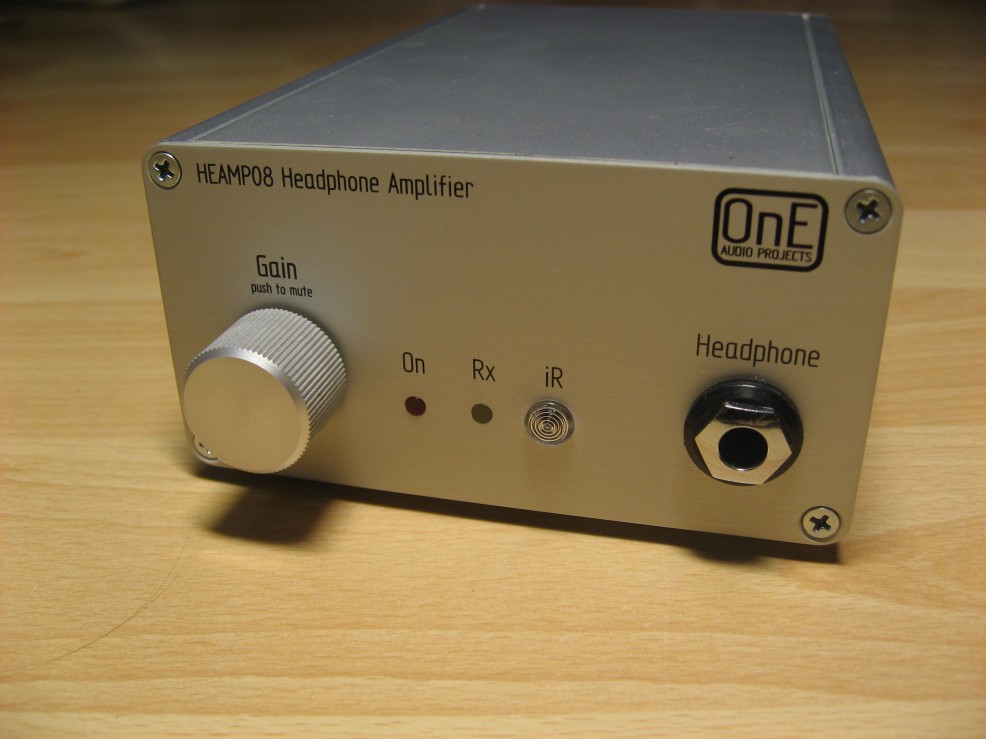

A complete and finished amplifier.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.


If DIYers are interested, i can sale bare PCB (with the TPA6120 already soldered), and also parts kit including drilled enclosure.
Note that the amplifier include a micro-controller that need a PIC IC programming hardware !(like PICkit or ICD2..)

The price for one PCB including the TPA6120 pre-soldered and the worldwide shipping will be 15.
I will send also with all bare PCB, a full zipped folder where you will find all you need to build the project.
If you look for a complete kit including all parts and drilled enclosure, please PM me.
Regards.

If you have any question about the design, don't hesitate !

Frex.




Regards.

Frex
  Reply With Quote
Old 18th March 2012, 09:58 AM   #2
Nisbeth is offline Nisbeth  Denmark
diyAudio Member

Nisbeth's Avatar

Join Date: Jan 2001
Location: Denmark
Looks very nice, and if I didn't have a million unfinished projects already I would be very interested

One question: Where did you get the lens for the IR diode?

/U.
  Reply With Quote
Old 18th March 2012, 11:39 AM   #3
Frex is offline Frex  France
diyAudio Member

Join Date: Nov 2009
Hi Nisbeth,

Thank your for your comment.
The led lens come from here or here.
Regards.

Frex
  Reply With Quote
Old 19th March 2012, 06:54 PM   #4
Nisbeth is offline Nisbeth  Denmark
diyAudio Member

Nisbeth's Avatar

Join Date: Jan 2001
Location: Denmark
Thanks

/U.
  Reply With Quote
Old 19th March 2012, 07:40 PM   #5
Frex is offline Frex  France
diyAudio Member

Join Date: Nov 2009
Arrow EHAMP08 full kit info

Hello,

Some infos about the kit;

The EHAMP08 full kit include :
- The printed circuit board with the TPA6120 pre-soldered.
- All electronics parts.
- The Hammond enclosure (1455N1601) with drilled front and rear panels(no silkscreen),
feet , aluminum button, IR lens, mounting hardware,...
- A complete zipped folder of the EHAMP08, with all needed files including bill of material, silkscreen, schematic, source code of uC and many others files.

It doesn't include :
_The power cord.
_The hole that fix the PCB on the bottom of the enclosure must be made (3mm hole) ( the drilling map is include in zipped folder).


The price for a bare PCB with the TPA6120 IC pre-soldered is 15 .
(include worldwide shipping in priority letter without insurance, and Paypal fees)
For convenience, i can provide also the bare board with the PIC uC already soldered and programmed for additional 10 (including the IC).


The price for a complete kit with the TPA6120 IC pre-soldered and PIC uC pre-programmed is 110
(include worldwide shipping in priority letter without insurance, and Paypal fees)



Don't hesitate if you have any question.
Regards.

Frex
  Reply With Quote
Old 23rd March 2012, 09:38 PM   #6
swalter is offline swalter  Switzerland
life is beautiful...
diyAudio Member

Join Date: Jan 2012
Location: Switzerland
Hi Frex,

You got a PM...

Stefan
__________________
everything O2 and ODAC related can be found here: www.headnhifi.com - your DIY and audio resource
or have a peek in our vendor forum: http://www.diyaudio.com/forums/head-n-hifi-walter/
  Reply With Quote
Old 28th March 2012, 03:30 PM   #7
Frex is offline Frex  France
diyAudio Member

Join Date: Nov 2009
Hi,

Two full kits already sold.
Eight full kits yet available.


For more infos about the EHAMP08 project, see below:
EHAMP08 functional synoptic.
EHAMP08 Schematic.
EHAMP08 Manual.

Frex
  Reply With Quote
Old 30th April 2012, 04:12 AM   #8
Frex is offline Frex  France
diyAudio Member

Join Date: Nov 2009
Arrow EHAMP08 full kit available.

Hi all,

EHAMP08 remote controlled headphone amplifier full kit available.

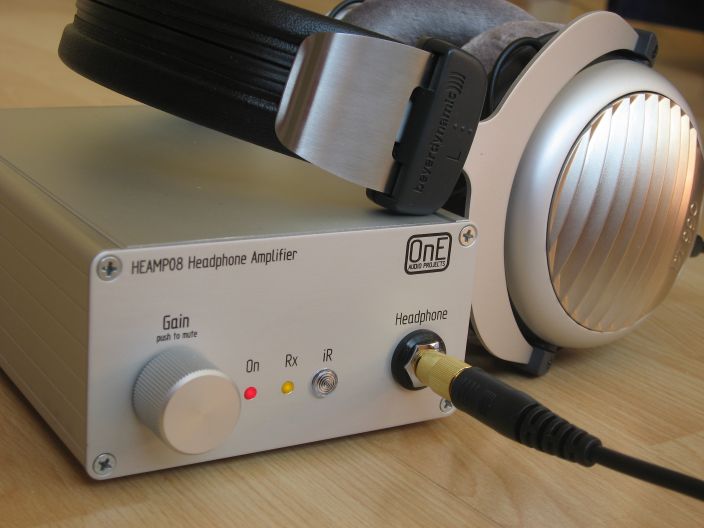

The full kit looks like this :
