Old 20th October 2008, 04:04 AM   #1
diyAudio Member

Wavebourn's Avatar

Join Date: Sep 2006
Location: Pleasant Hill, CA
Send a message via Skype™ to Wavebourn
Question Guess, what is it?

What is it, who knows?

Click the image to open in full size.
__________________
The Devil is not so terrible as his math model is!
  Reply With Quote
Old 20th October 2008, 04:06 AM   #2
infinia is offline infinia  United States
diyAudio Member

infinia's Avatar

Join Date: May 2005
Location: Californication
Was it once known as a planet?

Is that small triangular box on the floor the active amps?
__________________
like four million tons of hydrogen exploding on the sun
like the whisper of the termites building castles in the dust
  Reply With Quote
Old 20th October 2008, 04:40 AM   #3
jol50 is offline jol50  United States
diyAudio Member

Join Date: Nov 2007
Its a paralleled hybrid infusion transponder.
  Reply With Quote
Old 20th October 2008, 04:49 AM   #4
49 - for the 18th time - again!
diyAudio Member

c2cthomas's Avatar

Join Date: Oct 2006
Location: Near "Music City" (Nashville Tennessee)
http://www.linkwitzlab.com/pluto-wa_2.htm

It's a very nice speaker according to several people that have listened to them.

Take a look at the RMAF thread and you will see some very favorable comments. I have not had a chance to listen to this speaker so I am not able to offer any impressions myself.
__________________
DIY audio can be expensive but getting to see things go up in smoke - that's priceless!!!! ..... "whatever - call it brainfart of Mighty ZM"
  Reply With Quote
Old 20th October 2008, 05:39 AM   #5
diyAudio Member

Wavebourn's Avatar

Join Date: Sep 2006
Location: Pleasant Hill, CA
Send a message via Skype™ to Wavebourn
Yes, there are nice speakers. Quite flat frequency response, very good stereo imaging. But rumbles from a turntable caused audible Doppler effect unfortunately, due to huge excursion of small areas.
__________________
The Devil is not so terrible as his math model is!
  Reply With Quote
Old 20th October 2008, 06:34 AM   #6
lineup is offline lineup  Sweden
diyAudio Member

lineup's Avatar

Join Date: Dec 2005
Location: the north
Quote:
All power amplifier stages utilize
the high-performance National Semiconductor LM3886 integrated circuit.
................
The operational amplifiers are Burr-Brown/Texas Instrument OPA2134.
They are quiet and have very low distortion.
Quote:
The tweeter channel has a gain control stage which is linear in dB.
It is followed by the
two stages of a 4th order Linkwitz-Riley highpass filter and
then an allpass for correcting the phase shift
due to offset in acoustic centers between woofer and tweeter.
The notch filter equalizes a peak in the tweeter response.
The last stage is the power amplifier.
http://www.linkwitzlab.com/Pluto/electronics.htm

A typical active system: chip pre crossovers -> chip powers -> drivers.
__________________
lineup
  Reply With Quote
Old 20th October 2008, 05:45 PM   #7
diyAudio Member

Wavebourn's Avatar

Join Date: Sep 2006
Location: Pleasant Hill, CA
Send a message via Skype™ to Wavebourn
It was easy one;

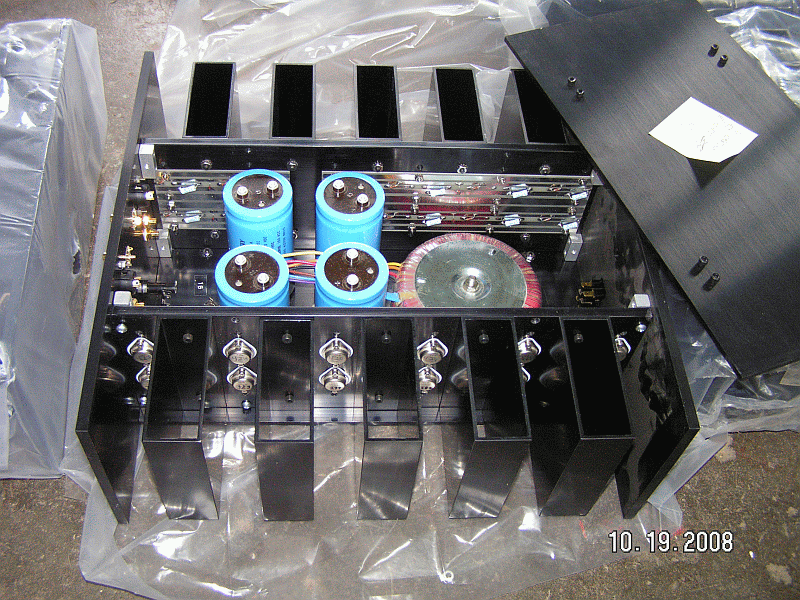

now, what is this? Alcohol was needed for this construction...

Click the image to open in full size.
__________________
The Devil is not so terrible as his math model is!
  Reply With Quote
Old 20th October 2008, 05:56 PM   #8
00940 is offline 00940  Belgium
diyAudio Member

Join Date: Sep 2003
Location: Paris
it's a Nelson Pass amp. He posted pics of that one under construction here : DIY heatsinks

No idea which amp it is though
__________________
Ben.
  Reply With Quote
Old 20th October 2008, 06:05 PM   #9
diyAudio Member

Wavebourn's Avatar

Join Date: Sep 2006
Location: Pleasant Hill, CA
Send a message via Skype™ to Wavebourn
Quote:
Originally posted by 00940
it's a Nelson Pass amp. He posted pics of that one under construction here : DIY heatsinks

No idea which amp it is though
I don't know either that lucky winner who belongs it to now. Nelson brought such unfinished amps to donate to fellow DIY community. Also, he brought many of other goodies, like this nice compact transformers:

Click the image to open in full size.
__________________
The Devil is not so terrible as his math model is!
  Reply With Quote
Old 20th October 2008, 07:57 PM   #10
diyAudio Member

Wavebourn's Avatar

Join Date: Sep 2006
Location: Pleasant Hill, CA
Send a message via Skype™ to Wavebourn
One more mystery item...

Click the image to open in full size.

Click the image to open in full size.
__________________
The Devil is not so terrible as his math model is!
  Reply With Quote
