Default non os measurement

This is about a partially filtered non os DAC.

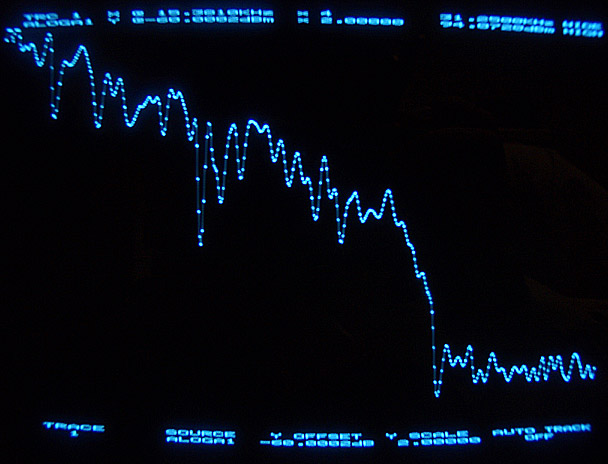

First, music signal from an oversampling CD player, 31 kHz analyzer bandwith.
It can be seen the CD bandwith limitation of 22,5 kHz.

Click the image to open in full size.

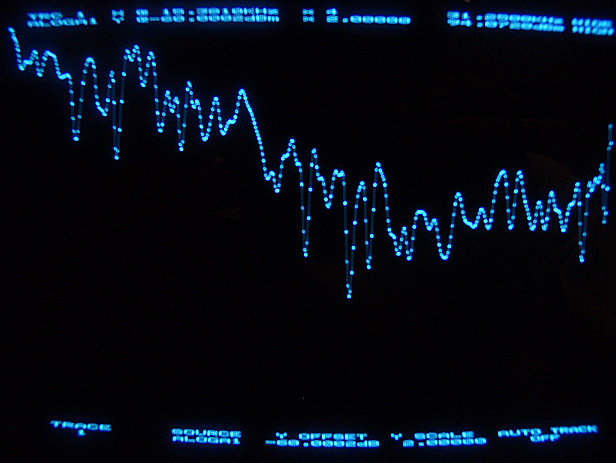

Now the transformer + cap filtered non os DAC.
The empty space above 22,5 kHz is filled with harmonics.
Non os gives back a little of what the CD format has taken away.

Click the image to open in full size.

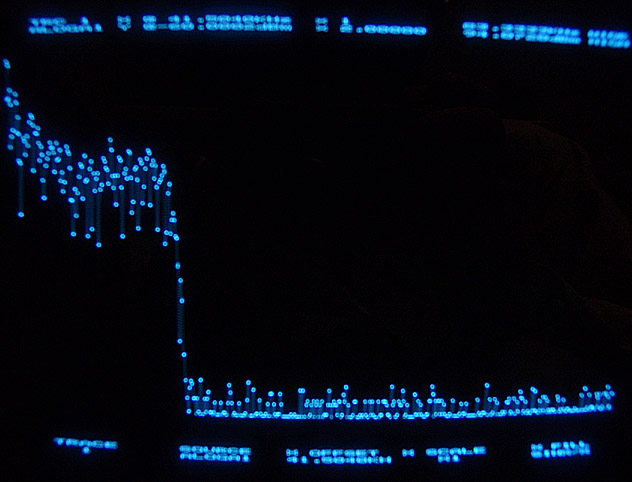

Pink noise from CD with oversampling, 83 kHz analyzer bandwith.

Click the image to open in full size.

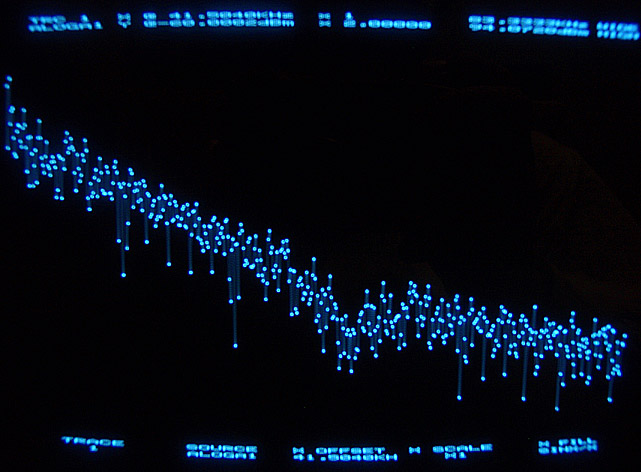

Pink noise from CD with non os DAC.
It can be seen, at 80 kHz HF is pretty much down.
That should not be a problem for a good amplifier.

Click the image to open in full size.
  Reply With Quote
Old 13th September 2006, 12:50 AM   #2
diyAudio Member

Bernhard's Avatar

Join Date: Apr 2002
Location: Munich

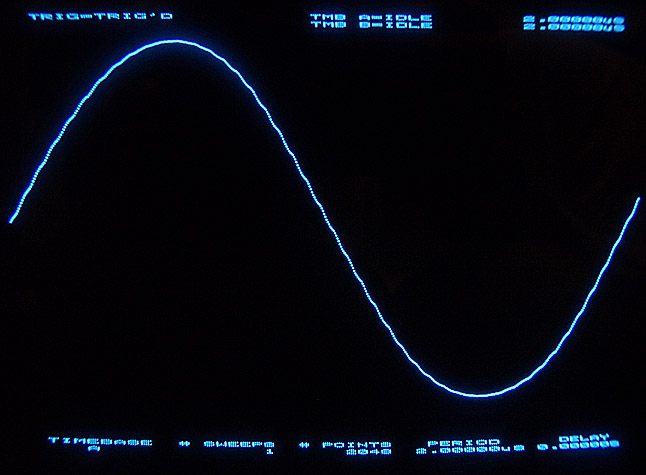

1 kHz full scale sine non os.
There is the rest of the HF visible.

Click the image to open in full size.

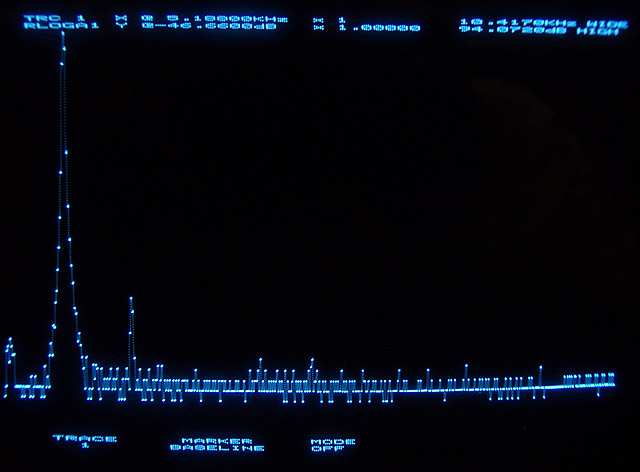

FFT of the sine, analyzer bandwith 10 kHz, 94dB vertical scale.
The k2 harmonic is caused by the passive I/V.

Click the image to open in full size.

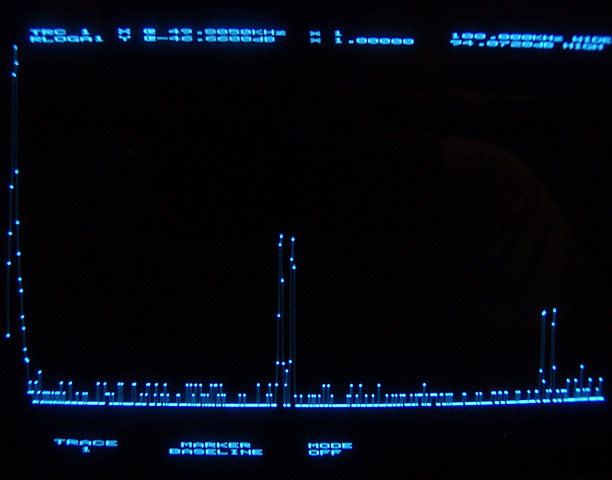

Same with 100 kHz analyzer bandwith, the 44,1kHz and 88,2 kHz are split, jitter

Click the image to open in full size.
  Reply With Quote
Old 13th September 2006, 06:24 AM   #3
Werner is offline Werner  Europe
diyAudio Member

Join Date: Jan 2002
Location: Belgium
Quote:
Originally posted by Bernhard
The empty space above 22,5 kHz is filled with harmonics.
Non os gives back a little of what the CD format has taken away.
These aren't harmonics, and thus these aren't what 'the CD format has taken away'.


Quote:
Originally posted by Bernhard
Same with 100 kHz analyzer bandwith, the 44,1kHz and 88,2 kHz are split, jitter

Baseband frequency f creates images at every N*fs+f and N*Fs-f,
so 1kHz has images at
44.1kHz-1kHz
44.1kHz+1kHz
88.2kHz-1kHz
88.2kHz+1kHz
...
  Reply With Quote
Old 13th September 2006, 09:12 PM   #4
diyAudio Member

Bernhard's Avatar

Join Date: Apr 2002
Location: Munich
Quote:
Originally posted by Werner

Baseband frequency f creates images at every N*fs+f and N*Fs-f,
so 1kHz has images at
44.1kHz-1kHz
44.1kHz+1kHz
88.2kHz-1kHz
88.2kHz+1kHz
...
Thanks

Still, there is something above 22 kHz and maybe it makes a difference. Perhaps.
  Reply With Quote
