Question How does that circuit work ?

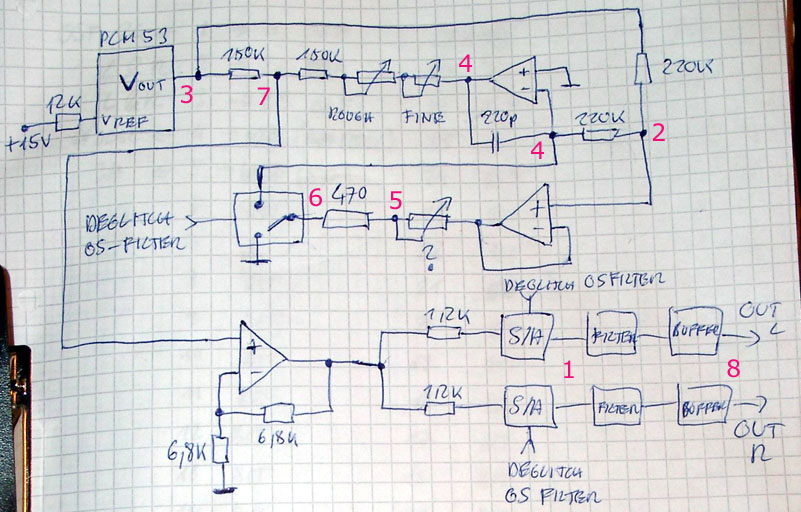

This is from my TEAC ZD700, 1 DAC chip for both channels, the three pots adjust noise on low level signals.
Switches are 4053.
To me it looks like those 150k form a bridge and in the middle noise is cancelled, but how ?

By the way, the output of this player is DC coupled - no caps.

Click the image to open in full size.
