Hello everybody,
Wich lm3886 stereo kit or bare PCB can you recommend ?
Modulus 86 boards seems interresting, but too expensive IMHO.
Wich lm3886 stereo kit or bare PCB can you recommend ?
Modulus 86 boards seems interresting, but too expensive IMHO.
Hi P....,
Modulus 86 is a very good way, maybe the best way for LM..
Cheaper, kit from Chipamp.com :
http://www.diyaudio.com/forums/chip-amps/265827-lm3886-fullrange.html
What is your speakers today ?
Phil.
Modulus 86 is a very good way, maybe the best way for LM..
Cheaper, kit from Chipamp.com :
http://www.diyaudio.com/forums/chip-amps/265827-lm3886-fullrange.html
What is your speakers today ?
Phil.
Having built one of the X-Y ebay kits, I can say that they do indeed function, and I'm pretty happy with the sound. There are probably 1000's of posts on the board about this.
In hind sight, I think I would have rather gone for the chipamp.com kit mentioned above as after all my readings, I think the PS board is better.
YMMV as they say on the boards.
Dave
In hind sight, I think I would have rather gone for the chipamp.com kit mentioned above as after all my readings, I think the PS board is better.
YMMV as they say on the boards.
Dave
Hi Phil,
I'm planning to build the Elsinore from Joe Rasmussen this summer, a kind of upgrade 🙂
Best regards,
Pascal
My speakers are still the Nomex 164 from TG.What is your speakers today ?
I'm planning to build the Elsinore from Joe Rasmussen this summer, a kind of upgrade 🙂
Best regards,
Pascal
Hi Pascal,
LM3886 "fullrange" will be fine with the Elsinore, it can get about 55 watts..
Total cost is between 200/300 euros, depends of quality of case, connectors and so.
Two guys built this amp with sucess, and I can help you to find components.
Regards.
Phil.
LM3886 "fullrange" will be fine with the Elsinore, it can get about 55 watts..
Total cost is between 200/300 euros, depends of quality of case, connectors and so.
Two guys built this amp with sucess, and I can help you to find components.
Regards.
Phil.
Hi Pascal,
If you are going to build Joe's speakers..... then his "current" amplifier would be the logical or even the only choice....
I have a First Watt F1J current amp and it's just amazing.... my speakers are REF3A Episode and it works superbly with them. I will not change my amp....ever...
regards
If you are going to build Joe's speakers..... then his "current" amplifier would be the logical or even the only choice....
I have a First Watt F1J current amp and it's just amazing.... my speakers are REF3A Episode and it works superbly with them. I will not change my amp....ever...
regards
Hi,
I don't knaw nothing about Joe Rasmussen "Trans-Amp", but it use LM3875, basically 3875 don't works with 4 Ohm load, except with very low power and low distorsion..
What power with Trans-Amp in 4 ohm load ?
Phil.
I don't knaw nothing about Joe Rasmussen "Trans-Amp", but it use LM3875, basically 3875 don't works with 4 Ohm load, except with very low power and low distorsion..
What power with Trans-Amp in 4 ohm load ?
Phil.
I also own a linear 2X38v PSU And an 1U case, I'm thinking of buying two Hypex UCD 180 HG amp module has an alternative. Any advice ?

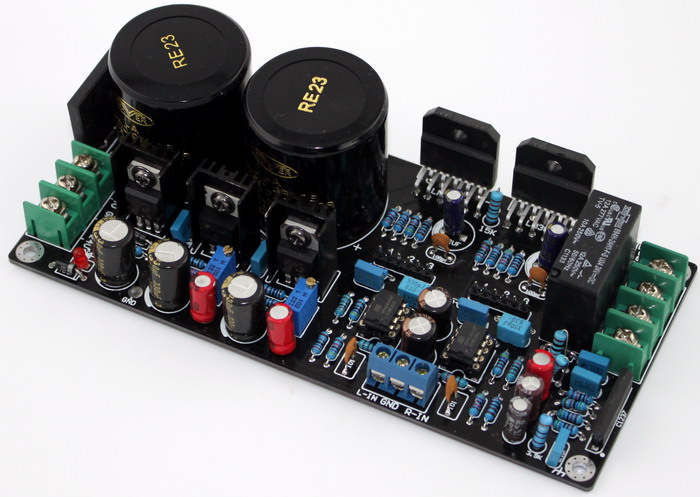

Has anyone tried one of these Chinese amps from Aliexpress? I figured I would give the LM3886 a try with this $40 entry. This one has an OPA2604 and speaker protection relay.
Wholesale Product Snapshot Product name is YJ LM3886+OPA2604 68W+68W Amplifier completed board + sound effect +Speaker protect
Wholesale Product Snapshot Product name is YJ LM3886+OPA2604 68W+68W Amplifier completed board + sound effect +Speaker protect

You may want to consider this from an American seller. Yuan-Jing has a good track record but I have never tried this board. I have built both the 3875 and 3886 amp and with my system the 3875 sounds better.
Yuan-Jing 2 x 68W LM3886 + NE5532 Audio Amplifier Board
Yuan-Jing 2 x 68W LM3886 + NE5532 Audio Amplifier Board
Thanks for the tip. The one I ordered uses a different op amp and has a relay for speaker pop protection. I ordered it already so just a matter of time before trying it.
Thanks for the tip. The one I ordered uses a different op amp and has a relay for speaker pop protection. I ordered it already so just a matter of time before trying it.
For the money the 3886 is a good amplifier. It sounds perfectly fine on a pair of cone speakers I use in my kitchen. On my main horn system the 3875 sounds better. I used this preamplifier for a while with the 3886 and it makes for a good system. Not a bad preamplifier for the money.
Little Bear P3 6N3 Tube Valve Preamp Amplifier Preamplifier Class A New Ver1 2 | eBay
Not sure if there are any available still, but search for Pavel and the PA-03. There was a group buy several months ago. Not sure what the status is now. This is a very good implementation of the LM4780 (dual 3886), and the PCB has an excellent layout. I am very pleased with how it sounds.
If you're looking for a complete kit (enclosure, regulated power supply, all connectors, screws, and fittings)...
GT-101 Stereo Power Amplifier
GT-101 Stereo Power Amplifier
Thanks for the tip. The one I ordered uses a different op amp and has a relay for speaker pop protection. I ordered it already so just a matter of time before trying it.
The amp arrived today, looks well made. It has a couple of Burr Brown op amps on the front end. I was thinking of powering it with two 19v SMPS laptop bricks - will that work to just try out, albeit not at max power capability?

There appears to be a 3-position jumper in front of the chip amps, I wonder if that is used to set the gain via resistor network?
Attachments
LM3886 Works Great with Dual 19v SMPS
I just hooked up a pair of $6 19v 4.65amp SMPS laptop bricks in series for a +/-19v dual rail supply. I had an old massive Pentium solid copper CPU heatsink lying around so drill & tap a couple of 8-32 threaded holes and screwed the chips on tight. Hooked it up to my full range PA130-8 drivers mounted in a Karlsonator. Listening to some Miles Davis right now. Sounds great! The speaker protection relay works - no popping. I think this is a great buy at $40. Skipping the big iron toroidal 24v trafo ($60) is a nice bonus. I think I have plenty of power with the two 19v bricks. 😀
Subjectively, this amp sounds very nice. 🙂
I just hooked up a pair of $6 19v 4.65amp SMPS laptop bricks in series for a +/-19v dual rail supply. I had an old massive Pentium solid copper CPU heatsink lying around so drill & tap a couple of 8-32 threaded holes and screwed the chips on tight. Hooked it up to my full range PA130-8 drivers mounted in a Karlsonator. Listening to some Miles Davis right now. Sounds great! The speaker protection relay works - no popping. I think this is a great buy at $40. Skipping the big iron toroidal 24v trafo ($60) is a nice bonus. I think I have plenty of power with the two 19v bricks. 😀
Subjectively, this amp sounds very nice. 🙂

Attachments
Listen to this LM3886 amp in blind test
You can listen to this amp in a blind test of XO topologies here:
http://www.diyaudio.com/forums/multi-way/277691-s-harsch-xo-4.html#post4407112
Sound clips (change .asc to .mp3 to listen):
http://www.diyaudio.com/forums/attachments/multi-way/496341d1438327484-s-harsch-xo-clip-2-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496342d1438327492-s-harsch-xo-clip-2-b-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496343d1438327503-s-harsch-xo-clip-3-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496344d1438327514-s-harsch-xo-clip-3-bxo.asc
Can you hear the difference between this:
and this:
given that their step responses look like this:
and phase looks like this?

You can listen to this amp in a blind test of XO topologies here:
http://www.diyaudio.com/forums/multi-way/277691-s-harsch-xo-4.html#post4407112
Sound clips (change .asc to .mp3 to listen):
http://www.diyaudio.com/forums/attachments/multi-way/496341d1438327484-s-harsch-xo-clip-2-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496342d1438327492-s-harsch-xo-clip-2-b-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496343d1438327503-s-harsch-xo-clip-3-xo.asc
http://www.diyaudio.com/forums/attachments/multi-way/496344d1438327514-s-harsch-xo-clip-3-bxo.asc
Can you hear the difference between this:

and this:

given that their step responses look like this:

and phase looks like this?
