The new Tube-I-zator V2.0
Click on image to view larger image

Previous image   Next image


Photo Details
dvb projekt


diyAudio Member

Registered: February 2009
Location: Willich, Germany
Posts: 1,481
users gallery

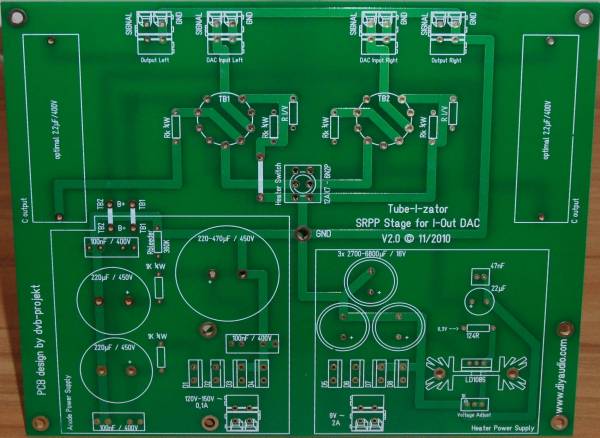

The evolution brings the following changes:

- Heater Switch without any relays
- Low ESR Heater PSU (e.g. Panasonic FM)
- Star Grounding
- Mounting holes for the HV-Salas Shunt Module
- Compacter design


Material: FR4 - 2mm
Layers: 2
Board size: 193x157 mm
Surface finish: Immersion Gold
Copper weight: 70m
Soldermask: Both sides - green
Silkscreen: Legend on top
Date: Sat January 8, 2011
