Marantz SR2285B Receiver : Phono Stage Model Response

Posted 19th March 2013 at 06:02 AM by rjm
Updated 20th March 2013 at 01:54 AM by rjm

Mid-range 1970's stereo receiver.

I was curious to find out a) what the phono circuit was, and b) how tight the RIAA response might have been.

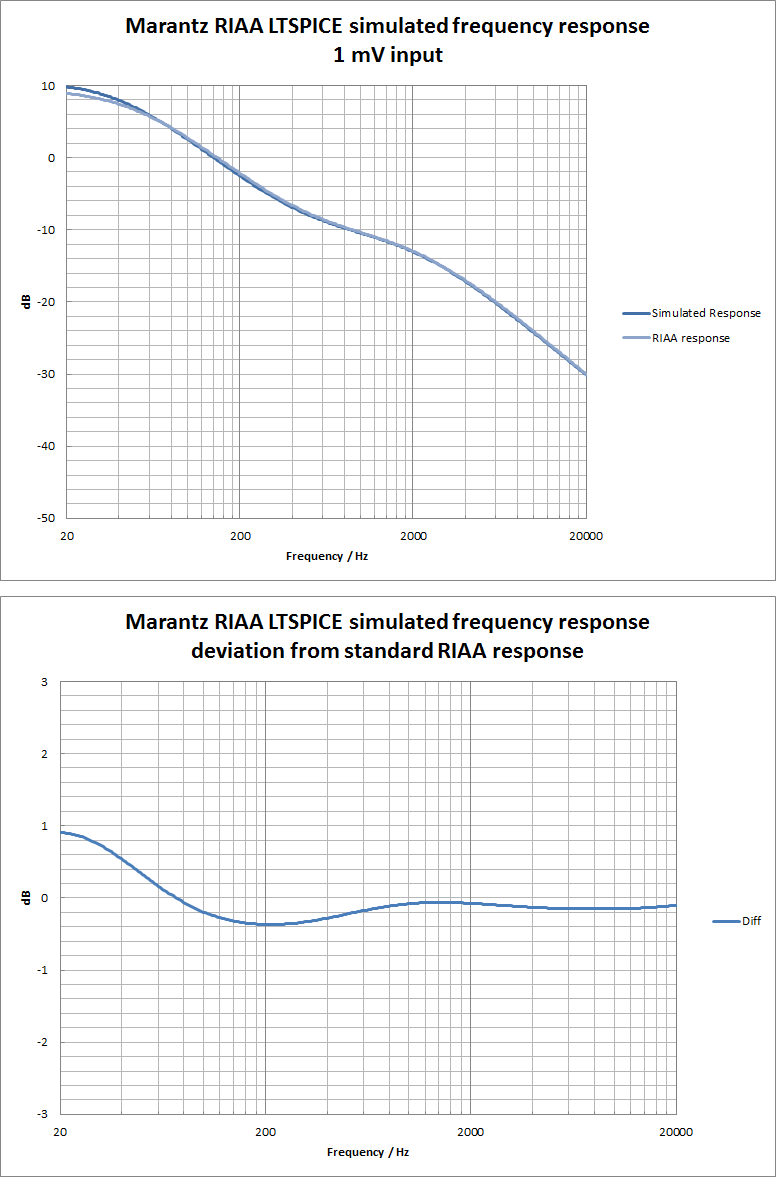

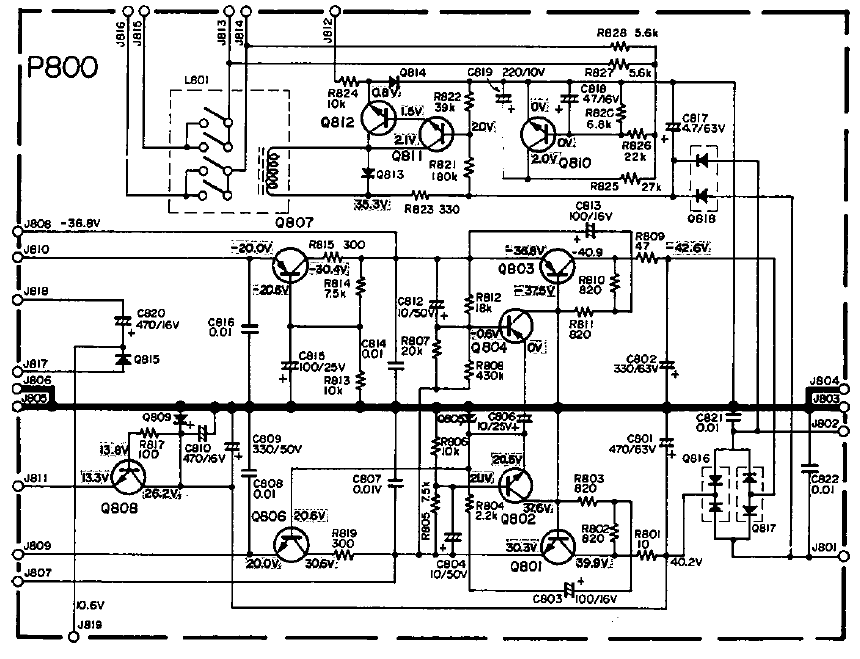

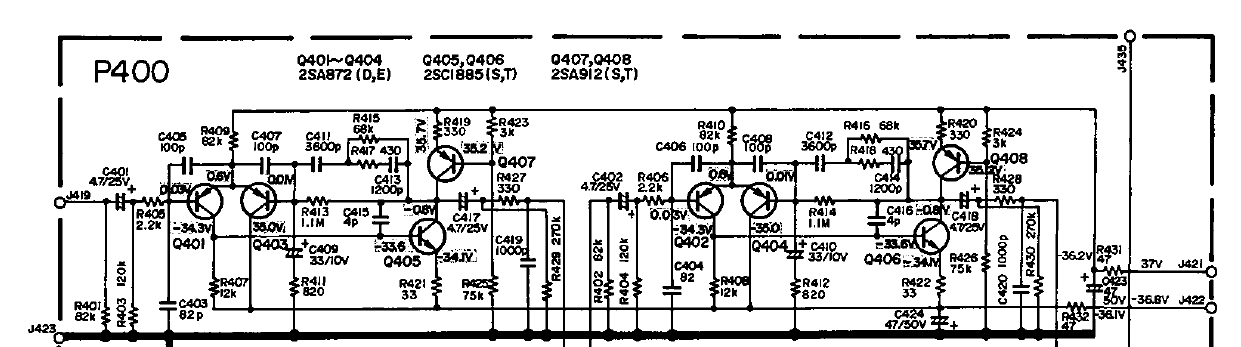

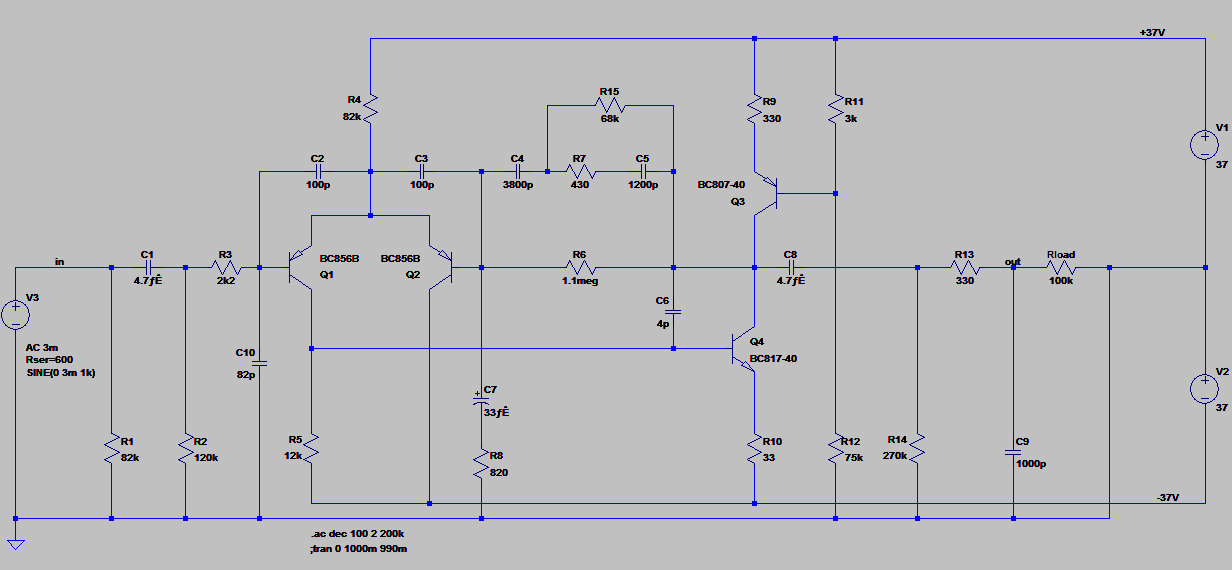

The answer is "four transistors" and "pretty damn good", respectively.

We are impressed. These Japanese engineers knew a thing or two. I would like to see some of these old circuits resurrected as discrete phono stages with modern components to see just what they are capable of.
Attached Thumbnails
Click image for larger version

Name:	Marantz SR2285B phono.png
Views:	1885
Size:	39.9 KB
ID:	917   Click image for larger version

Name:	Marantz SR2285B ps.png
Views:	3343
Size:	52.6 KB
ID:	918   Click image for larger version

Name:	Marantz SR2285B sim2.png
Views:	1683
Size:	17.9 KB
ID:	919   Click image for larger version

Name:	simluated results.png
Views:	627
Size:	32.8 KB
ID:	920
Attached Files
File Type: zip Marantz LTSPICE.zip (1.5 KB, 147 views)
Posted in The Lab
Views 2428 Comments 2
Total Comments 2


  1. Old Comment
    6L6's Avatar
    Wow, that looks simple and good!
    Are there any suitable transistors in TO-92 or something thru-hole?
    Posted 31st March 2013 at 08:49 PM by 6L6 6L6 is offline
  2. Old Comment
    rjm's Avatar
    Well, it's simple at least...

    It should also be reasonably tolerant of substitution of the transistors. TO-92 size will be fine, low noise preferable, the trick though is the originals are quite high voltage, -90 Vcbo from the front and -150 Vcbo for the rear set. Since the voltage rails total 80 V, this is not an optional requirement.

    Perhaps someone could suggest some candidates. The 2SA992 2SC1845 come to mind...
    Posted 1st April 2013 at 08:47 AM by rjm rjm is offline
