Posted 4th December 2011 at 12:41 PM by alexcp (My DIY projects)
Updated 12th May 2013 at 07:41 PM by alexcp

Someone pointed out that it's interesting to see all the components in a system, rather than discuss them individually. I liked the idea - I think it also shows what projects ended up actually useful - so here are my systems (I have four with diy components).

The music I listen to is an eclectic mix of classical music (such as Rachmaninov and Tchaikovsky), opera (mostly arias), jazz (Armstrong) and some pop music.

The first system is the one I listen to the most:
  • exposure 2010S CD player with Tentlabs low-jitter clock
  • B1 clone preamp
  • F5 clone
  • Vintage Celestion DITTON 15XR speakers

The second system is the testbed for whatever project I may be working on:
  • Audio Analogue Crescendo CD player
  • B1 clone preamp
  • Zen V4 with SiC power JFET in the gain stage
  • Klipsch Heresy III speakers

The third is the best sounding so far, has the highest WAF and is likely to stay around for some time:...
alexcp's Avatar
diyAudio Member
Posted in Uncategorized
Views 1238 Comments 3 alexcp is offline
Old

CD transport

Posted 7th July 2011 at 12:48 AM by alexcp (My DIY projects)

Built from a kit. Sound lacks finesse.
Attached Thumbnails
Click image for larger version

Name:	IMG_0393.jpg
Views:	450
Size:	65.0 KB
ID:	451   Click image for larger version

Name:	IMG_0389.jpg
Views:	962
Size:	43.8 KB
ID:	452   Click image for larger version

Name:	IMG_0388.jpg
Views:	3767
Size:	43.0 KB
ID:	453   Click image for larger version

Name:	IMG_0385.jpg
Views:	2605
Size:	55.5 KB
ID:	454   Click image for larger version

Name:	IMG_0384.jpg
Views:	1178
Size:	50.3 KB
ID:	455

Click image for larger version

Name:	IMG_0382.jpg
Views:	1181
Size:	66.0 KB
ID:	456
alexcp's Avatar
diyAudio Member
Posted in Digital Sources
Views 5766 Comments 0 alexcp is offline
Old

24/192 DAC

Posted 7th July 2011 at 12:46 AM by alexcp (My DIY projects)
Updated 16th March 2013 at 02:33 PM by alexcp

Built from a kit. I don't like the sound at all.
Attached Thumbnails
Click image for larger version

Name:	IMG_0380.jpg
Views:	334
Size:	52.5 KB
ID:	448   Click image for larger version

Name:	IMG_0378.jpg
Views:	657
Size:	56.2 KB
ID:	449   Click image for larger version

Name:	IMG_0372.jpg
Views:	655
Size:	57.0 KB
ID:	450
alexcp's Avatar
diyAudio Member
Posted in Digital Sources
Views 1902 Comments 0 alexcp is offline
Old

Grounded Grid Preamp

Posted 7th July 2011 at 12:43 AM by alexcp (My DIY projects)
Updated 16th March 2013 at 02:35 PM by alexcp

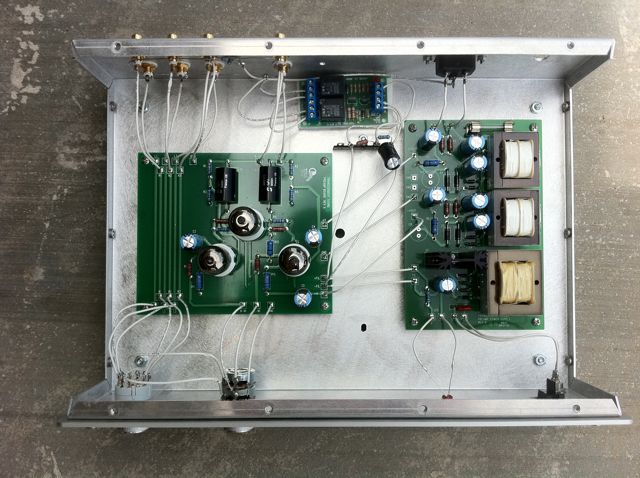

Built from the kit from Bruce Rozenblit. Very nice one, but is not being used - it has too much gain for any of my systems. I will probably sell it.
Attached Thumbnails
Click image for larger version

Name:	IMG_0368.jpg
Views:	2623
Size:	59.3 KB
ID:	445   Click image for larger version

Name:	IMG_0366.jpg
Views:	3024
Size:	59.5 KB
ID:	446   Click image for larger version

Name:	IMG_0364.jpg
Views:	1888
Size:	68.3 KB
ID:	447
alexcp's Avatar
diyAudio Member
Posted in Preamps
Views 3090 Comments 0 alexcp is offline
Old

Another Gain Clone

Posted 8th May 2011 at 02:07 AM by alexcp (My DIY projects)
Updated 7th July 2011 at 12:28 AM by alexcp (Added photos)

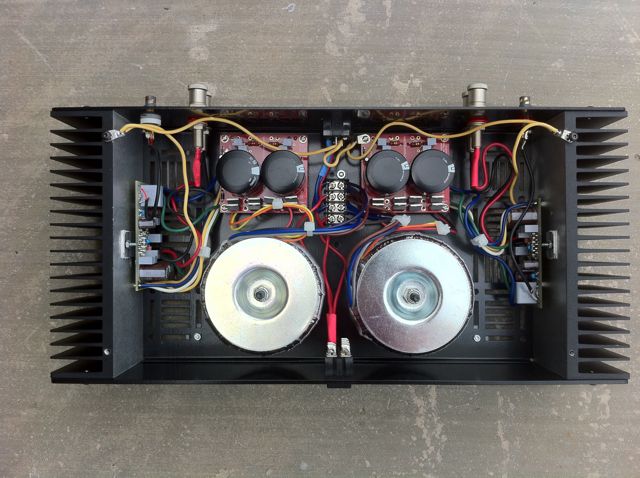

Unsatisfied with the sound of my gainclone amplifier, I re-used the enclosure and the power supply for a gainclone along the lines suggested by Bob Cordell, whose implementation of an LM3886 based amp was praised by at least one member on the NJ audio society.

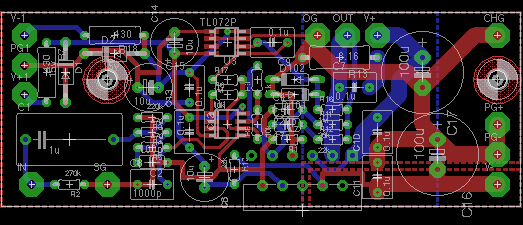

I skipped both the Klever Klipper and the toroidal air core output inductor, and kept only 10,000 uF per rail in the PSU. The schematic can be found in Chapter 27 of Cordell's Designing Audio Power Amplifiers. The PCB was designed to re-use the existing mounting holes of the ChipAmp's PCB.

The result? Better than with a plain vanilla chip amp, but still not good enough for music. Perhaps I should not have limited myself to re-use of the PSU et al. but should have taken all the details of my implementation seriously.
Attached Thumbnails
Click image for larger version

Name:	sgc_brd.png
Views:	2720
Size:	27.2 KB
ID:	361   Click image for larger version

Name:	IMG_0358.jpg
Views:	5374
Size:	63.7 KB
ID:	430   Click image for larger version

Name:	IMG_0360.jpg
Views:	7527
Size:	57.5 KB
ID:	431   Click image for larger version

Name:	IMG_0361.jpg
Views:	5581
Size:	57.8 KB
ID:	432
alexcp's Avatar
diyAudio Member
Views 6389 Comments 0 alexcp is offline
Old

Velleman K4040 mods

Posted 8th May 2011 at 12:32 AM by alexcp (My DIY projects)
Updated 4th May 2014 at 12:59 AM by alexcp

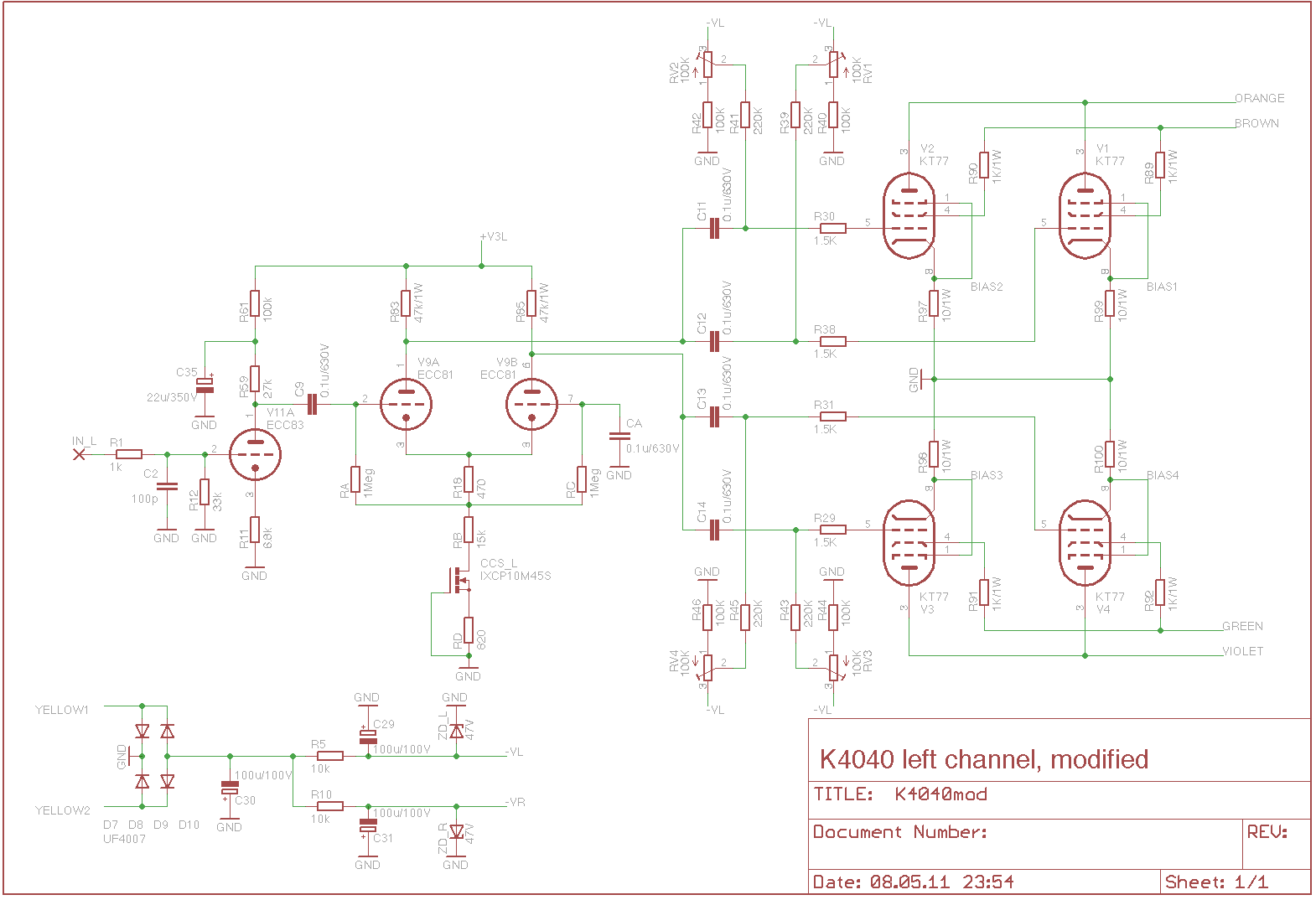

I posted some time ago a note about my Velleman K4040 amplifier. The sound of the amp as built from the kit was unremarkable and definitely not in line with the price. Lacking experience with tubes, I was looking for some time for well documented mods to the kit.

I found two 2006 posts here and here and implemented them rather directly. The only difference is that I used IXCP10M45S instead of a pair of J508 current sources in each channel and replaced the 1N5408 rectifiers with UF5408 instead of adding noise suppressing capacitors in parallel to them.

The mods did not leave much of the original Velleman design in place; the result, however, is a remarkable improvement in sound!

However, two problems remain: (1) I got hum that wasn't present before the mods; and (2) a two-year old running around doesn't get along with eight hot, attractively glowing tubes. The project is shelved until a better time.

For future reference: The toroidal...
Attached Thumbnails
Click image for larger version

Name:	K4040mod.png
Views:	5161
Size:	34.4 KB
ID:	365
alexcp's Avatar
diyAudio Member
Posted in Tube power amps
Views 6034 Comments 3 alexcp is offline
Old

Low effort Class D with ready made modules

Posted 5th April 2011 at 04:45 PM by alexcp (My DIY projects)
Updated 6th April 2011 at 01:29 PM by alexcp

To try out Class D without working too much, I picked two ready-made Class D amplifier modules: one is the $45 2*100 Watt Class-D Audio Amplifier Board from Sure Electronics with the optional $10 volume control board, the other is the $199 IRAUDAMP7S from International Rectifier.

The Sure Electronics module is based on Tripath's TK2050 chipset. Powered from a 150W 24V SMPS from Mean Well, it predictably puts out about 22W RMS to a 8 ohm load. (The declared 2*100W requires a 30V supply and a 4 ohm load.) The sound and the measurements are decidedly mediocre, although at the $45 price, the module still may be a good value. Also, the volume control board feels odd, as the knob only adjusts volume after a push; another push disconnects it again.

The IRF module requires dual rail supply, for which I chose an SMPS400A180 by hypex. With +/-40V rails, the amplifier delivers 100W RMS into a 8 ohm load. The measurements are good, and the sound is very interesting for...
alexcp's Avatar
diyAudio Member
Views 1635 Comments 0 alexcp is offline
Old

Digitally controlled class D

Posted 8th February 2011 at 08:24 PM by alexcp (My DIY projects)
Updated 17th December 2011 at 02:24 PM by alexcp

I wanted to build a Class D amp based on TI's PurePath chips - e.g. TAS5086 PWM processor and a few TAS5162 power stages - until I read Bruno Putzeys' "The Truth About Digital (Class D) Amplifiers". He makes a convincing argument that digitally controlled class D is a dead end street. I also noticed that very few people around here have been writing about PurePath. Shall I look at the UcD patent and application note, as well as ready made Hypex modules, instead?
alexcp's Avatar
diyAudio Member
Views 1513 Comments 0 alexcp is offline
Old

DCPP aka Engineer's Amplifier

Posted 8th January 2011 at 02:09 AM by alexcp (My DIY projects)

I just built a Distortion Cancelling Push Pull (DCPP) amplifier designed by Peter Millett. It sounds very nice, was fairly easy to build, and is rather inexpensive. Thank you Peter for the great design!
Attached Thumbnails
Click image for larger version

Name:	DCPP5.jpg
Views:	1446
Size:	92.7 KB
ID:	308   Click image for larger version

Name:	DCPP3.jpg
Views:	1452
Size:	68.5 KB
ID:	309   Click image for larger version

Name:	DCPP1.jpg
Views:	1559
Size:	56.8 KB
ID:	310
alexcp's Avatar
diyAudio Member
Posted in Tube power amps
Views 2729 Comments 0 alexcp is offline
Old

Burning Amp 1

Posted 9th October 2010 at 06:52 AM by alexcp (My DIY projects)
Updated 16th March 2013 at 02:40 PM by alexcp

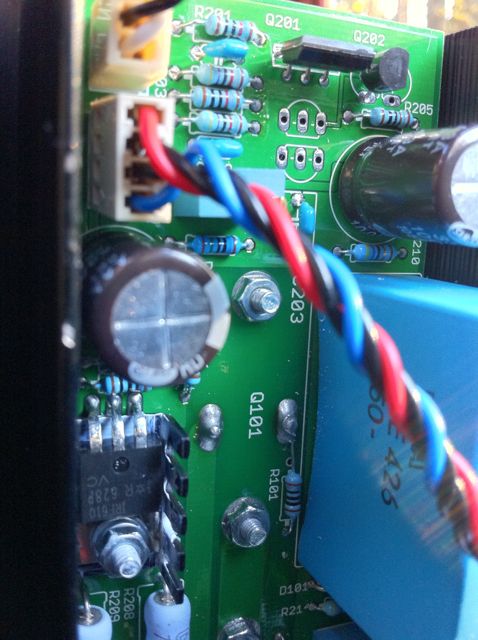

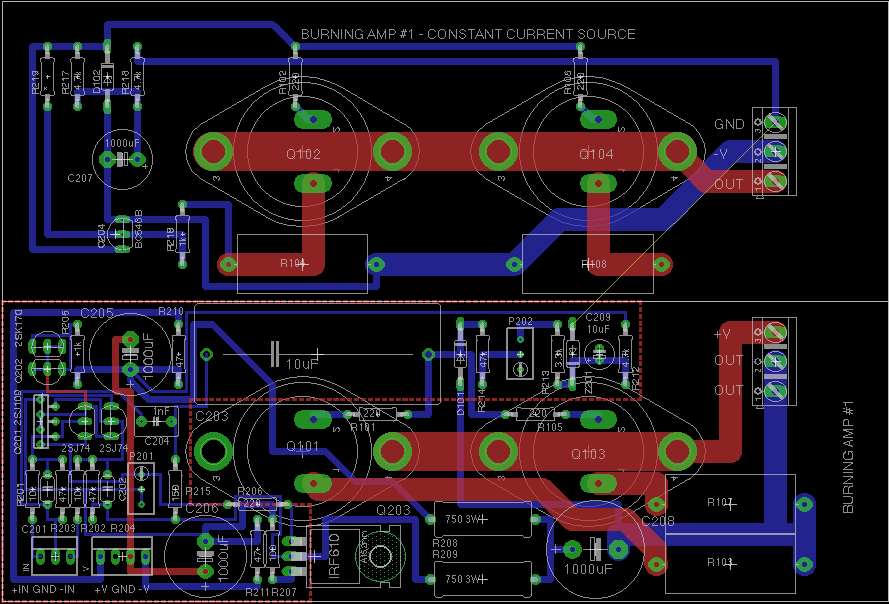

To get warm and comfortable on long winter evenings, I built myself a Burning Amplifier 1. With its 300W quiescent dissipation and ineffable ((c) Nelson Pass) sound, it is a nice winter time companion.

I used four heatsinks, each holdings two IRF250 MOSFETs in TO-3 packages and a PCB. Each pair of heatsinks is cooled by a quiet 140mm fan. Power supply uses a 400W toroidal transformer and 2x40,000 uF per channel; it is a dual mono configuration. The amplifier is housed in a 5U 400mm deep enclosure from modushop. Their "pierced base" was very handy to keep all the parts together without sacrificing the looks. Total weight is 23 kg (about 50 pounds).

The knob on the front panel was designed as volume control, but it looks ugly, so I will remove it.
Attached Thumbnails
Click image for larger version

Name:	IMG_0036.jpg
Views:	1575
Size:	70.5 KB
ID:	263   Click image for larger version

Name:	IMG_0032.jpg
Views:	964
Size:	57.7 KB
ID:	265   Click image for larger version

Name:	IMG_0026.jpg
Views:	1011
Size:	56.7 KB
ID:	267   Click image for larger version

Name:	IMG_0024.jpg
Views:	4140
Size:	86.3 KB
ID:	268   Click image for larger version

Name:	IMG_0022.jpg
Views:	898
Size:	88.6 KB
ID:	269

Click image for larger version

Name:	BA1.png
Views:	2295
Size:	46.7 KB
ID:	270
alexcp's Avatar
diyAudio Member
Views 5264 Comments 1 alexcp is offline
