Active elliptic - practical implementation

Posted 20th April 2013 at 09:33 AM by abraxalito

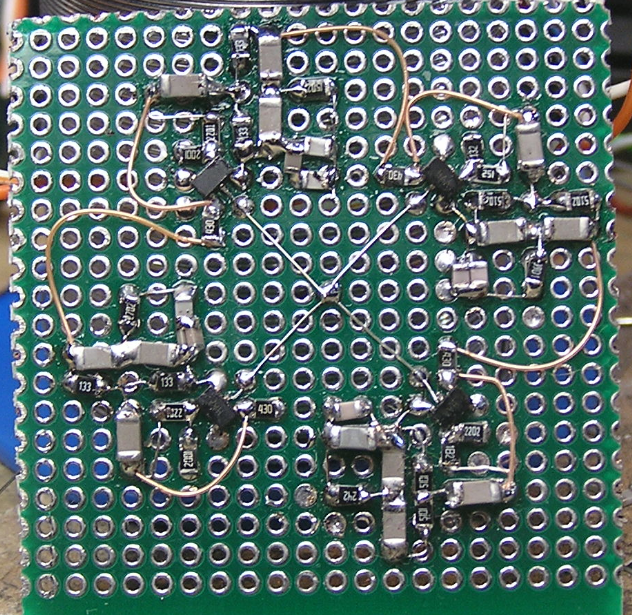

Here's the first channel under construction on 2mm pitch double-sided proto board. The opamps in this instance are AD8014 in SOT23-5 packages, hence the choice of the 2mm pitch board. Power supplies will go on another board to be attached to the reverse side.
